Indigo2 (R4400, 150MHz) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
indigo2_4415	sgi/indy_indigo2.cpp		no	no	no	yes	Indigo2 (R4400, 150MHz)	1993	Silicon Graphics Inc

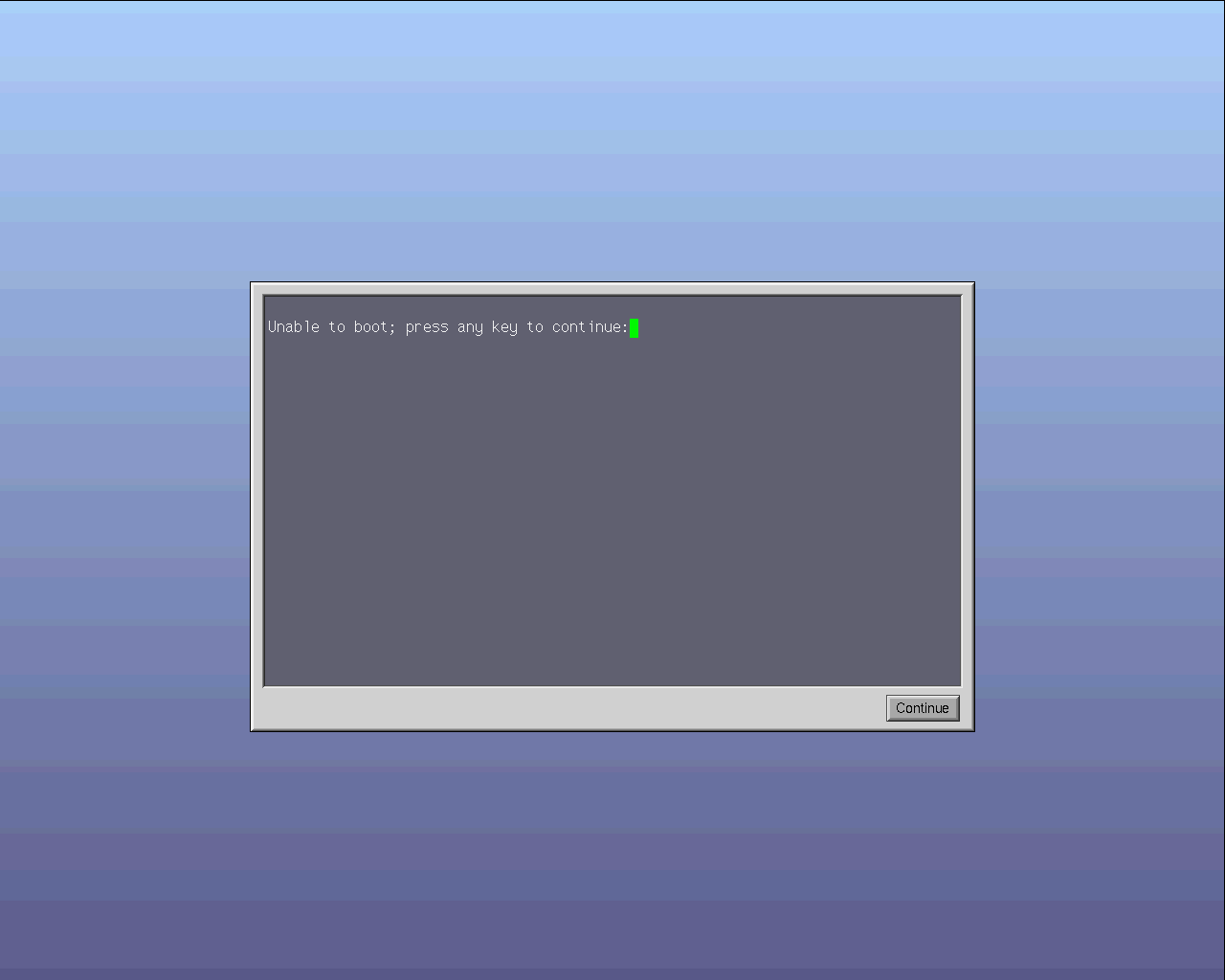

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
indigo2_4415	9984	29/12/2025 11:31:24	1280	1024	96	96	0	Format24bppRgb	305:MAME 0.203 (Oct 31 2018)	0366adf68c35e4f53ff6bf6da4aef45734d27e5b

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
gio64_gfx:xl24:screen	raster	0	1280	1024	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ip22prom.070-1367-012.bin	524288	54460c16	330d87b3a02a05fb49c85a569f6f84904587cb35	user1	0	good	no		e
ip22prom.070-1367-002.bin	524288	ae5ecd08	422568ae95282ee23b2fe123267f9b915a1dc3dc	user1	0	good	no		b4

chip

type	tag	name	clock
cpu	maincpu	MIPS R4400 (big)	150000000
cpu	ioc2:kbd:ms_naturl:ms_natrl_cpu	Intel 8051	6000000
cpu	ioc2:kbdc:mcu	Intel 8042AH	12000000
audio	scsibus:6:cdrom:cdda	CD/DA	44100
audio	hal2:speaker	Speaker
audio	hal2:ldac	16-Bit R-2R Twos Complement DAC
audio	hal2:rdac	16-Bit R-2R Twos Complement DAC

softwarelist

tag	name	status	filter
sgi_mips	sgi_mips	original
sgi_mips_hdd	sgi_mips_hdd	original

device_ref

tag	name
:maincpu	r4400be
:memctrl	sgi_mc
:scsibus	nscsi_bus
:scsibus:0	nscsi_connector
:scsibus:0:wd33c93	wd33c93b
:scsibus:1	nscsi_connector
:scsibus:1:harddisk	scsi_harddisk
:scsibus:1:harddisk:image	harddisk_image
:scsibus:2	nscsi_connector
:scsibus:3	nscsi_connector
:scsibus:4	nscsi_connector
:scsibus:5	nscsi_connector
:scsibus:6	nscsi_connector
:scsibus:6:cdrom	scsi_cdrom_sgi
:scsibus:6:cdrom:image	cdrom_image
:scsibus:6:cdrom:cdda	cdda
:scsibus:7	nscsi_connector
:gio64	gio64
:gio64_gfx	gio64_slot
:gio64_gfx:xl24	gio64_xl24
:gio64_gfx:xl24:vc2	vc2
:gio64_gfx:xl24:screen	screen
:gio64_gfx:xl24:xmap0	xmap9
:gio64_gfx:xl24:xmap1	xmap9
:gio64_gfx:xl24:cmap0	cmap
:gio64_gfx:xl24:cmap1	cmap
:gio64_gfx:xl24:rb2	rb2
:gio64_exp0	gio64_slot
:gio64_exp1	gio64_slot
:hpc3	hpc3
:edlc	seeq80c03
:edlc:regbank	address_map_bank
:hal2	hal2
:hal2:speaker	speaker
:hal2:ldac	dac_16bit_r2r_tc
:hal2:rdac	dac_16bit_r2r_tc
:eeprom	93c56_16
:sgi_mips	software_list
:sgi_mips_hdd	software_list
:scsibus2	nscsi_bus
:scsibus2:0	nscsi_connector
:scsibus2:0:wd33c93	wd33c93b
:scsibus2:1	nscsi_connector
:scsibus2:2	nscsi_connector
:scsibus2:3	nscsi_connector
:scsibus2:4	nscsi_connector
:scsibus2:5	nscsi_connector
:scsibus2:6	nscsi_connector
:scsibus2:7	nscsi_connector
:ioc2	ioc2f
:ioc2:scc	scc85230
:ioc2:scc:cha	z80scc_channel
:ioc2:scc:chb	z80scc_channel
:ioc2:rs232a	rs232
:ioc2:rs232b	rs232
:ioc2:pi1	pc_lpt
:ioc2:pi1:centronics	centronics
:ioc2:pi1:centronics:printer	centronics_printer
:ioc2:pi1:centronics:printer:printer	printer_image
:ioc2:pi1:cent_data_in	input_buffer
:ioc2:pi1:cent_ctrl_in	input_buffer
:ioc2:pi1:cent_status_in	input_buffer
:ioc2:pi1:cent_data_out	output_latch
:ioc2:pi1:cent_ctrl_out	output_latch
:ioc2:kbd	pc_kbdc
:ioc2:kbd:ms_naturl	kb_ms_natural
:ioc2:kbd:ms_naturl:ms_natrl_cpu	i8051
:ioc2:aux	pc_kbdc
:ioc2:aux:hle_ps2_mouse	hle_ps2_mouse
:ioc2:kbdc	ps2_keybc
:ioc2:kbdc:mcu	i8042ah
:ioc2:kbdc_irq	ipt_merge_any_hi
:ioc2:pit	pit8254
:ioc2:pit:counter0	pit_counter
:ioc2:pit:counter1	pit_counter
:ioc2:pit:counter2	pit_counter
:rtc	ds1286

biosset

name	description	default
e	Version 5.3 Rev E R4X00 Jan 29, 1996	no
b4	Version 5.1.2 Rev B4 R4X00 Dec 9, 1993	no

sound

channels
1

device, instance

type	tag	interface	name	briefname
harddisk	scsibus:1:harddisk:image	scsi_hdd,hdd	harddisk	hard
cdrom	scsibus:6:cdrom:image	cdrom	cdrom	cdrm
printout	ioc2:pi1:centronics:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
harddisk	scsibus:1:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	scsibus:6:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
printout	ioc2:pi1:centronics:printer:printer		prn

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	reverse	minimum	maximum	sensitivity
keypad	1	3	no
keyboard	1	108	no
mouse	2	3	no	0	65535	100

port, analog

port_tag	analog_masks
:ioc2:aux:hle_ps2_mouse:mouse_buttons
:ioc2:aux:hle_ps2_mouse:mouse_x_axis	65535
:ioc2:aux:hle_ps2_mouse:mouse_y_axis	65535
:ioc2:kbd:ms_naturl:P1.0
:ioc2:kbd:ms_naturl:P1.1
:ioc2:kbd:ms_naturl:P1.2
:ioc2:kbd:ms_naturl:P1.3
:ioc2:kbd:ms_naturl:P1.4
:ioc2:kbd:ms_naturl:P1.5
:ioc2:kbd:ms_naturl:P1.6
:ioc2:kbd:ms_naturl:P1.7
:ioc2:kbd:ms_naturl:P2.0
:ioc2:kbd:ms_naturl:P2.1
:ioc2:kbd:ms_naturl:P2.2
:ioc2:kbd:ms_naturl:P2.3
:ioc2:kbd:ms_naturl:P2.4
:ioc2:kbd:ms_naturl:P2.5
:ioc2:kbd:ms_naturl:P2.6
:ioc2:kbd:ms_naturl:P2.7
:ioc2:panel_buttons
:memctrl:SIMMS
:memctrl:VALID

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
scsibus:1	harddisk	scsi_harddisk	yes
scsibus:1	cdrom	scsi_cdrom_sgi	no
scsibus:2	harddisk	scsi_harddisk	no
scsibus:2	cdrom	scsi_cdrom_sgi	no
scsibus:3	harddisk	scsi_harddisk	no
scsibus:3	cdrom	scsi_cdrom_sgi	no
scsibus:4	harddisk	scsi_harddisk	no
scsibus:4	cdrom	scsi_cdrom_sgi	no
scsibus:5	harddisk	scsi_harddisk	no
scsibus:5	cdrom	scsi_cdrom_sgi	no
scsibus:6	harddisk	scsi_harddisk	no
scsibus:6	cdrom	scsi_cdrom_sgi	yes
scsibus:7	harddisk	scsi_harddisk	no
scsibus:7	cdrom	scsi_cdrom_sgi	no
gio64_gfx	xl24	gio64_xl24	yes
gio64_gfx	xl8	gio64_xl8	no
gio64_exp0	xl24	gio64_xl24	no
gio64_exp0	xl8	gio64_xl8	no
gio64_exp1	xl24	gio64_xl24	no
gio64_exp1	xl8	gio64_xl8	no
scsibus2:1	harddisk	scsi_harddisk	no
scsibus2:1	cdrom	scsi_cdrom_sgi	no
scsibus2:2	harddisk	scsi_harddisk	no
scsibus2:2	cdrom	scsi_cdrom_sgi	no
scsibus2:3	harddisk	scsi_harddisk	no
scsibus2:3	cdrom	scsi_cdrom_sgi	no
scsibus2:4	harddisk	scsi_harddisk	no
scsibus2:4	cdrom	scsi_cdrom_sgi	no
scsibus2:5	harddisk	scsi_harddisk	no
scsibus2:5	cdrom	scsi_cdrom_sgi	no
scsibus2:6	harddisk	scsi_harddisk	no
scsibus2:6	cdrom	scsi_cdrom_sgi	no
scsibus2:7	harddisk	scsi_harddisk	no
scsibus2:7	cdrom	scsi_cdrom_sgi	no
ioc2:rs232a	terminal	serial_terminal	no
ioc2:rs232a	sunkbd	sunkbd_adaptor	no
ioc2:rs232a	votraxtnt	serial_votraxtnt	no
ioc2:rs232a	rs_printer	rs_serial_printer	no
ioc2:rs232a	dec_loopback	dec_rs232_loopback	no
ioc2:rs232a	h19	serial_heath_h19	no
ioc2:rs232a	ie15	ie15_terminal	no
ioc2:rs232a	null_modem	null_modem	no
ioc2:rs232a	keyboard	serial_keyboard	no
ioc2:rs232a	patch	rs232_patch_box	no
ioc2:rs232a	swtpc8212	swtpc8212_terminal	no
ioc2:rs232a	printer	serial_printer	no
ioc2:rs232a	scorpion	scorpion_ic	no
ioc2:rs232a	loopback	rs232_loopback	no
ioc2:rs232a	mockingboard	mockingboardd	no
ioc2:rs232a	msystems_mouse	rs232_mouse_hle_msystems	no
ioc2:rs232a	nss_tvi	nss_tvinterface	no
ioc2:rs232a	rs232_sync_io	rs232_sync_io	no
ioc2:rs232a	pty	pseudo_terminal	no
ioc2:rs232b	terminal	serial_terminal	no
ioc2:rs232b	sunkbd	sunkbd_adaptor	no
ioc2:rs232b	votraxtnt	serial_votraxtnt	no
ioc2:rs232b	rs_printer	rs_serial_printer	no
ioc2:rs232b	dec_loopback	dec_rs232_loopback	no
ioc2:rs232b	h19	serial_heath_h19	no
ioc2:rs232b	ie15	ie15_terminal	no
ioc2:rs232b	null_modem	null_modem	no
ioc2:rs232b	keyboard	serial_keyboard	no
ioc2:rs232b	patch	rs232_patch_box	no
ioc2:rs232b	swtpc8212	swtpc8212_terminal	no
ioc2:rs232b	printer	serial_printer	no
ioc2:rs232b	scorpion	scorpion_ic	no
ioc2:rs232b	loopback	rs232_loopback	no
ioc2:rs232b	mockingboard	mockingboardd	no
ioc2:rs232b	msystems_mouse	rs232_mouse_hle_msystems	no
ioc2:rs232b	nss_tvi	nss_tvinterface	no
ioc2:rs232b	rs232_sync_io	rs232_sync_io	no
ioc2:rs232b	pty	pseudo_terminal	no
ioc2:pi1:centronics	nlq401	nlq401	no
ioc2:pi1:centronics	smartboard	centronics_smartboard	no
ioc2:pi1:centronics	chessmec	centronics_chessmec	no
ioc2:pi1:centronics	samdac	centronics_samdac	no
ioc2:pi1:centronics	covox_stereo	covox_stereo	no
ioc2:pi1:centronics	adaptator	adaptator_multitap	no
ioc2:pi1:centronics	digiblst	cpcdigiblst	no
ioc2:pi1:centronics	lx800	lx800	no
ioc2:pi1:centronics	jx80	epson_jx80	no
ioc2:pi1:centronics	ap2000	ap2000	no
ioc2:pi1:centronics	ex800	ex800	no
ioc2:pi1:centronics	fx80	epson_fx80	no
ioc2:pi1:centronics	rx80	epson_rx80	no
ioc2:pi1:centronics	mz1p16	mz1p16	no
ioc2:pi1:centronics	covox	covox	no
ioc2:pi1:centronics	pl80	comx_pl80	no
ioc2:pi1:centronics	lx810l	lx810l	no
ioc2:pi1:centronics	p72	p72	no
ioc2:pi1:centronics	printer	centronics_printer	yes
ioc2:kbd	g80_1500	g80_1500	no
ioc2:kbd	pcat101	kb_pcat101	no
ioc2:kbd	pcat	kb_pcat84	no
ioc2:kbd	ms_naturl	kb_ms_natural	yes
ioc2:kbd	3270pc	kb_3270pc	no
ioc2:kbd	keytronc_pc3270	keytronic_pc3270_at	no
ioc2:aux	hle_ps2_mouse	hle_ps2_mouse	yes

configuration

RAM bank A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RAM bank A	memctrl:SIMMS	15	VALID	1	eq	1

setting

name	value	default
Empty	0	no
4x1M	1	no
4x2M	10	no
4x4M	3	yes
4x8M	12	no
4x16M	5	no
4x32M	14	no

RAM bank B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RAM bank B	memctrl:SIMMS	240	VALID	2	eq	2

setting

name	value	default
Empty	0	yes
4x1M	16	no
4x2M	160	no
4x4M	48	no
4x8M	192	no
4x16M	80	no
4x32M	224	no

RAM bank C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RAM bank C	memctrl:SIMMS	3840	VALID	4	eq	4

setting

name	value	default
Empty	0	yes
4x1M	256	no
4x2M	2560	no
4x4M	768	no
4x8M	3072	no
4x16M	1280	no
4x32M	3584	no

RAM bank D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
RAM bank D	memctrl:SIMMS	61440	VALID	8	eq	8

setting

name	value	default
Empty	0	yes
4x1M	4096	no
4x2M	40960	no
4x4M	12288	no
4x8M	49152	no
4x16M	20480	no
4x32M	57344	no

Valid Banks

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Valid Banks	memctrl:VALID	15
