InterPro/InterServe 28x0 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ip2800	intergraph/interpro.cpp		no	no	no	yes	InterPro/InterServe 28x0	1994	Intergraph

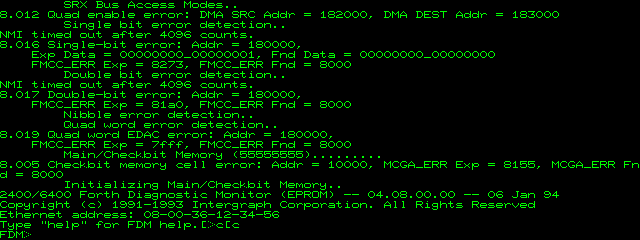

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ip2800	8842	29/12/2025 11:31:24	640	240	96	96	0	Format24bppRgb	305:MAME 0.183 (Feb 22 2017)	4c2ac64dcb1c4e68dfd1f4f3143cdf2488fa0d7a

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
slot:0:msmt070:screen0	raster	0	1184	884	75.966775	105561000	1472	284	1468	944	57	941	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	yes	no

rom

name	size	crc	sha1	region	status	optional	bios
ip2800_eprom.bin	131072	467ce7bd	53faee40d5df311f53b24c930e434cbf94a5c4aa	eprom	good	no	ip2800
msmt1450.bin	32	61c7a305	efcd045cbdfda8df44eaad761b0ba99367973cd7	idprom	good	no
y226.u67	131072	46c0b105	7c4a104e4fb3d0e5e8db7c911cdfb3f5c4fb0218	flash_lsb	good	yes
y225.u76	131072	54d95730	a4e114dee1567d8aa31eed770f7cc366588f395c	flash_msb	good	yes

chip

type	tag	name	clock
cpu	cpu	C400 CLIPPER	12500000
cpu	kbd:lle_en_us:mcu	Intel 8049	11000000
audio	scsi:4:cdrom:cdda	CD/DA	44100
audio	fdc:1:35hd:flopsndout	Speaker
audio	fdc:1:35hd:floppysound	Floppy sound	44100
audio	kbd:lle_en_us:keyboard	Speaker
audio	kbd:lle_en_us:speaker	Filtered DAC

softwarelist

tag	name	status	filter
softlist	interpro	original	2800

device_ref

tag	name
:ram	ram
:sga	sga
:rtc	mc146818
:scsi	nscsi_bus
:scsi:0	nscsi_connector
:scsi:0:harddisk	scsi_harddisk
:scsi:0:harddisk:image	harddisk_image
:scsi:4	nscsi_connector
:scsi:4:cdrom	scsi_cdrom
:scsi:4:cdrom:image	cdrom_image
:scsi:4:cdrom:cdda	cdda
:scsi:1	nscsi_connector
:scsi:2	nscsi_connector
:scsi:3	nscsi_connector
:scsi:5	nscsi_connector
:scsi:6	nscsi_connector
:softlist	software_list
:cpu	clipper_c400
:cammu	c4i
:mcga	fmcc
:fdc	n82077aa
:fdc:1	floppy_connector
:fdc:1:35hd	floppy_35_hd
:fdc:1:35hd:flopsndout	speaker
:fdc:1:35hd:floppysound	flopsnd
:arbga	arbga
:scc1	scc85230
:scc1:cha	z80scc_channel
:scc1:chb	z80scc_channel
:scc2	scc85c30
:scc2:cha	z80scc_channel
:scc2:chb	z80scc_channel
:scc_int	ipt_merge_any_hi
:serial1	rs232
:serial2	rs232
:serial0	rs232
:host	ncr53c94
:eth	i82596sx_le
:ioga	ioga_s
:flash_lsb	intel_28f010
:flash_msb	intel_28f010
:kbd	interpro_keyboard_port
:kbd:lle_en_us	kbd_lle_en_us
:kbd:lle_en_us:mcu	i8049
:kbd:lle_en_us:ext	address_map_bank
:kbd:lle_en_us:keyboard	speaker
:kbd:lle_en_us:speaker	speaker_sound_device
:mse	interpro_mouse_port
:mse:interpro_mouse	interpro_mouse
:slot	cbus_bus
:slot:0	cbus_slot
:slot:0:msmt070	msmt070
:slot:0:msmt070:bpu0	dp8510
:slot:0:msmt070:bpu1	dp8510
:slot:0:msmt070:screen0	screen
:slot:0:msmt070:ramdac0	bt459
:slot:0:msmt070:vram0	ram
:slot:0:msmt070:mram0	ram
:slot:1	cbus_slot

biosset

name	description	default
ip2800	InterPro/InterServe 28x0 EPROM	no

sound

channels
2

ramoption

name	default
32M
64M
128M
256M
16M	yes

device, instance

type	tag	interface	name	briefname
harddisk	scsi:0:harddisk:image	scsi_hdd,hdd	harddisk	hard
cdrom	scsi:4:cdrom:image	cdrom	cdrom	cdrm
floppydisk	fdc:1:35hd	floppy_3_5	floppydisk	flop

device, extension

type	tag	interface	extension_names
harddisk	scsi:0:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	scsi:4:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
floppydisk	fdc:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		3		no	0	255	50
keyboard		145		no

port, analog

port_tag	analog_masks
:kbd:lle_en_us:lower.0
:kbd:lle_en_us:lower.1
:kbd:lle_en_us:lower.2
:kbd:lle_en_us:lower.3
:kbd:lle_en_us:lower.4
:kbd:lle_en_us:lower.5
:kbd:lle_en_us:lower.6
:kbd:lle_en_us:lower.7
:kbd:lle_en_us:lower.8
:kbd:lle_en_us:lower.9
:kbd:lle_en_us:lower.a
:kbd:lle_en_us:upper.0
:kbd:lle_en_us:upper.1
:kbd:lle_en_us:upper.2
:kbd:lle_en_us:upper.3
:kbd:lle_en_us:upper.4
:kbd:lle_en_us:upper.5
:kbd:lle_en_us:upper.6
:kbd:lle_en_us:upper.7
:kbd:lle_en_us:upper.8
:kbd:lle_en_us:upper.9
:kbd:lle_en_us:upper.a
:kbd:lle_en_us:upper.b
:kbd:lle_en_us:upper.c
:kbd:lle_en_us:upper.d
:kbd:lle_en_us:upper.e
:mse:interpro_mouse:mouse_buttons
:mse:interpro_mouse:mouse_x	255
:mse:interpro_mouse:mouse_y	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
scsi:0	cdrom	scsi_cdrom	no
scsi:0	harddisk	scsi_harddisk	yes
scsi:4	cdrom	scsi_cdrom	yes
scsi:4	harddisk	scsi_harddisk	no
scsi:1	cdrom	scsi_cdrom	no
scsi:1	harddisk	scsi_harddisk	no
scsi:2	cdrom	scsi_cdrom	no
scsi:2	harddisk	scsi_harddisk	no
scsi:3	cdrom	scsi_cdrom	no
scsi:3	harddisk	scsi_harddisk	no
scsi:5	cdrom	scsi_cdrom	no
scsi:5	harddisk	scsi_harddisk	no
scsi:6	cdrom	scsi_cdrom	no
scsi:6	harddisk	scsi_harddisk	no
fdc:1	35hd	floppy_35_hd	yes
serial1	terminal	serial_terminal	no
serial1	sunkbd	sunkbd_adaptor	no
serial1	votraxtnt	serial_votraxtnt	no
serial1	rs_printer	rs_serial_printer	no
serial1	dec_loopback	dec_rs232_loopback	no
serial1	h19	serial_heath_h19	no
serial1	ie15	ie15_terminal	no
serial1	null_modem	null_modem	no
serial1	keyboard	serial_keyboard	no
serial1	patch	rs232_patch_box	no
serial1	swtpc8212	swtpc8212_terminal	no
serial1	printer	serial_printer	no
serial1	scorpion	scorpion_ic	no
serial1	loopback	rs232_loopback	no
serial1	mockingboard	mockingboardd	no
serial1	msystems_mouse	rs232_mouse_hle_msystems	no
serial1	nss_tvi	nss_tvinterface	no
serial1	rs232_sync_io	rs232_sync_io	no
serial1	pty	pseudo_terminal	no
serial2	terminal	serial_terminal	no
serial2	sunkbd	sunkbd_adaptor	no
serial2	votraxtnt	serial_votraxtnt	no
serial2	rs_printer	rs_serial_printer	no
serial2	dec_loopback	dec_rs232_loopback	no
serial2	h19	serial_heath_h19	no
serial2	ie15	ie15_terminal	no
serial2	null_modem	null_modem	no
serial2	keyboard	serial_keyboard	no
serial2	patch	rs232_patch_box	no
serial2	swtpc8212	swtpc8212_terminal	no
serial2	printer	serial_printer	no
serial2	scorpion	scorpion_ic	no
serial2	loopback	rs232_loopback	no
serial2	mockingboard	mockingboardd	no
serial2	msystems_mouse	rs232_mouse_hle_msystems	no
serial2	nss_tvi	nss_tvinterface	no
serial2	rs232_sync_io	rs232_sync_io	no
serial2	pty	pseudo_terminal	no
serial0	terminal	serial_terminal	no
serial0	sunkbd	sunkbd_adaptor	no
serial0	votraxtnt	serial_votraxtnt	no
serial0	rs_printer	rs_serial_printer	no
serial0	dec_loopback	dec_rs232_loopback	no
serial0	h19	serial_heath_h19	no
serial0	ie15	ie15_terminal	no
serial0	null_modem	null_modem	no
serial0	keyboard	serial_keyboard	no
serial0	patch	rs232_patch_box	no
serial0	swtpc8212	swtpc8212_terminal	no
serial0	printer	serial_printer	no
serial0	scorpion	scorpion_ic	no
serial0	loopback	rs232_loopback	no
serial0	mockingboard	mockingboardd	no
serial0	msystems_mouse	rs232_mouse_hle_msystems	no
serial0	nss_tvi	nss_tvinterface	no
serial0	rs232_sync_io	rs232_sync_io	no
serial0	pty	pseudo_terminal	no
kbd	lle_en_us	kbd_lle_en_us	yes
kbd	hle_en_us	kbd_hle_en_us	no
mse	interpro_mouse	interpro_mouse	yes
slot:0	msmt081	msmt081	no
slot:0	msmt071	msmt071	no
slot:0	msmt070	msmt070	yes
slot:0	mpcba79	mpcba79	no
slot:0	mpcb963	mpcb963	no
slot:1	msmt081	msmt081	no
slot:1	msmt071	msmt071	no
slot:1	msmt070	msmt070	no
slot:1	mpcba79	mpcba79	no
slot:1	mpcb963	mpcb963	no
