InterPro/InterServe 68x0 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ip6800	intergraph/interpro.cpp		no	no	no	yes	InterPro/InterServe 68x0	1993	Intergraph

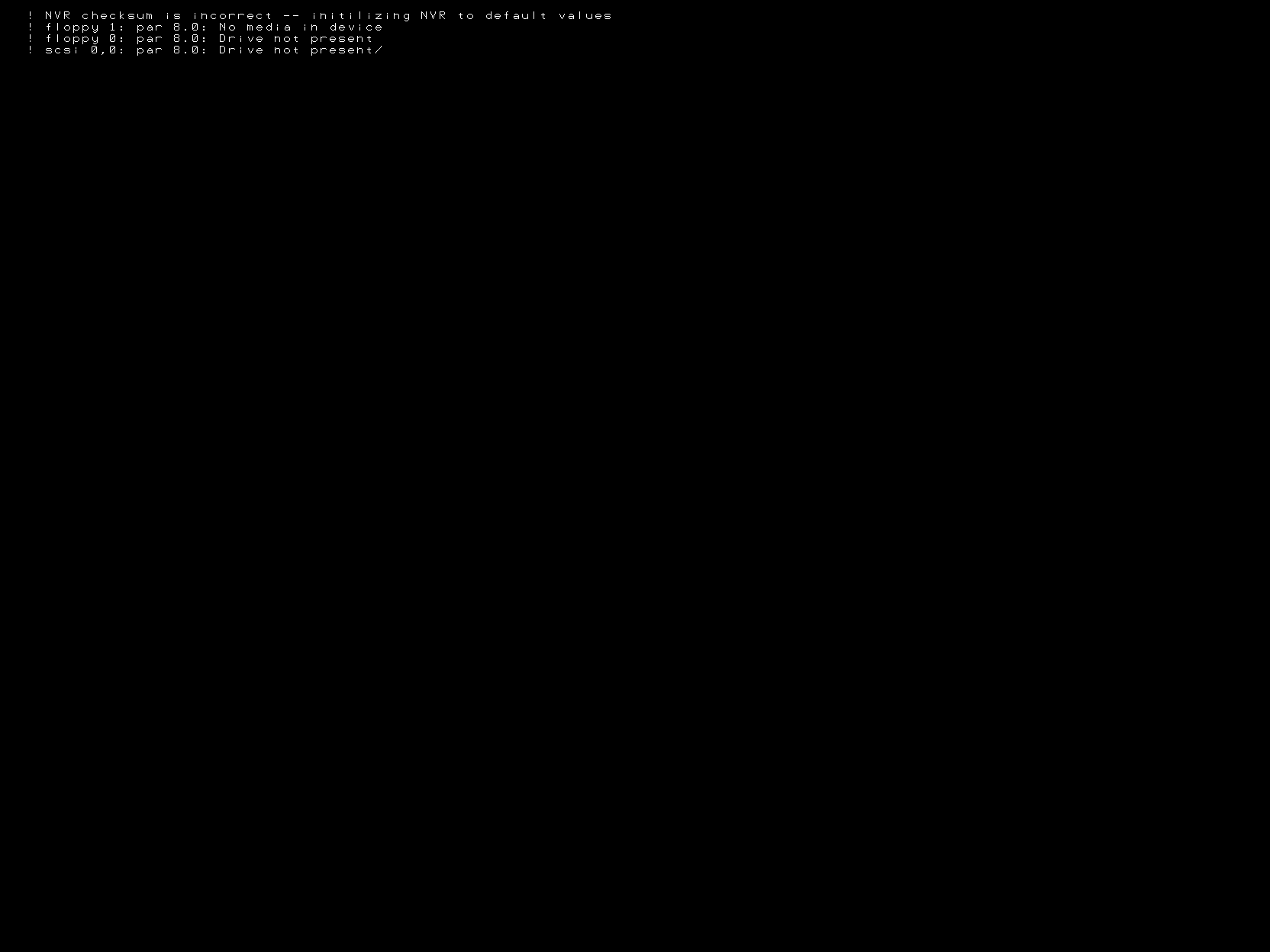

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ip6800	8761	29/12/2025 11:31:24	1664	1248	96	96	0	Format24bppRgb	305:MAME 0.198 (May 30 2018)	5adeb5124ca19b1a333b8c5a947c09e66350e411

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
slot:4:mpcb896:screen	raster	0	1664	1248	60.000007	164609300	2112	0	1664	1299	0	1248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	yes	no

rom

name	size	crc	sha1	region	status	optional	bios
mprgz530a__9406270.u144	131072	467ce7bd	53faee40d5df311f53b24c930e434cbf94a5c4aa	eprom	good	no	ip6800
msmt127b.bin	32	cc112f65	8533a31b4733fd91bb87effcd276fc93f2858629	idprom	good	no
y226.u130	131072	46c0b105	7c4a104e4fb3d0e5e8db7c911cdfb3f5c4fb0218	flash_lsb	good	yes
y225.u117	131072	54d95730	a4e114dee1567d8aa31eed770f7cc366588f395c	flash_msb	good	yes

chip

type	tag	name	clock
cpu	cpu	C400 CLIPPER	12500000
cpu	slot:3:msmt094:dsp1	Texas Instruments TMS320C30	33333000
audio	scsi:4:cdrom:cdda	CD/DA	44100
audio	fdc:1:35hd:flopsndout	Speaker
audio	fdc:1:35hd:floppysound	Floppy sound	44100
audio	slot:3:msmt094:kbd:hle_en_us:bell	Speaker
audio	slot:3:msmt094:kbd:hle_en_us:beeper	Beep	2083

softwarelist

tag	name	status	filter
softlist	interpro	original	6800

device_ref

tag	name
:ram	ram
:sga	sga
:rtc	mc146818
:scsi	nscsi_bus
:scsi:0	nscsi_connector
:scsi:0:harddisk	scsi_harddisk
:scsi:0:harddisk:image	harddisk_image
:scsi:4	nscsi_connector
:scsi:4:cdrom	scsi_cdrom
:scsi:4:cdrom:image	cdrom_image
:scsi:4:cdrom:cdda	cdda
:scsi:1	nscsi_connector
:scsi:2	nscsi_connector
:scsi:3	nscsi_connector
:scsi:5	nscsi_connector
:scsi:6	nscsi_connector
:softlist	software_list
:cpu	clipper_c400
:cammu	c4i
:mcga	fmcc
:fdc	n82077aa
:fdc:1	floppy_connector
:fdc:1:35hd	floppy_35_hd
:fdc:1:35hd:flopsndout	speaker
:fdc:1:35hd:floppysound	flopsnd
:arbga	arbga
:scc1	scc85230
:scc1:cha	z80scc_channel
:scc1:chb	z80scc_channel
:scc2	scc85c30
:scc2:cha	z80scc_channel
:scc2:chb	z80scc_channel
:scc_int	ipt_merge_any_hi
:serial1	rs232
:serial2	rs232
:serial0	rs232
:host	ncr53c94
:eth	i82596sx_le
:ioga	ioga_s
:flash_lsb	intel_28f010
:flash_msb	intel_28f010
:slot	srx_bus
:slot:1	srx_slot
:slot:2	srx_slot
:slot:3	srx_slot
:slot:3:msmt094	msmt094
:slot:3:msmt094:dsp1	tms320c30
:slot:3:msmt094:ram	ram
:slot:3:msmt094:scc	scc8530
:slot:3:msmt094:scc:cha	z80scc_channel
:slot:3:msmt094:scc:chb	z80scc_channel
:slot:3:msmt094:kbd	interpro_keyboard_port
:slot:3:msmt094:kbd:hle_en_us	kbd_hle_en_us
:slot:3:msmt094:kbd:hle_en_us:bell	speaker
:slot:3:msmt094:kbd:hle_en_us:beeper	beep
:slot:4	srx_slot
:slot:4:mpcb896	mpcb896
:slot:4:mpcb896:screen	screen
:slot:4:mpcb896:sram	ram
:slot:4:mpcb896:vram	ram
:slot:4:mpcb896:ramdac0	bt457
:slot:4:mpcb896:ramdac1	bt457
:slot:4:mpcb896:ramdac2	bt457

biosset

name	description	default
ip6800	InterPro/InterServe 68x0 EPROM	no

sound

channels
2

ramoption

name	default
32M
64M
128M
256M
16M	yes

device, instance

type	tag	interface	name	briefname
harddisk	scsi:0:harddisk:image	scsi_hdd,hdd	harddisk	hard
cdrom	scsi:4:cdrom:image	cdrom	cdrom	cdrm
floppydisk	fdc:1:35hd	floppy_3_5	floppydisk	flop

device, extension

type	tag	interface	extension_names
harddisk	scsi:0:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	scsi:4:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
floppydisk	fdc:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		61		no

port, analog

port_tag	analog_masks
:slot:3:msmt094:kbd:hle_en_us:modifiers
:slot:3:msmt094:kbd:hle_en_us:row_0
:slot:3:msmt094:kbd:hle_en_us:row_1
:slot:3:msmt094:kbd:hle_en_us:row_2
:slot:3:msmt094:kbd:hle_en_us:row_3
:slot:3:msmt094:kbd:hle_en_us:row_4

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
scsi:0	cdrom	scsi_cdrom	no
scsi:0	harddisk	scsi_harddisk	yes
scsi:4	cdrom	scsi_cdrom	yes
scsi:4	harddisk	scsi_harddisk	no
scsi:1	cdrom	scsi_cdrom	no
scsi:1	harddisk	scsi_harddisk	no
scsi:2	cdrom	scsi_cdrom	no
scsi:2	harddisk	scsi_harddisk	no
scsi:3	cdrom	scsi_cdrom	no
scsi:3	harddisk	scsi_harddisk	no
scsi:5	cdrom	scsi_cdrom	no
scsi:5	harddisk	scsi_harddisk	no
scsi:6	cdrom	scsi_cdrom	no
scsi:6	harddisk	scsi_harddisk	no
fdc:1	35hd	floppy_35_hd	yes
serial1	terminal	serial_terminal	no
serial1	sunkbd	sunkbd_adaptor	no
serial1	votraxtnt	serial_votraxtnt	no
serial1	rs_printer	rs_serial_printer	no
serial1	dec_loopback	dec_rs232_loopback	no
serial1	h19	serial_heath_h19	no
serial1	ie15	ie15_terminal	no
serial1	null_modem	null_modem	no
serial1	keyboard	serial_keyboard	no
serial1	patch	rs232_patch_box	no
serial1	swtpc8212	swtpc8212_terminal	no
serial1	printer	serial_printer	no
serial1	scorpion	scorpion_ic	no
serial1	loopback	rs232_loopback	no
serial1	mockingboard	mockingboardd	no
serial1	msystems_mouse	rs232_mouse_hle_msystems	no
serial1	nss_tvi	nss_tvinterface	no
serial1	rs232_sync_io	rs232_sync_io	no
serial1	pty	pseudo_terminal	no
serial2	terminal	serial_terminal	no
serial2	sunkbd	sunkbd_adaptor	no
serial2	votraxtnt	serial_votraxtnt	no
serial2	rs_printer	rs_serial_printer	no
serial2	dec_loopback	dec_rs232_loopback	no
serial2	h19	serial_heath_h19	no
serial2	ie15	ie15_terminal	no
serial2	null_modem	null_modem	no
serial2	keyboard	serial_keyboard	no
serial2	patch	rs232_patch_box	no
serial2	swtpc8212	swtpc8212_terminal	no
serial2	printer	serial_printer	no
serial2	scorpion	scorpion_ic	no
serial2	loopback	rs232_loopback	no
serial2	mockingboard	mockingboardd	no
serial2	msystems_mouse	rs232_mouse_hle_msystems	no
serial2	nss_tvi	nss_tvinterface	no
serial2	rs232_sync_io	rs232_sync_io	no
serial2	pty	pseudo_terminal	no
serial0	terminal	serial_terminal	no
serial0	sunkbd	sunkbd_adaptor	no
serial0	votraxtnt	serial_votraxtnt	no
serial0	rs_printer	rs_serial_printer	no
serial0	dec_loopback	dec_rs232_loopback	no
serial0	h19	serial_heath_h19	no
serial0	ie15	ie15_terminal	no
serial0	null_modem	null_modem	no
serial0	keyboard	serial_keyboard	no
serial0	patch	rs232_patch_box	no
serial0	swtpc8212	swtpc8212_terminal	no
serial0	printer	serial_printer	no
serial0	scorpion	scorpion_ic	no
serial0	loopback	rs232_loopback	no
serial0	mockingboard	mockingboardd	no
serial0	msystems_mouse	rs232_mouse_hle_msystems	no
serial0	nss_tvi	nss_tvinterface	no
serial0	rs232_sync_io	rs232_sync_io	no
serial0	pty	pseudo_terminal	no
slot:1	msmt094	msmt094	no
slot:1	mpcbb68	mpcbb68	no
slot:1	mpcba63	mpcba63	no
slot:1	mpcb896	mpcb896	no
slot:1	mpcbb92	mpcbb92	no
slot:1	mpcb849	mpcb849	no
slot:1	mpcb828	mpcb828	no
slot:1	mpcb030	mpcb030	no
slot:2	msmt094	msmt094	no
slot:2	mpcbb68	mpcbb68	no
slot:2	mpcba63	mpcba63	no
slot:2	mpcb896	mpcb896	no
slot:2	mpcbb92	mpcbb92	no
slot:2	mpcb849	mpcb849	no
slot:2	mpcb828	mpcb828	no
slot:2	mpcb030	mpcb030	no
slot:3	msmt094	msmt094	yes
slot:3	mpcbb68	mpcbb68	no
slot:3	mpcba63	mpcba63	no
slot:3	mpcb896	mpcb896	no
slot:3	mpcbb92	mpcbb92	no
slot:3	mpcb849	mpcb849	no
slot:3	mpcb828	mpcb828	no
slot:3	mpcb030	mpcb030	no
slot:3:msmt094:kbd	lle_en_us	kbd_lle_en_us	no
slot:3:msmt094:kbd	hle_en_us	kbd_hle_en_us	yes
slot:4	msmt094	msmt094	no
slot:4	mpcbb68	mpcbb68	no
slot:4	mpcba63	mpcba63	no
slot:4	mpcb896	mpcb896	yes
slot:4	mpcbb92	mpcbb92	no
slot:4	mpcb849	mpcb849	no
slot:4	mpcb828	mpcb828	no
slot:4	mpcb030	mpcb030	no
