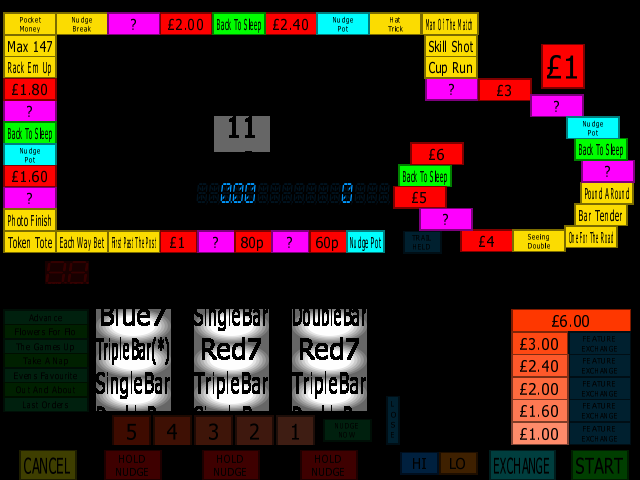

Andy Capp (BWB / Barcrest) (MPU4) (AC10)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4andycp	barcrest/mpu4mod4oki.cpp		no	no	yes	yes	Andy Capp (BWB / Barcrest) (MPU4) (AC10)	1994	BWB

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
ac10.hex	65536	0e250923	9557315cca7a47c307e811d437ff424fe77a2843	maincpu	0	good	no
andsnd.bin	524288	7d568671	3a0a6af3dc980f2ccff0b6ef85833eb2e352031a	okicard:msm6376	0	good	no
andsnd2.bin	524288	98a586ee	94b94d198725e8174e14873b99afa19217a1d4fa	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	okicard	Barcrest Sampled Sound Program Card	1720000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376
:characteriser	mpu4chrpal
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	ORANGE1	224

setting

name	value	default
Not fitted / 5p	0	yes
10p	32	no
20p	64	no
25p	96	no
30p	128	no
40p	160	no
50p	192	no
1 GBP	224	no

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP (Licensed Betting Office Profile)	11	no
35 GBP	12	no
70 GBP	13	no
Reserved	14	no
Reserved	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Token Lockout when full

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Lockout when full	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Scottish Coin Handling

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Scottish Coin Handling	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Out of Credit Display Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out of Credit Display Inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

OCD Audio Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
OCD Audio Enable	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Token Refill Level Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Refill Level Inhibit	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m4andycp8ad	Andy Capp (Barcrest) (MPU4) (AN8 AD)
m4andycp8b	Andy Capp (Barcrest) (MPU4) (AN8 B)
m4andycp8c	Andy Capp (Barcrest) (MPU4) (AN8 C)
m4andycp8d	Andy Capp (Barcrest) (MPU4) (AN8 D)
m4andycp8k	Andy Capp (Barcrest) (MPU4) (AN8 K)
m4andycp8kd	Andy Capp (Barcrest) (MPU4) (AN8 KD)
m4andycp8y	Andy Capp (Barcrest) (MPU4) (AN8 Y)
m4andycp8yd	Andy Capp (Barcrest) (MPU4) (AN8 YD)
m4andycp8	Andy Capp (Barcrest) (MPU4) (AN8)
m4andycpdc	Andy Capp (Barcrest) (MPU4) (AND C)
m4andycpdd	Andy Capp (Barcrest) (MPU4) (AND D)
m4andycpdk	Andy Capp (Barcrest) (MPU4) (AND K)
m4andycpdy	Andy Capp (Barcrest) (MPU4) (AND Y, set 1)
m4andycpdy_a	Andy Capp (Barcrest) (MPU4) (AND Y, set 2)
m4andycpdyd	Andy Capp (Barcrest) (MPU4) (AND YD)
m4andycpd	Andy Capp (Barcrest) (MPU4) (AND)
m4andycpc2ad	Andy Capp (Barcrest) (MPU4) (C2T AD)
m4andycpc2b	Andy Capp (Barcrest) (MPU4) (C2T B)
m4andycpc2bd	Andy Capp (Barcrest) (MPU4) (C2T BD)
m4andycpc2d	Andy Capp (Barcrest) (MPU4) (C2T D)
m4andycpc2k	Andy Capp (Barcrest) (MPU4) (C2T K)
m4andycpc2kd	Andy Capp (Barcrest) (MPU4) (C2T KD)
m4andycpc2r	Andy Capp (Barcrest) (MPU4) (C2T R)
m4andycpc2rd	Andy Capp (Barcrest) (MPU4) (C2T RD)
m4andycpc2y	Andy Capp (Barcrest) (MPU4) (C2T Y)
m4andycpc2yd	Andy Capp (Barcrest) (MPU4) (C2T YD)
m4andycpc2	Andy Capp (Barcrest) (MPU4) (C2T, set 1)
m4andycpc2_a	Andy Capp (Barcrest) (MPU4) (C2T, set 2)
m4andycpc5ad	Andy Capp (Barcrest) (MPU4) (C5T AD)
m4andycpc5b	Andy Capp (Barcrest) (MPU4) (C5T B)
m4andycpc5bd	Andy Capp (Barcrest) (MPU4) (C5T BD)
m4andycpc5d	Andy Capp (Barcrest) (MPU4) (C5T D)
m4andycpc5k	Andy Capp (Barcrest) (MPU4) (C5T K)
m4andycpc5kd	Andy Capp (Barcrest) (MPU4) (C5T KD)
m4andycpc5y	Andy Capp (Barcrest) (MPU4) (C5T Y)
m4andycpc5yd	Andy Capp (Barcrest) (MPU4) (C5T YD)
m4andycpc5	Andy Capp (Barcrest) (MPU4) (C5T)
m4andycp20	Andy Capp (Barcrest) (MPU4) (hack?, set 1)
m4andycp20_a	Andy Capp (Barcrest) (MPU4) (hack?, set 2)
m4andycp20_b	Andy Capp (Barcrest) (MPU4) (hack?, set 3)
m4andycp10_a	Andy Capp (BWB / Barcrest) (MPU4) (AC10, hack?)
m4andycp10c	Andy Capp (BWB / Barcrest) (MPU4) (AC10C)
m4andycp10c_a	Andy Capp (BWB / Barcrest) (MPU4) (AC10C, hack?, set 1)
m4andycp10c_b	Andy Capp (BWB / Barcrest) (MPU4) (AC10C, hack?, set 2)
m4andycp10c_c	Andy Capp (BWB / Barcrest) (MPU4) (AC10C, hack?, set 3)
m4andycp10c_d	Andy Capp (BWB / Barcrest) (MPU4) (AC10C, hack?, set 4)
m4andycp10d	Andy Capp (BWB / Barcrest) (MPU4) (AC10D)
m4andycp10k	Andy Capp (BWB / Barcrest) (MPU4) (AC10K)
m4andycp10yd	Andy Capp (BWB / Barcrest) (MPU4) (AC10YD)
m4andycpacc	Andy Capp (BWB / Barcrest) (MPU4) (AC5 C)
m4andycpacc_a	Andy Capp (BWB / Barcrest) (MPU4) (AC5 C, hack?, set 1)
m4andycpacc_b	Andy Capp (BWB / Barcrest) (MPU4) (AC5 C, hack?, set 2)
m4andycpacc_c	Andy Capp (BWB / Barcrest) (MPU4) (AC5 C, hack?, set 3)
m4andycpacc_d	Andy Capp (BWB / Barcrest) (MPU4) (AC5 C, hack?, set 4)
m4andycpacc_e	Andy Capp (BWB / Barcrest) (MPU4) (AC5 C, hack?, set 5)
m4andycpacd	Andy Capp (BWB / Barcrest) (MPU4) (AC5 D)
m4andycpack	Andy Capp (BWB / Barcrest) (MPU4) (AC5 K)
m4andycpacyd	Andy Capp (BWB / Barcrest) (MPU4) (AC5 YD)
m4andycpac	Andy Capp (BWB / Barcrest) (MPU4) (AC5)
m4andycpac_a	Andy Capp (BWB / Barcrest) (MPU4) (AC5, hack?)
m4andycpaccsd	Andy Capp (BWB / Barcrest) (MPU4) (ACC5)
