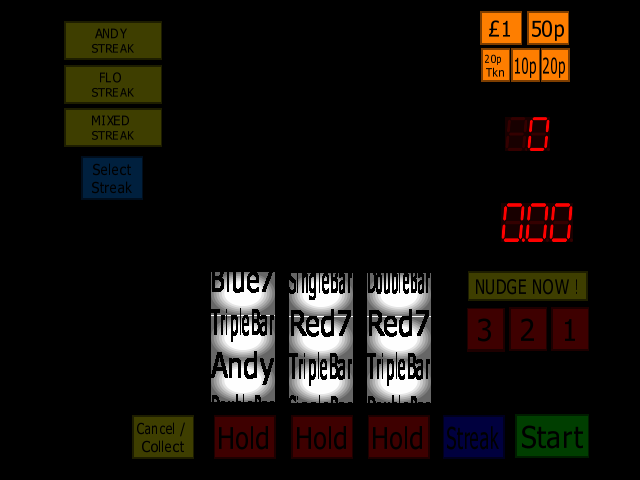

Andy's Full House (Barcrest) (MPU4) (AFH 0.1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4andyfh	barcrest/mpu4mod4oki.cpp		no	no	yes	yes	Andy's Full House (Barcrest) (MPU4) (AFH 0.1)	199?	Barcrest

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
afhs.p1	65536	722660ef	e1700f4dc6d14da8e8d8402466057cfd126e067b	maincpu	0	good	no
afhsnd1.bin	524288	ce0b1890	224d05f936a1b6f84ad682c282c557e87ad8931f	okicard:msm6376	0	good	no
afhsnd2.bin	524288	8a4dda7b	ee77295609ff646212faa207e56acb2440d859b8	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	okicard	Barcrest Sampled Sound Program Card	1720000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376
:characteriser	mpu4chrpal
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	ORANGE1	224

setting

name	value	default
Not fitted / 5p	0	yes
10p	32	no
20p	64	no
25p	96	no
30p	128	no
40p	160	no
50p	192	no
1 GBP	224	no

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP (Licensed Betting Office Profile)	11	no
35 GBP	12	no
70 GBP	13	no
Reserved	14	no
Reserved	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Token Lockout when full

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Lockout when full	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Scottish Coin Handling

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Scottish Coin Handling	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Out of Credit Display Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out of Credit Display Inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

OCD Audio Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
OCD Audio Enable	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Token Refill Level Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Refill Level Inhibit	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m4andyfh__a	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 AD)
m4andyfh__b	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 B)
m4andyfh__c	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 BD)
m4andyfh__d	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 D)
m4andyfh__g	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 K)
m4andyfh__e	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 KD)
m4andyfh__i	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 Y)
m4andyfh__f	Andy's Full House (Barcrest) (MPU4) (AF3 0.1 YD)
m4andyfh__h	Andy's Full House (Barcrest) (MPU4) (AF3 0.1)
m4andyfh__j	Andy's Full House (Barcrest) (MPU4) (AF8 0.1 B)
m4andyfh__k	Andy's Full House (Barcrest) (MPU4) (AF8 0.1 BD)
m4andyfh__l	Andy's Full House (Barcrest) (MPU4) (AF8 0.1 C)
m4andyfh__m	Andy's Full House (Barcrest) (MPU4) (AF8 0.1 K)
m4andyfh__n	Andy's Full House (Barcrest) (MPU4) (AF8 0.1)
m4andyfh__o	Andy's Full House (Barcrest) (MPU4) (AFH 0.1 B)
m4andyfh__p	Andy's Full House (Barcrest) (MPU4) (AFH 0.1 C)
m4andyfh__q	Andy's Full House (Barcrest) (MPU4) (AFH 0.1 D)
m4andyfh__r	Andy's Full House (Barcrest) (MPU4) (AFH 0.1 R)
m4andyfh__s	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 AD)
m4andyfh__t	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 B)
m4andyfh__u	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 BD)
m4andyfh__v	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 D)
m4andyfh__z	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 K)
m4andyfh__w	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 KD)
m4andyfh__0	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 R)
m4andyfh__x	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 RD)
m4andyfh__2	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 Y)
m4andyfh__y	Andy's Full House (Barcrest) (MPU4) (AFT 0.3 YD)
m4andyfh__1	Andy's Full House (Barcrest) (MPU4) (AFT 0.3)
m4andyfh__3	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 AD)
m4andyfh__4	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 B)
m4andyfh__5	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 BD)
m4andyfh__6	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 D)
m4andyfh__aa	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 K)
m4andyfh__7	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 KD)
m4andyfh__ab	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 R)
m4andyfh__8	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 RD)
m4andyfh__ad	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 Y)
m4andyfh__9	Andy's Full House (Barcrest) (MPU4) (AFU 0.2 YD)
m4andyfh__ac	Andy's Full House (Barcrest) (MPU4) (AFU 0.2)
m4andyfh__ae	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 AD)
m4andyfh__af	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 B)
m4andyfh__ag	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 BD)
m4andyfh__ah	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 D)
m4andyfh__ak	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 K)
m4andyfh__ai	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 KD)
m4andyfh__am	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 Y)
m4andyfh__aj	Andy's Full House (Barcrest) (MPU4) (CA4 0.8 YD)
m4andyfh__al	Andy's Full House (Barcrest) (MPU4) (CA4 0.8)
m4andyfh__an	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 AD)
m4andyfh__ao	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 B)
m4andyfh__ap	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 BD)
m4andyfh__aq	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 D)
m4andyfh__at	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 K)
m4andyfh__ar	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 KD)
m4andyfh__av	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 Y)
m4andyfh__as	Andy's Full House (Barcrest) (MPU4) (CAT 0.2 YD)
m4andyfh__au	Andy's Full House (Barcrest) (MPU4) (CAT 0.2)
m4andyfh__a3	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 / CA4 0.1)
m4andyfh__aw	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 AD / CA4 0.1)
m4andyfh__ax	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 B / CA4 0.1)
m4andyfh__ay	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 BD / CA4 0.1)
m4andyfh__az	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 D / CA4 0.1)
m4andyfh__a2	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 K / CA4 0.1)
m4andyfh__a0	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 KD / CA4 0.1)
m4andyfh__a4	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 Y / CA4 0.1)
m4andyfh__a1	Andy's Full House (Barcrest) (MPU4) (CAU 0.1 YD / CA4 0.1)

Andy's Full House (Barcrest) (MPU4) (AFH 0.1) - mame (0286) machine

machine

driver

rom

chip

device_ref

sound

input

control

port, analog

configuration

Stake Key

setting

Jackpot / Prize Key

setting

Percentage Key

setting

dipswitch

Unused

location

value

Unused

location

value

Unused

location

value

Unused

location

value

Target Percentage (if key not fitted)

location

value

Token Lockout when full

location

value

Unused

location

value

Scottish Coin Handling

location

value

Out of Credit Display Inhibit

location

value

OCD Audio Enable

location

value

Coin Alarm Inhibit

location

value

Token Refill Level Inhibit

location

value

Single Credit Entry

location

value

clones
