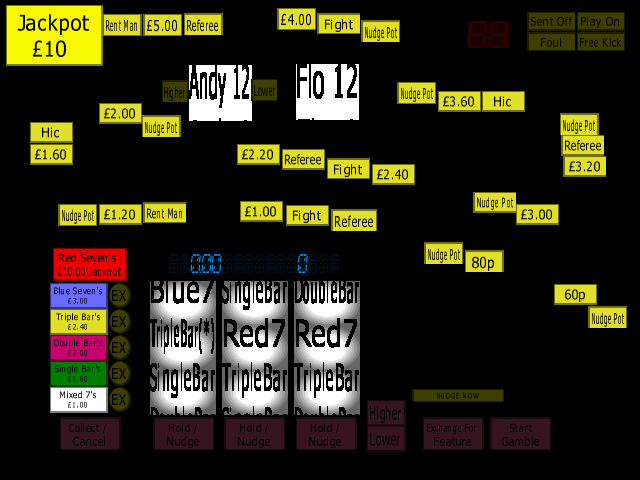

Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3, set 1)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4andyge	barcrest/mpu4mod4oki.cpp		no	no	yes	yes	Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3, set 1)	1991	Barcrest

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
an2s.p1	65536	65399fa0	ecefdf63e7aa477001fa530ed340e90e85252c3c	maincpu	0	good	no
age.bin	279	901359e5	7dbcd6023e7ce68f4aa7f191f572d74f21f978aa	plds	0	good	no
an2snd.p1	524288	5394e9ae	86ccd8531fc87f34d3c5482ba7e5a2c06ea69491	okicard:msm6376	0	good	no
an2snd.p2	524288	109ace1f	9f0e8065186beb61ed50fea834de2d91e68db953	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	okicard	Barcrest Sampled Sound Program Card	1720000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376
:characteriser	mpu4chrpal
:reel0	stepper
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	ORANGE1	224

setting

name	value	default
Not fitted / 5p	0	yes
10p	32	no
20p	64	no
25p	96	no
30p	128	no
40p	160	no
50p	192	no
1 GBP	224	no

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP (Licensed Betting Office Profile)	11	no
35 GBP	12	no
70 GBP	13	no
Reserved	14	no
Reserved	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
As Option Switches	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Token Lockout when full

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Lockout when full	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Scottish Coin Handling

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Scottish Coin Handling	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Out of Credit Display Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out of Credit Display Inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

OCD Audio Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
OCD Audio Enable	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Token Refill Level Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Refill Level Inhibit	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m4andyge28ad	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 AD)
m4andyge28b	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 B)
m4andyge28bd	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 BD)
m4andyge28c	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 C)
m4andyge28d	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 D)
m4andyge28k	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 K)
m4andyge28kd	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 KD)
m4andyge28y	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 Y)
m4andyge28yd	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1 YD)
m4andyge28	Andy's Great Escape (Barcrest) (MPU4) (A28 0.1)
m4andyge2tad	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 AD)
m4andyge2tb	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 B)
m4andyge2tbd	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 BD)
m4andyge2td	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 D)
m4andyge2tk	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 K)
m4andyge2tkd	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 KD)
m4andyge2ty	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 Y)
m4andyge2tyd	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1 YD)
m4andyge2t	Andy's Great Escape (Barcrest) (MPU4) (A2T 0.1)
m4andyge5tad	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 AD)
m4andyge5tb	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 B)
m4andyge5tbd	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 BD)
m4andyge5td	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 D)
m4andyge5tk	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 K)
m4andyge5tkd	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 KD)
m4andyge5ty	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 Y)
m4andyge5tyd	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1 YD)
m4andyge5t	Andy's Great Escape (Barcrest) (MPU4) (A5T 0.1)
m4andygen2c	Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3 C)
m4andygen2d	Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3 D)
m4andygen2k	Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3 K)
m4andygen2y	Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3 Y)
m4andygen2_a	Andy's Great Escape (Barcrest) (MPU4) (AN2 0.3, set 2)
m4andyge_h3	Andy's Great Escape (BWB / Barcrest) (MPU4) (8V1 0.3, hack?, set 1)
m4andyge_h4	Andy's Great Escape (BWB / Barcrest) (MPU4) (8V1 0.3, hack?, set 2)
m4andyge_h1	Andy's Great Escape (BWB / Barcrest) (MPU4) (8V1 3.0, hack?, set 1)
m4andyge_h2	Andy's Great Escape (BWB / Barcrest) (MPU4) (8V1 3.0, hack?, set 2)
m4andygeg_2c	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG__2.0 C)
m4andyge_hx5	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG__2.0 CX, hack?)
m4andygeg_2d	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG__2.0 D)
m4andygeg_2k	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG__2.0 K)
m4andygeg_2yd	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG__2.0 YD)
m4andygeg_2	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG__2.0)
m4andygeg5a	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 A)
m4andygeg5c	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 C)
m4andyge_hx1	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 CX, hack?, set 1)
m4andyge_hx2	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 CX, hack?, set 2)
m4andyge_hx3	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 CX, hack?, set 3)
m4andyge_hx4	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 CX, hack?, set 4)
m4andygeg5d	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 D)
m4andygeg5k	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 K)
m4andygeg5yd	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0 YD)
m4andygeg5	Andy's Great Escape (BWB / Barcrest) (MPU4) (AG5 3.0)
m4andygegc2d	Andy's Great Escape (BWB / Barcrest) (MPU4) (AGC 2.0 D)
m4andygegc2	Andy's Great Escape (BWB / Barcrest) (MPU4) (AGC 2.0)
