mame (0289) • machine m4hittop • Hit The Top (Barcrest) (MPU4) (HI4 0.3)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4hittop	barcrest/mpu4mod4oki.cpp		no	no	yes	yes	Hit The Top (Barcrest) (MPU4) (HI4 0.3)	199?	Barcrest

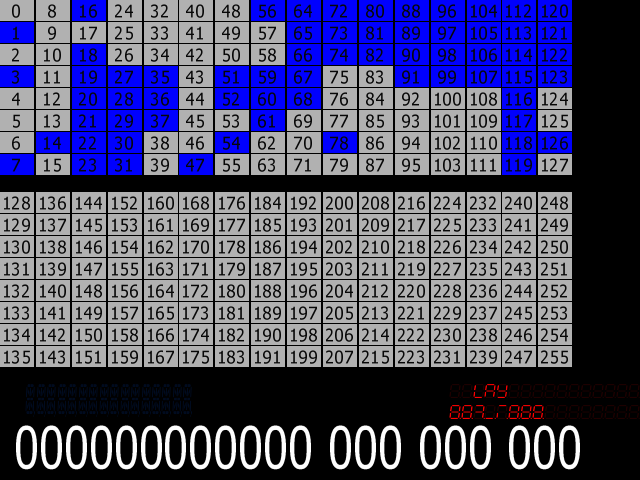

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
m4hittop	56205	12/09/2026 14:37:13	640	480	96	96	0	Format24bppRgb	305:MAME 0.289 (mame0289)	2666c795c9bf4ecde1f9b21df2f636309430b1f2

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
hi4s.p1	65536	3a04ee7a	d23e9da2c22f6983a855bc519597ea9cea84f2dd	maincpu	0	good	no
hi4snd.p1	524288	066f262b	fd48da486592740c68ee497396602199101711a6	okicard:msm6376	0	good	no
hi4snd.p2	524288	0ee89f6c	7088149000efd1dcdf37aa9b88f7c6491184da24	okicard:msm6376	80000	good	no
httsnd.p1	524288	1cfb12d2	d909c7ee8ea10587a9a9251af943b0151d2c4a16	okicard:altmsm6376	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	okicard	Barcrest Sampled Sound Program Card	1720000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376
:characteriser	mpu4chrpal
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	ORANGE1	224

setting

name	value	default
Not fitted / 5p	0	yes
10p	32	no
20p	64	no
25p	96	no
30p	128	no
40p	160	no
50p	192	no
1 GBP	224	no

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP (Licensed Betting Office Profile)	11	no
35 GBP	12	no
70 GBP	13	no
Reserved	14	no
Reserved	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Token Lockout when full

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Lockout when full	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Scottish Coin Handling

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Scottish Coin Handling	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Out of Credit Display Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out of Credit Display Inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

OCD Audio Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
OCD Audio Enable	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Token Refill Level Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Refill Level Inhibit	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m4hittop__a	Hit The Top (Barcrest) (MPU4) (CHU 0.1 AD)
m4hittop__b	Hit The Top (Barcrest) (MPU4) (CHU 0.1 B)
m4hittop__c	Hit The Top (Barcrest) (MPU4) (CHU 0.1 BD)
m4hittop__d	Hit The Top (Barcrest) (MPU4) (CHU 0.1 D)
m4hittop__g	Hit The Top (Barcrest) (MPU4) (CHU 0.1 K)
m4hittop__e	Hit The Top (Barcrest) (MPU4) (CHU 0.1 KD)
m4hittop__h	Hit The Top (Barcrest) (MPU4) (CHU 0.1 R)
m4hittop__j	Hit The Top (Barcrest) (MPU4) (CHU 0.1 Y)
m4hittop__f	Hit The Top (Barcrest) (MPU4) (CHU 0.1 YD)
m4hittop__i	Hit The Top (Barcrest) (MPU4) (CHU 0.1)
m4hittop__l	Hit The Top (Barcrest) (MPU4) (HI4 0.3 AB
m4hittop__k	Hit The Top (Barcrest) (MPU4) (HI4 0.3 AD)
m4hittop__m	Hit The Top (Barcrest) (MPU4) (HI4 0.3 BD)
m4hittop__n	Hit The Top (Barcrest) (MPU4) (HI4 0.3 D)
m4hittop__q	Hit The Top (Barcrest) (MPU4) (HI4 0.3 K)
m4hittop__o	Hit The Top (Barcrest) (MPU4) (HI4 0.3 KD)
m4hittop__r	Hit The Top (Barcrest) (MPU4) (HI4 0.3 Y)
m4hittop__p	Hit The Top (Barcrest) (MPU4) (HI4 0.3 YD)
m4hittop__s	Hit The Top (Barcrest) (MPU4) (HIT 0.4 AD)
m4hittop__t	Hit The Top (Barcrest) (MPU4) (HIT 0.4 B)
m4hittop__u	Hit The Top (Barcrest) (MPU4) (HIT 0.4 BD)
m4hittop__v	Hit The Top (Barcrest) (MPU4) (HIT 0.4 D)
m4hittop__z	Hit The Top (Barcrest) (MPU4) (HIT 0.4 K)
m4hittop__w	Hit The Top (Barcrest) (MPU4) (HIT 0.4 KD)
m4hittop__0	Hit The Top (Barcrest) (MPU4) (HIT 0.4 R)
m4hittop__x	Hit The Top (Barcrest) (MPU4) (HIT 0.4 RD)
m4hittop__2	Hit The Top (Barcrest) (MPU4) (HIT 0.4 Y)
m4hittop__y	Hit The Top (Barcrest) (MPU4) (HIT 0.4 YD)
m4hittop__1	Hit The Top (Barcrest) (MPU4) (HIT 0.4)
m4hittop__3	Hit The Top (Barcrest) (MPU4) (HT2 0.1 AD)
m4hittop__4	Hit The Top (Barcrest) (MPU4) (HT2 0.1 B)
m4hittop__5	Hit The Top (Barcrest) (MPU4) (HT2 0.1 BD)
m4hittop__6	Hit The Top (Barcrest) (MPU4) (HT2 0.1 D)
m4hittop__aa	Hit The Top (Barcrest) (MPU4) (HT2 0.1 K)
m4hittop__7	Hit The Top (Barcrest) (MPU4) (HT2 0.1 KD)
m4hittop__ab	Hit The Top (Barcrest) (MPU4) (HT2 0.1 R)
m4hittop__8	Hit The Top (Barcrest) (MPU4) (HT2 0.1 RD)
m4hittop__ad	Hit The Top (Barcrest) (MPU4) (HT2 0.1 Y)
m4hittop__9	Hit The Top (Barcrest) (MPU4) (HT2 0.1 YD)
m4hittop__ac	Hit The Top (Barcrest) (MPU4) (HT2 0.1)
m4hittop__ae	Hit The Top (Barcrest) (MPU4) (HT5 0.1 AD)
m4hittop__af	Hit The Top (Barcrest) (MPU4) (HT5 0.1 B)
m4hittop__ag	Hit The Top (Barcrest) (MPU4) (HT5 0.1 BD)
m4hittop__ah	Hit The Top (Barcrest) (MPU4) (HT5 0.1 D)
m4hittop__al	Hit The Top (Barcrest) (MPU4) (HT5 0.1 K)
m4hittop__ai	Hit The Top (Barcrest) (MPU4) (HT5 0.1 KD)
m4hittop__am	Hit The Top (Barcrest) (MPU4) (HT5 0.1 R)
m4hittop__aj	Hit The Top (Barcrest) (MPU4) (HT5 0.1 RD)
m4hittop__ao	Hit The Top (Barcrest) (MPU4) (HT5 0.1 Y)
m4hittop__ak	Hit The Top (Barcrest) (MPU4) (HT5 0.1 YD)
m4hittop__an	Hit The Top (Barcrest) (MPU4) (HT5 0.1)
m4hittop__ap	Hit The Top (Barcrest) (MPU4) (HTT 0.5 AD)
m4hittop__aq	Hit The Top (Barcrest) (MPU4) (HTT 0.5 B)
m4hittop__ar	Hit The Top (Barcrest) (MPU4) (HTT 0.5 BD)
m4hittop__as	Hit The Top (Barcrest) (MPU4) (HTT 0.5 D)
m4hittop__av	Hit The Top (Barcrest) (MPU4) (HTT 0.5 K)
m4hittop__at	Hit The Top (Barcrest) (MPU4) (HTT 0.5 KD)
m4hittop__ax	Hit The Top (Barcrest) (MPU4) (HTT 0.5 Y)
m4hittop__au	Hit The Top (Barcrest) (MPU4) (HTT 0.5 YD)
m4hittop__aw	Hit The Top (Barcrest) (MPU4) (HTT 0.5)
m4hittp2	Hit The Top (Barcrest) (MPU4, Mod 2 type, H4T 2.0, set 1)
m4hittp2a	Hit The Top (Barcrest) (MPU4, Mod 2 type, H4T 2.0, set 2)
