mame (0289) • machine m4lucklv • Lucky Las Vegas (Barcrest) (MPU4) (LLV 0.2)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4lucklv	barcrest/mpu4mod4oki.cpp		no	no	yes	yes	Lucky Las Vegas (Barcrest) (MPU4) (LLV 0.2)	199?	Barcrest

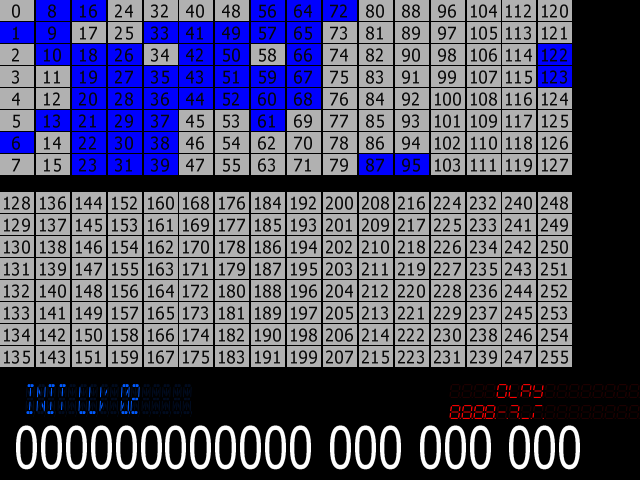

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
m4lucklv	57496	16/09/2026 11:29:12	640	480	96	96	0	Format24bppRgb	305:MAME 0.289 (mame0289)	1c711c3585e20ab26979ae1842ac37d84c60f3a9

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
llvs.p1	65536	30727bc9	c32112d0181f629540b31ce9959834111dbf7e0e	maincpu	0	good	no
llvsnd.p1	524288	36be26f3	b1c66d3ebebd7eb18266bf6b30c4a4db7acdf10d	okicard:msm6376	0	good	no
llvsnd.p2	524288	d5c2bb99	e2096b8a33e89218d44200e87d1962790120a96c	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	okicard	Barcrest Sampled Sound Program Card	1720000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376
:characteriser	mpu4chrpal
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	ORANGE1	224

setting

name	value	default
Not fitted / 5p	0	yes
10p	32	no
20p	64	no
25p	96	no
30p	128	no
40p	160	no
50p	192	no
1 GBP	224	no

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP (Licensed Betting Office Profile)	11	no
35 GBP	12	no
70 GBP	13	no
Reserved	14	no
Reserved	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Token Lockout when full

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Lockout when full	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Scottish Coin Handling

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Scottish Coin Handling	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Out of Credit Display Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out of Credit Display Inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

OCD Audio Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
OCD Audio Enable	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Token Refill Level Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Refill Level Inhibit	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m4lucklv__a	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 AD)
m4lucklv__b	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 B)
m4lucklv__c	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 BD)
m4lucklv__d	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 D)
m4lucklv__g	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 K)
m4lucklv__e	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 KD)
m4lucklv__i	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 Y)
m4lucklv__f	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1 YD)
m4lucklv__h	Lucky Las Vegas (Barcrest) (MPU4) (LL3 0.1)
m4lucklv__j	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 AD)
m4lucklv__k	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 B)
m4lucklv__l	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 BD)
m4lucklv__m	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 C)
m4lucklv__n	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 D)
m4lucklv__q	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 K)
m4lucklv__o	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 KD)
m4lucklv__s	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 Y)
m4lucklv__p	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1 YD)
m4lucklv__r	Lucky Las Vegas (Barcrest) (MPU4) (LL8 0.1)
m4lucklv__t	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 AD)
m4lucklv__u	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 B)
m4lucklv__v	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 BD)
m4lucklv__w	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 D)
m4lucklv__0	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 K)
m4lucklv__x	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 KD)
m4lucklv__1	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 R)
m4lucklv__y	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 RD)
m4lucklv__3	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 Y)
m4lucklv__z	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3 YD)
m4lucklv__2	Lucky Las Vegas (Barcrest) (MPU4) (LLT 0.3)
m4lucklv__4	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 AD)
m4lucklv__5	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 B)
m4lucklv__6	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 BD)
m4lucklv__7	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 D)
m4lucklv__ab	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 K)
m4lucklv__8	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 KD)
m4lucklv__ac	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 R)
m4lucklv__9	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 RD)
m4lucklv__ae	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 Y)
m4lucklv__aa	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1 YD)
m4lucklv__ad	Lucky Las Vegas (Barcrest) (MPU4) (LLU 0.1)
m4lucklv__af	Lucky Las Vegas (Barcrest) (MPU4) (LLV 0.2 B)
m4lucklv__ag	Lucky Las Vegas (Barcrest) (MPU4) (LLV 0.2 C)
m4lucklv__ah	Lucky Las Vegas (Barcrest) (MPU4) (LLV 0.2 D)
m4lucklv__ai	Lucky Las Vegas (Barcrest) (MPU4) (LLV 0.2 R)
