mame (0289) • machine m4makmnt • Make A Mint (Barcrest) (MPU4) (MAM 0.3)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
m4makmnt	barcrest/mpu4mod4oki.cpp		no	no	yes	yes	Make A Mint (Barcrest) (MPU4) (MAM 0.3)	199?	Barcrest

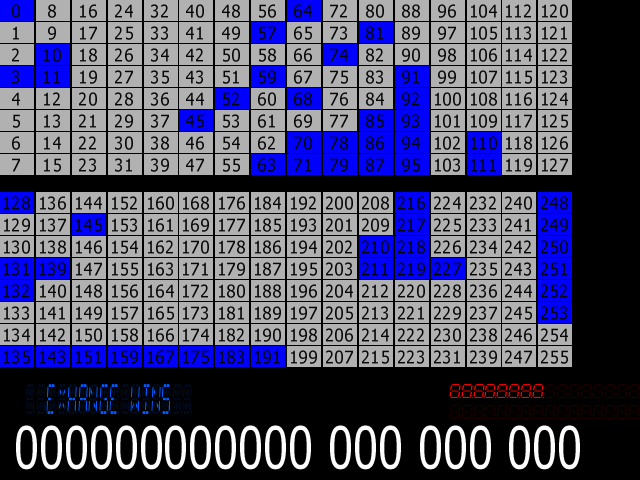

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
m4makmnt	60192	17/09/2026 16:52:41	640	480	96	96	0	Format24bppRgb	305:MAME 0.289 (mame0289)	9e9639c21dfd76118eb8389aa4cd521f5d2fea5a

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
mams.p1	131072	af08e1e6	c7e87d351f67592084d758ee53ba4d354bb28866	maincpu	0	good	no
mamsnd.p1	524288	8dc408e3	48a9ffc5cf4fd04ed1320619ca915bbfa2406750	okicard:msm6376	0	good	no
mamsnd.p2	524288	6034e17a	11e044c87b5fc6461b0c6cfac5c419daee930d7b	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	okicard	Barcrest Sampled Sound Program Card	1720000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:nvram	nvram
:duart68681	mc68681
:duart68681:cha	duart_channel
:duart68681:chb	duart_channel
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376
:characteriser	mpu4chrpal
:reel1	stepper
:reel2	stepper
:reel3	stepper
:reel4	stepper

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Stake Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stake Key	ORANGE1	224

setting

name	value	default
Not fitted / 5p	0	yes
10p	32	no
20p	64	no
25p	96	no
30p	128	no
40p	160	no
50p	192	no
1 GBP	224	no

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP (Licensed Betting Office Profile)	11	no
35 GBP	12	no
70 GBP	13	no
Reserved	14	no
Reserved	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Token Lockout when full

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Lockout when full	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Scottish Coin Handling

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Scottish Coin Handling	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Out of Credit Display Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Out of Credit Display Inhibit	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

OCD Audio Enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
OCD Audio Enable	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Token Refill Level Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Token Refill Level Inhibit	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
m4makmnt__aq	Make A Mint (Barcrest) (MPU4) (MA_ 3.0 D)
m4makmnt__as	Make A Mint (Barcrest) (MPU4) (MA_ 3.0 K)
m4makmnt__ao	Make A Mint (Barcrest) (MPU4) (MA_ 3.0)
m4makmnt__ap	Make A Mint (Barcrest) (MPU4) (MA_ 3.1 D)
m4makmnt__ar	Make A Mint (Barcrest) (MPU4) (MA_ 3.1 K)
m4makmnt__an	Make A Mint (Barcrest) (MPU4) (MA_ 3.1)
m4makmnt__o	Make A Mint (Barcrest) (MPU4) (MAM 0.3 AD)
m4makmnt__p	Make A Mint (Barcrest) (MPU4) (MAM 0.3 B)
m4makmnt__q	Make A Mint (Barcrest) (MPU4) (MAM 0.3 BD)
m4makmnt__r	Make A Mint (Barcrest) (MPU4) (MAM 0.3 C)
m4makmnt__n	Make A Mint (Barcrest) (MPU4) (MAM 0.3 C, hack)
m4makmnt__s	Make A Mint (Barcrest) (MPU4) (MAM 0.3 D)
m4makmnt__v	Make A Mint (Barcrest) (MPU4) (MAM 0.3 K)
m4makmnt__t	Make A Mint (Barcrest) (MPU4) (MAM 0.3 KD)
m4makmnt__w	Make A Mint (Barcrest) (MPU4) (MAM 0.3 R)
m4makmnt__x	Make A Mint (Barcrest) (MPU4) (MAM 0.3 Y)
m4makmnt__u	Make A Mint (Barcrest) (MPU4) (MAM 0.3 YD)
m4makmnt__a	Make A Mint (Barcrest) (MPU4) (MAM 0.4 AD)
m4makmnt__b	Make A Mint (Barcrest) (MPU4) (MAM 0.4 B)
m4makmnt__c	Make A Mint (Barcrest) (MPU4) (MAM 0.4 BD)
m4makmnt__d	Make A Mint (Barcrest) (MPU4) (MAM 0.4 C)
m4makmnt__e	Make A Mint (Barcrest) (MPU4) (MAM 0.4 D)
m4makmnt__i	Make A Mint (Barcrest) (MPU4) (MAM 0.4 K)
m4makmnt__f	Make A Mint (Barcrest) (MPU4) (MAM 0.4 KD)
m4makmnt__j	Make A Mint (Barcrest) (MPU4) (MAM 0.4 R)
m4makmnt__g	Make A Mint (Barcrest) (MPU4) (MAM 0.4 RD)
m4makmnt__l	Make A Mint (Barcrest) (MPU4) (MAM 0.4 Y)
m4makmnt__h	Make A Mint (Barcrest) (MPU4) (MAM 0.4 YD)
m4makmnt__k	Make A Mint (Barcrest) (MPU4) (MAM 0.4)
m4makmnt__y	Make A Mint (Barcrest) (MPU4) (MMG 0.2)
m4makmnt__z	Make A Mint (Barcrest) (MPU4) (MMG 0.4 AD)
m4makmnt__0	Make A Mint (Barcrest) (MPU4) (MMG 0.4 B)
m4makmnt__1	Make A Mint (Barcrest) (MPU4) (MMG 0.4 BD)
m4makmnt__2	Make A Mint (Barcrest) (MPU4) (MMG 0.4 C)
m4makmnt__3	Make A Mint (Barcrest) (MPU4) (MMG 0.4 D)
m4makmnt__7	Make A Mint (Barcrest) (MPU4) (MMG 0.4 K)
m4makmnt__4	Make A Mint (Barcrest) (MPU4) (MMG 0.4 KD)
m4makmnt__8	Make A Mint (Barcrest) (MPU4) (MMG 0.4 R)
m4makmnt__5	Make A Mint (Barcrest) (MPU4) (MMG 0.4 RD)
m4makmnt__aa	Make A Mint (Barcrest) (MPU4) (MMG 0.4 Y)
m4makmnt__6	Make A Mint (Barcrest) (MPU4) (MMG 0.4 YD)
m4makmnt__9	Make A Mint (Barcrest) (MPU4) (MMG 0.4)
m4makmnt__m	Make A Mint (Barcrest) (MPU4) (MMG 0.4, hack)
m4makmnt__ab	Make A Mint (Barcrest) (MPU4) (MMG 0.5 AD)
m4makmnt__ac	Make A Mint (Barcrest) (MPU4) (MMG 0.5 B)
m4makmnt__ad	Make A Mint (Barcrest) (MPU4) (MMG 0.5 BD)
m4makmnt__ae	Make A Mint (Barcrest) (MPU4) (MMG 0.5 C)
m4makmnt__af	Make A Mint (Barcrest) (MPU4) (MMG 0.5 D)
m4makmnt__aj	Make A Mint (Barcrest) (MPU4) (MMG 0.5 K)
m4makmnt__ag	Make A Mint (Barcrest) (MPU4) (MMG 0.5 KD)
m4makmnt__ak	Make A Mint (Barcrest) (MPU4) (MMG 0.5 R)
m4makmnt__ah	Make A Mint (Barcrest) (MPU4) (MMG 0.5 RD)
m4makmnt__am	Make A Mint (Barcrest) (MPU4) (MMG 0.5 Y)
m4makmnt__ai	Make A Mint (Barcrest) (MPU4) (MMG 0.5 YD)
m4makmnt__al	Make A Mint (Barcrest) (MPU4) (MMG 0.5)
