mame (0289) • machine mmd1 • MMD-1 Mini-Micro Designer

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mmd1	skeleton/mmd1.cpp		no	no	no	yes	MMD-1 Mini-Micro Designer	1976	E&L Instruments Inc

snap

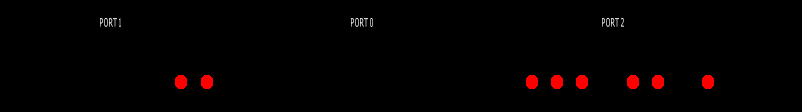

MMD-1 Mini-Micro Designer png snap

MMD-1 Mini-Micro Designer jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mmd1	1311	29/12/2025 11:31:35	802	112	96	96	0	Format24bppRgb	305:MAME 0.178 (Sep 28 2016)	9e3701004a1833c704240d4c39aa721f46b138b9

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
kex.ic15	256	434f6923	a2af60deda54c8d3f175b894b47ff554eb37e9cb	maincpu	0	good	no
prom1.ic16	256	d23a6ac3	469d981b635058dd23e843a3efc555316f87ece4	maincpu	100	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8080	750000
audio	cassette	Cassette
audio	mono	Speaker

device_ref

tag	name
:maincpu	i8080
:uart	ay51013
:uart_clock	clock
:kansas_r	timer
:cassette	cassette_image
:mono	speaker

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette				cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette				wav, flac, aif, aiff

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		16		no

port, analog

port_tag	analog_masks
:LINE1
:LINE2
:LINE3

clones

name	description
mmd2	MMD-2 Mini-Micro Designer
