mame (0289) • machine mmd2 • MMD-2 Mini-Micro Designer

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
mmd2	skeleton/mmd2.cpp		no	no	no	yes	MMD-2 Mini-Micro Designer	1976	E&L Instruments Inc	mmd1	mmd1

snap

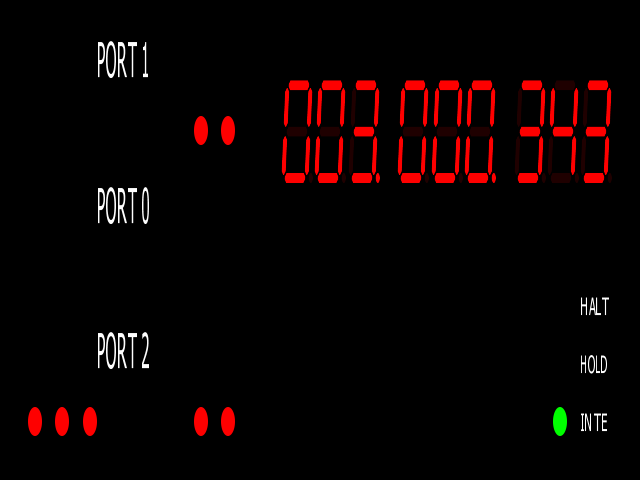

MMD-2 Mini-Micro Designer png snap

MMD-2 Mini-Micro Designer jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
mmd2	12462	24/03/2026 17:08:30	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	d4012c696f5313684d6a9d58324f645fc8b34afd

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
mmd2330.bin	2048	69a77199	6c83093b2c32a558c969f4fe8474b234023cc348	maincpu	0	good	no
mmd2340.bin	2048	70681bd6	c37e3cf34a75e8538471030bb49b8aed45d00ec3	maincpu	800	good	no
mmd2350.bin	2048	359f577c	9405ca0c1977721e4540a4017907c06dab08d398	maincpu	1000	good	no
mmd2360.bin	2048	967e69b8	c21ec8bef955806a2c6e1b1c8e9068662fb88038	maincpu	1800	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8080	750000
audio	cassette	Cassette
audio	mono	Speaker

device_ref

tag	name
:maincpu	i8080
:i8279	i8279
:cassette	cassette_image
:mono	speaker

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cassette	cassette				cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cassette	cassette				wav, flac, aif, aiff

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		33		no

port, analog

port_tag	analog_masks
:DSW
:RESET
:X0
:X1
:X2
:X3

dipswitch

Sw8

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sw8	DSW	8

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Exec	8	yes
User	0	no

Sw7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sw7	DSW	16

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
PUP	16	yes
Reset	0	no

Sw6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sw6	DSW	32

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Hex	32	no
Octal	0	yes
