Pasopia 7 PA7007 (Raster) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pasopia7	toshiba/pasopia7.cpp		no	no	no	yes	Pasopia 7 PA7007 (Raster)	1983	Toshiba

snap

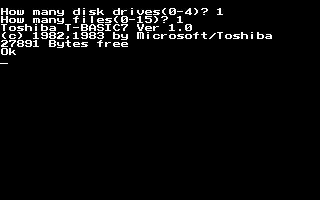

Pasopia 7 PA7007 (Raster) png snap

Pasopia 7 PA7007 (Raster) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
pasopia7	1685	29/12/2025 11:31:37	320	200	96	96	0	Format24bppRgb	305:MAME 0.178 (Sep 28 2016)	501a432b72715c93d15bf7012743b23b938776fd

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	32	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
bios.rom	16384	b8111407	ac93ae62db4c67de815f45de98c79cfa1313857d	bios	0	good	no
basic.rom	32768	8a58fab6	5e1a91dfb293bca5cf145b0a0c63217f04003ed1	basic	0	good	no
2732.ic146	4096	aabf66e8	1ff5c2c35f07d7481c4c22a453192d9458590eb0	font	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3993600
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	sn1	SN76489A	1996800
audio	sn2	SN76489A	1996800
audio	fdc:0:525hd:flopsndout	Speaker
audio	fdc:0:525hd:floppysound	Floppy sound	44100
audio	fdc:1:525hd:flopsndout	Speaker
audio	fdc:1:525hd:floppysound	Floppy sound	44100
audio	cassette	Cassette

softwarelist

tag	name	status	filter
cass_list	pasopia7_cass	original

device_ref

tag	name
:maincpu	z80
:mono	speaker
:speaker	speaker_sound_device
:sn1	sn76489a
:sn2	sn76489a
:ctc	z80ctc
:ctc:ch0	z80ctc_channel
:ctc:ch1	z80ctc_channel
:ctc:ch2	z80ctc_channel
:ctc:ch3	z80ctc_channel
:pio	z80pio
:ppi0	i8255
:ppi1	i8255
:ppi2	i8255
:fdc	upd765a
:fdc:0	floppy_connector
:fdc:0:525hd	floppy_525_hd
:fdc:0:525hd:flopsndout	speaker
:fdc:0:525hd:floppysound	flopsnd
:fdc:1	floppy_connector
:fdc:1:525hd	floppy_525_hd
:fdc:1:525hd:flopsndout	speaker
:fdc:1:525hd:floppysound	flopsnd
:cassette	cassette_image
:pac2	pasopia_pac2
:cass_list	software_list
:screen	screen
:palette	palette
:gfxdecode	gfxdecode
:crtc	hd6845s

sound

channels
3

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:525hd	floppy_5_25			floppydisk1	flop1
floppydisk	fdc:1:525hd	floppy_5_25			floppydisk2	flop2
cassette	cassette	pasopia7_cass			cassette	cass

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:525hd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	fdc:1:525hd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
cassette	cassette	pasopia7_cass			wav, flac, aif, aiff

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		88		no

port, analog

port_tag	analog_masks
:KEY.0
:KEY.1
:KEY.10
:KEY.11
:KEY.2
:KEY.3
:KEY.4
:KEY.5
:KEY.6
:KEY.7
:KEY.8
:KEY.9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	525hd	floppy_525_hd	yes
fdc:1	525hd	floppy_525_hd	yes
pac2	ram64k	pa7248	no
pac2	kanji	pa7246	no
pac2	ram32k	pa7245	no
pac2	ram16k	pa7243	no
pac2	exp	pa7234	no

clones

name	description
pasopia7lcd	Pasopia 7 PA7007 with PA7170 (LCD)
