mame (0289) • machine v4mdice • Miami Dice (BWB) (Release 8, S/Site Standard, 25p-£10 Cash

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4mdice	barcrest/mpu4vid.cpp		no	no	no	yes	Miami Dice (BWB) (Release 8, S/Site Standard, 25p-£10 Cash - Fixed) (set 1) (MPU4 Video)	1995	BWB

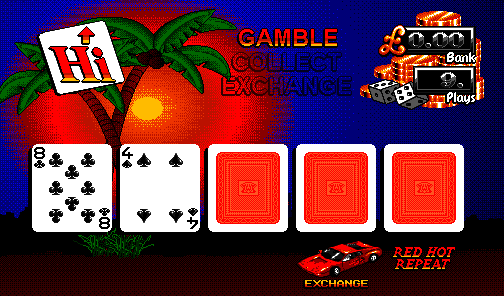

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
v4mdice	21492	29/12/2025 11:31:49	504	296	96	96	0	Format24bppRgb	305:MAME 0.233 (Jul 1 2021)	617fcaf1f0fb342d6525d97f989767f898aa63ca

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
md______.8_1	524288	3f3fa0d2	bb52111bcea5cd404d1e7adf0f3ebca596a251ac	video	1	good	no
md______.8_2	524288	14bb6b48	97025f0899c325d28ac75c54e81fd425b5002064	video	0	good	no
md______.8_3	524288	cde34cd1	7874fa070e52e6c34b770aee5bfec522eb3d72c9	video	100001	good	no
md______.8_4	524288	39bc1267	853e047406fed3c12f55a2e032e8c3d8188da182	video	100000	good	no
md_37s__.8_0	65536	bcd47ec0	2f32ae16eada13a826cde1162a56f43079f983fb	maincpu	0	good	no
mdsnda	524288	18651603	c6f7557a82cb49f3f001b43250129d10f4f6ab5a	okicard:msm6376	0	good	no
mdsndb	524288	2233d677	a787dc0bafa310df9467e4b8166274288fe94b4c	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000
audio	okicard	Barcrest Sampled Sound Program Card	1000000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Play Jingle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Jingle	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	1	no

£8 Advert?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
£8 Advert?	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	2	no

High Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Token Payout Proportion	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

Low Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Token Payout Proportion	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

High Prize Payout proportion (if available)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Prize Payout proportion (if available)	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Excess Token Lockout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Excess Token Lockout	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4mdice5	Miami Dice (BWB) (Release 5, Arcade Showcase, 20p-£8 Token - Fixed) (MPU4 Video)
v4mdice6	Miami Dice (BWB) (Release 6, Arcade Standard, 20p-£8 Token - Fixed) (MPU4 Video)
v4mdiceg	Miami Dice (BWB) (Release 8, Arcade Showcase, 20p-£8 Token - Fixed) (set 3) (MPU4 Video)
v4mdiceb	Miami Dice (BWB) (Release 8, Arcade Standard, 10p-£4 Cash - Fixed) (MPU4 Video)
v4mdicec	Miami Dice (BWB) (Release 8, Arcade Standard, 10p-£8 Token - Fixed) (MPU4 Video)
v4mdicen	Miami Dice (BWB) (Release 8, Arcade Standard, 20p-£10 Cash - Fixed) (set 1) (MPU4 Video)
v4mdiceo	Miami Dice (BWB) (Release 8, Arcade Standard, 20p-£10 Cash - Fixed) (set 2) (MPU4 Video)
v4mdiced	Miami Dice (BWB) (Release 8, Arcade Standard, 20p-£4 Cash - Fixed) (MPU4 Video)
v4mdicew	Miami Dice (BWB) (Release 8, Arcade Standard, 20p-£8 Cash - Fixed) (MPU4 Video)
v4mdicef	Miami Dice (BWB) (Release 8, Arcade Standard, 20p-£8 Token - Fixed) (set 1) (MPU4 Video)
v4mdiceh	Miami Dice (BWB) (Release 8, Arcade Standard, 20p-£8 Token - Fixed) (set 2) (MPU4 Video)
v4mdices	Miami Dice (BWB) (Release 8, Arcade Standard, 25p-£10 Cash - Fixed) (set 1) (MPU4 Video)
v4mdicet	Miami Dice (BWB) (Release 8, Arcade Standard, 25p-£10 Cash - Fixed) (set 2) (MPU4 Video)
v4mdicea	Miami Dice (BWB) (Release 8, Arcade Standard, 5p-£4 Cash - Fixed) (MPU4 Video)
v4mdicek	Miami Dice (BWB) (Release 8, S/Site Showcase, 20p-£8 Token - Fixed) (set 5) (MPU4 Video)
v4mdicep	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£10 Cash - Fixed) (set 1) (MPU4 Video)
v4mdiceq	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£10 Cash - Fixed) (set 2) (MPU4 Video)
v4mdicer	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£10 Cash - Fixed) (set 3) (MPU4 Video)
v4mdicee	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£4 Cash - Fixed) (MPU4 Video)
v4mdicei	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£8 Token - Fixed) (set 1) (MPU4 Video)
v4mdicej	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£8 Token - Fixed) (set 2) (MPU4 Video)
v4mdicel	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£8 Token - Fixed) (set 3) (MPU4 Video)
v4mdicem	Miami Dice (BWB) (Release 8, S/Site Standard, 20p-£8 Token - Fixed) (set 4) (MPU4 Video)
v4mdiceu	Miami Dice (BWB) (Release 8, S/Site Standard, 25p-£10 Cash - Fixed) (set 2) (MPU4 Video)
v4mdicev	Miami Dice (BWB) (Release 8, S/Site Standard, 25p-£10 Cash - Fixed) (set 3) (MPU4 Video)
v4mdiceger	Miami Dice (Nova, German) (MPU4 Video)
