Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 20p Switchable, £8 All Cash) (MPU4 Video)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4monte	barcrest/mpu4vid.cpp		no	no	no	yes	Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 20p Switchable, £8 All Cash) (MPU4 Video)	199?	BWB

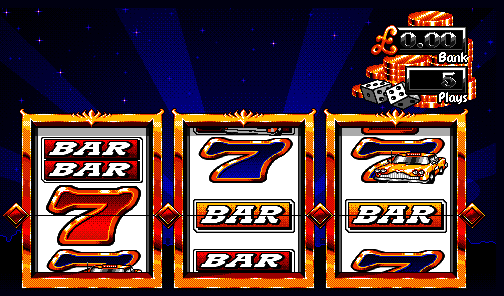

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
v4monte	21200	29/12/2025 11:31:49	504	296	96	96	0	Format24bppRgb	305:MAME 0.233 (Jul 1 2021)	436bfa4ab7193e0eb63d930f57ac26aa7ac40ce7

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
mnixes__.d_0	65536	44967b33	92d35d1b0edcc2eef1062468722c80ef8208b437	maincpu	0	good	no
mcobo4p1	524288	aaa594f0	2bcb13d8b93911a69c181d6f0be43397baf8cbc8	video	1	good	no
mcobo4p2	524288	ab94c22a	a8a0ed992c0b95fb763aea37f78c8d7a53732509	video	0	good	no
mcop3vd	524288	721e9ad1	fb926debd57301c9c0c3ecb9bb1ac36b0b60ee40	video	100001	good	no
mcop4vd	524288	6eba1107	c696b620781782c3b4045fe3550ab8e7e905661d	video	100000	good	no
mcosnda.bin	524288	801ea236	531841d6a4d67f502e93f8d74f3b247ccc46208f	okicard:msm6376	0	good	no
mcosndb.bin	524288	fcbad433	a8cd32ca5a17e3c35701a7eac3e9ef741aa04105	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000
audio	okicard	Barcrest Sampled Sound Program Card	1000000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Play Jingle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Jingle	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	1	no

£8 Advert?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
£8 Advert?	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	2	no

High Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Token Payout Proportion	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

Low Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Token Payout Proportion	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

High Prize Payout proportion (if available)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Prize Payout proportion (if available)	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Excess Token Lockout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Excess Token Lockout	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4monteger	Monte Carlo Or Bust (BWB) (German) (MPU4 Video)
v4montek	Monte Carlo Or Bust (BWB) (Release ?, set 1) (MPU4 Video)
v4montet	Monte Carlo Or Bust (BWB) (Release ?, set 10) (MPU4 Video)
v4monteu	Monte Carlo Or Bust (BWB) (Release ?, set 11) (MPU4 Video)
v4montev	Monte Carlo Or Bust (BWB) (Release ?, set 12) (MPU4 Video)
v4montew	Monte Carlo Or Bust (BWB) (Release ?, set 13) (MPU4 Video)
v4montex	Monte Carlo Or Bust (BWB) (Release ?, set 14) (MPU4 Video)
v4montey	Monte Carlo Or Bust (BWB) (Release ?, set 15) (MPU4 Video)
v4montez	Monte Carlo Or Bust (BWB) (Release ?, set 16) (MPU4 Video)
v4monteaa	Monte Carlo Or Bust (BWB) (Release ?, set 17) (MPU4 Video)
v4monteab	Monte Carlo Or Bust (BWB) (Release ?, set 18) (MPU4 Video)
v4monteac	Monte Carlo Or Bust (BWB) (Release ?, set 19) (MPU4 Video)
v4montel	Monte Carlo Or Bust (BWB) (Release ?, set 2) (MPU4 Video)
v4montead	Monte Carlo Or Bust (BWB) (Release ?, set 20) (MPU4 Video)
v4monteae	Monte Carlo Or Bust (BWB) (Release ?, set 21) (MPU4 Video)
v4monteaf	Monte Carlo Or Bust (BWB) (Release ?, set 22) (MPU4 Video)
v4monteag	Monte Carlo Or Bust (BWB) (Release ?, set 23) (MPU4 Video)
v4monteah	Monte Carlo Or Bust (BWB) (Release ?, set 24) (MPU4 Video)
v4monteai	Monte Carlo Or Bust (BWB) (Release ?, set 25) (MPU4 Video)
v4monteaj	Monte Carlo Or Bust (BWB) (Release ?, set 26) (MPU4 Video)
v4monteak	Monte Carlo Or Bust (BWB) (Release ?, set 27) (MPU4 Video)
v4monteal	Monte Carlo Or Bust (BWB) (Release ?, set 28) (MPU4 Video)
v4monteam	Monte Carlo Or Bust (BWB) (Release ?, set 29) (MPU4 Video)
v4montem	Monte Carlo Or Bust (BWB) (Release ?, set 3) (MPU4 Video)
v4montean	Monte Carlo Or Bust (BWB) (Release ?, set 30) (MPU4 Video)
v4monteao	Monte Carlo Or Bust (BWB) (Release ?, set 31) (MPU4 Video)
v4montezz	Monte Carlo Or Bust (BWB) (Release ?, set 32) (MPU4 Video)
v4monten	Monte Carlo Or Bust (BWB) (Release ?, set 4) (MPU4 Video)
v4monteo	Monte Carlo Or Bust (BWB) (Release ?, set 5) (MPU4 Video)
v4montep	Monte Carlo Or Bust (BWB) (Release ?, set 6) (MPU4 Video)
v4monteq	Monte Carlo Or Bust (BWB) (Release ?, set 7) (MPU4 Video)
v4monter	Monte Carlo Or Bust (BWB) (Release ?, set 8) (MPU4 Video)
v4montes	Monte Carlo Or Bust (BWB) (Release ?, set 9) (MPU4 Video)
v4monte5a	Monte Carlo Or Bust (BWB) (Release 5, Arcade Special, 20p Fixed, Cash and Tokens) (MPU4 Video)
v4monte5b	Monte Carlo Or Bust (BWB) (Release 5, Arcade Special, 20p Switchable, Cash and Tokens) (MPU4 Video)
v4monte5	Monte Carlo Or Bust (BWB) (Release 5, S/Site Standard, 20p Fixed, £8 All Cash) (MPU4 Video)
v4monte9h	Monte Carlo Or Bust (BWB) (Release 9, Arcade Special, Options 4 Cabinet, 20p Fixed, Cash and Tokens) (set 1) (MPU4 Video)
v4monte9g	Monte Carlo Or Bust (BWB) (Release 9, Arcade Special, Options 4 Cabinet, 20p Fixed, Cash and Tokens) (set 2) (MPU4 Video)
v4monte9c	Monte Carlo Or Bust (BWB) (Release 9, Arcade Special, Options 4 Cabinet, 20p Switchable, Cash and Tokens) (set 1) (MPU4 Video)
v4monte9d	Monte Carlo Or Bust (BWB) (Release 9, Arcade Special, Options 4 Cabinet, 20p Switchable, Cash and Tokens) (set 2) (MPU4 Video)
v4monte9j	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Fixed, £10 All Cash) (set 1) (MPU4 Video)
v4monte9k	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Fixed, £10 All Cash) (set 2) (MPU4 Video)
v4monte9	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Fixed, £8 All Cash) (MPU4 Video)
v4monte9o	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Fixed, Cash and Tokens) (set 1) (MPU4 Video)
v4monte9i	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Fixed, Cash and Tokens) (set 2) (MPU4 Video)
v4monte9f	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Switchable, £10 All Cash) (set 1) (MPU4 Video)
v4monte9n	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Switchable, £10 All Cash) (set 2) (MPU4 Video)
v4monte9a	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Switchable, £8 All Cash) (MPU4 Video)
v4monte9e	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Switchable, Cash and Tokens) (set 1) (MPU4 Video)
v4monte9b	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 20p Switchable, Cash and Tokens) (set 2) (MPU4 Video)
v4monte9l	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 25p Fixed, £10 All Cash) (set 1) (MPU4 Video)
v4monte9m	Monte Carlo Or Bust (BWB) (Release 9, S/Site Standard, Options 4 Cabinet, 25p Fixed, £10 All Cash) (set 2) (MPU4 Video)
v4monteba	Monte Carlo Or Bust (BWB) (Release B, Arcade Special, 20p Fixed, Cash and Tokens) (MPU4 Video)
v4montebb	Monte Carlo Or Bust (BWB) (Release B, Arcade Special, 20p Switchable, Cash and Tokens) (MPU4 Video)
v4monteb	Monte Carlo Or Bust (BWB) (Release B, S/Site Standard, 20p Fixed, £8 All Cash) (MPU4 Video)
v4montec	Monte Carlo Or Bust (BWB) (Release D, Arcade Special, 20p Fixed, Cash and Tokens) (MPU4 Video)
v4monted	Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 20p Fixed, £10 All Cash) (MPU4 Video)
v4montea	Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 20p Switchable, £10 All Cash) (MPU4 Video)
v4montee	Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 20p Switchable, Cash and Tokens) (MPU4 Video)
v4monteg	Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 25p Fixed, £10 All Cash) (MPU4 Video)

Monte Carlo Or Bust (BWB) (Release D, S/Site Standard, 20p Switchable, £8 All Cash) (MPU4 Video) - mame (0287) machine

machine

snap

display

driver

rom

chip

device_ref

sound

input

control

port, analog

configuration

Jackpot / Prize Key

setting

Percentage Key

setting

dipswitch

Play Jingle

location

value

£8 Advert?

location

value

High Token Payout Proportion

location

value

Low Token Payout Proportion

location

value

Target Percentage (if key not fitted)

location

value

Clear MPU Memory

location

value

Enable Cash Refill

location

value

Inhibit Win Banking

location

value

High Prize Payout proportion (if available)

location

value

Halt Payout when Empty

location

value

Coin Alarm Inhibit

location

value

Excess Token Lockout

location

value

Single Credit Entry

location

value

clones
