CD3000XL - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cd3000xl	akai/s3000.cpp		no	no	no	yes	CD3000XL	1994	Akai

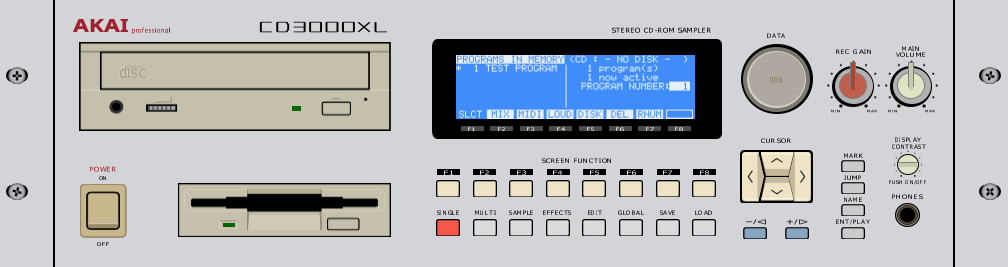

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cd3000xl	38081	22/01/2026 15:09:33	1008	267	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)	4ab57c335a643063dcebb66e980ad5f77190e969

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	240	64	80.000000	1228800	240	0	240	64	0	64	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
akai - cd3000xl - osv2.00.bin	524288	6d4cc4ff	89ee642e8e18e0ce218bb4766b620690323c26cc	maincpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V53A	32000000
cpu	maincpu:dmau	V5X DMAU	4000000
audio	fdc:0:35hd:flopsndout	Speaker
audio	fdc:0:35hd:floppysound	Floppy sound	44100
audio	scsi:4:cdrom:cdda	CD/DA	44100
audio	speaker	Speaker
audio	dsp	L7A1045 L6028 DSP-A	33868800

softwarelist

tag	name	status	filter
cd_list	s3000_cdrom	original

device_ref

tag	name
:maincpu	v53a
:maincpu:tcu	pit8254
:maincpu:tcu:counter0	pit_counter
:maincpu:tcu:counter1	pit_counter
:maincpu:tcu:counter2	pit_counter
:maincpu:dmau	v5x_dmau
:maincpu:icu	v5x_icu
:maincpu:scu	v5x_scu
:maincpu:brc_timer	timer
:tc	ipt_merge_all_hi
:screen	screen
:palette	palette
:fdc	upd72069
:fdc:0	floppy_connector
:fdc:0:35hd	floppy_35_hd
:fdc:0:35hd:flopsndout	speaker
:fdc:0:35hd:floppysound	flopsnd
:lcdc	hd61830
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:scsi	nscsi_bus
:scsi:0	nscsi_connector
:scsi:1	nscsi_connector
:scsi:2	nscsi_connector
:scsi:3	nscsi_connector
:scsi:4	nscsi_connector
:scsi:4:cdrom	scsi_cdrom
:scsi:4:cdrom:image	cdrom_image
:scsi:4:cdrom:cdda	cdda
:scsi:5	nscsi_connector
:scsi:5:harddisk	scsi_harddisk
:scsi:5:harddisk:image	harddisk_image
:scsi:6	nscsi_connector
:scsi:6:spc	mb89352
:scsi:7	nscsi_connector
:cd_list	software_list
:ledlatch	output_latch
:klcs	i8255
:speaker	speaker
:dsp	l7a1045
:dialtimer	timer
:wadcs	i8255

sound

channels
2

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:35hd	floppy_3_5	floppydisk	flop
midiin	mdin:midiin:midiinimg		midiin	min
midiout	mdout:midiout:midioutimg		midiout	mout
cdrom	scsi:4:cdrom:image	cdrom	cdrom	cdrm
harddisk	scsi:5:harddisk:image	scsi_hdd,hdd	harddisk	hard

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, dsk, ima, img, ufi, 360, ipf, hfe
midiin	mdin:midiin:midiinimg		mid, syx
midiout	mdout:midiout:midioutimg		mid
cdrom	scsi:4:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
harddisk	scsi:5:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
dial				no	0	255	100
keyboard		26		no

port, analog

port_tag	analog_masks
:C0
:C1
:C2
:C3
:C4
:C5
:C6
:C7
:DATAENTRY	255
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	35hd	floppy_35_hd	yes
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes
scsi:0	pc98_hd	scsi_pc98_hd	no
scsi:0	cfp1080s	cfp1080s	no
scsi:0	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:0	aplcdsc	scsi_cdrom_apple	no
scsi:0	aplcd150	aplcd150	no
scsi:0	tape	scsi_tape	no
scsi:0	s1410	scsi_s1410	no
scsi:0	dtc510	scsi_dtc510	no
scsi:0	harddisk	scsi_harddisk	no
scsi:0	cw7501	cw7501	no
scsi:0	crd254sh	crd254sh	no
scsi:0	cdr4210	cdr4210	no
scsi:0	smoc501	smoc501	no
scsi:0	cdd2000	cdd2000	no
scsi:0	cdrn820s	cdrn820s	no
scsi:0	cdu75s	cdu75s	no
scsi:0	cdrom	scsi_cdrom	no
scsi:0	cdu415	cdu415	no
scsi:0	cdu561_25	cdu561_25	no
scsi:1	pc98_hd	scsi_pc98_hd	no
scsi:1	cfp1080s	cfp1080s	no
scsi:1	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:1	aplcdsc	scsi_cdrom_apple	no
scsi:1	aplcd150	aplcd150	no
scsi:1	tape	scsi_tape	no
scsi:1	s1410	scsi_s1410	no
scsi:1	dtc510	scsi_dtc510	no
scsi:1	harddisk	scsi_harddisk	no
scsi:1	cw7501	cw7501	no
scsi:1	crd254sh	crd254sh	no
scsi:1	cdr4210	cdr4210	no
scsi:1	smoc501	smoc501	no
scsi:1	cdd2000	cdd2000	no
scsi:1	cdrn820s	cdrn820s	no
scsi:1	cdu75s	cdu75s	no
scsi:1	cdrom	scsi_cdrom	no
scsi:1	cdu415	cdu415	no
scsi:1	cdu561_25	cdu561_25	no
scsi:2	pc98_hd	scsi_pc98_hd	no
scsi:2	cfp1080s	cfp1080s	no
scsi:2	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:2	aplcdsc	scsi_cdrom_apple	no
scsi:2	aplcd150	aplcd150	no
scsi:2	tape	scsi_tape	no
scsi:2	s1410	scsi_s1410	no
scsi:2	dtc510	scsi_dtc510	no
scsi:2	harddisk	scsi_harddisk	no
scsi:2	cw7501	cw7501	no
scsi:2	crd254sh	crd254sh	no
scsi:2	cdr4210	cdr4210	no
scsi:2	smoc501	smoc501	no
scsi:2	cdd2000	cdd2000	no
scsi:2	cdrn820s	cdrn820s	no
scsi:2	cdu75s	cdu75s	no
scsi:2	cdrom	scsi_cdrom	no
scsi:2	cdu415	cdu415	no
scsi:2	cdu561_25	cdu561_25	no
scsi:3	pc98_hd	scsi_pc98_hd	no
scsi:3	cfp1080s	cfp1080s	no
scsi:3	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:3	aplcdsc	scsi_cdrom_apple	no
scsi:3	aplcd150	aplcd150	no
scsi:3	tape	scsi_tape	no
scsi:3	s1410	scsi_s1410	no
scsi:3	dtc510	scsi_dtc510	no
scsi:3	harddisk	scsi_harddisk	no
scsi:3	cw7501	cw7501	no
scsi:3	crd254sh	crd254sh	no
scsi:3	cdr4210	cdr4210	no
scsi:3	smoc501	smoc501	no
scsi:3	cdd2000	cdd2000	no
scsi:3	cdrn820s	cdrn820s	no
scsi:3	cdu75s	cdu75s	no
scsi:3	cdrom	scsi_cdrom	no
scsi:3	cdu415	cdu415	no
scsi:3	cdu561_25	cdu561_25	no
scsi:4	pc98_hd	scsi_pc98_hd	no
scsi:4	cfp1080s	cfp1080s	no
scsi:4	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:4	aplcdsc	scsi_cdrom_apple	no
scsi:4	aplcd150	aplcd150	no
scsi:4	tape	scsi_tape	no
scsi:4	s1410	scsi_s1410	no
scsi:4	dtc510	scsi_dtc510	no
scsi:4	harddisk	scsi_harddisk	no
scsi:4	cw7501	cw7501	no
scsi:4	crd254sh	crd254sh	no
scsi:4	cdr4210	cdr4210	no
scsi:4	smoc501	smoc501	no
scsi:4	cdd2000	cdd2000	no
scsi:4	cdrn820s	cdrn820s	no
scsi:4	cdu75s	cdu75s	no
scsi:4	cdrom	scsi_cdrom	yes
scsi:4	cdu415	cdu415	no
scsi:4	cdu561_25	cdu561_25	no
scsi:5	pc98_hd	scsi_pc98_hd	no
scsi:5	cfp1080s	cfp1080s	no
scsi:5	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:5	aplcdsc	scsi_cdrom_apple	no
scsi:5	aplcd150	aplcd150	no
scsi:5	tape	scsi_tape	no
scsi:5	s1410	scsi_s1410	no
scsi:5	dtc510	scsi_dtc510	no
scsi:5	harddisk	scsi_harddisk	yes
scsi:5	cw7501	cw7501	no
scsi:5	crd254sh	crd254sh	no
scsi:5	cdr4210	cdr4210	no
scsi:5	smoc501	smoc501	no
scsi:5	cdd2000	cdd2000	no
scsi:5	cdrn820s	cdrn820s	no
scsi:5	cdu75s	cdu75s	no
scsi:5	cdrom	scsi_cdrom	no
scsi:5	cdu415	cdu415	no
scsi:5	cdu561_25	cdu561_25	no
scsi:7	pc98_hd	scsi_pc98_hd	no
scsi:7	cfp1080s	cfp1080s	no
scsi:7	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:7	aplcdsc	scsi_cdrom_apple	no
scsi:7	aplcd150	aplcd150	no
scsi:7	tape	scsi_tape	no
scsi:7	s1410	scsi_s1410	no
scsi:7	dtc510	scsi_dtc510	no
scsi:7	harddisk	scsi_harddisk	no
scsi:7	cw7501	cw7501	no
scsi:7	crd254sh	crd254sh	no
scsi:7	cdr4210	cdr4210	no
scsi:7	smoc501	smoc501	no
scsi:7	cdd2000	cdd2000	no
scsi:7	cdrn820s	cdrn820s	no
scsi:7	cdu75s	cdu75s	no
scsi:7	cdrom	scsi_cdrom	no
scsi:7	cdu415	cdu415	no
scsi:7	cdu561_25	cdu561_25	no

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
