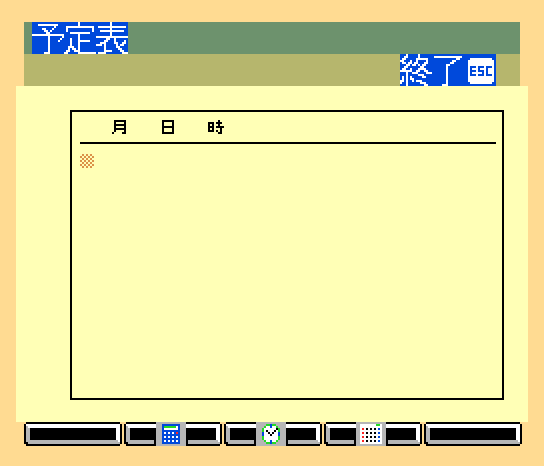

HB-F1 (MSX2, Japan) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
hbf1	msx/msx2.cpp		no	no	no	yes	HB-F1 (MSX2, Japan)	1986	Sony	hbf1xd	hbf1xd

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	543	465	59.922749	21477272	684	0	543	524	10	475	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional
f1bios.rom	32768	9b3e7b97	0081ea0d25bc5cd8d70b60ad8cfdc7307812c0fd	mainrom	good	no
f1ext.rom	16384	4a48779c	b8e30d604d319d511cbfbc61e5d8c38fbb9c5a33	subrom	good	no
f1note1.rom	16384	84810ea8	9db72bb78792595a12499c821048504dc96ef848	firmware1	good	no
f1note2.rom	32768	e32e5ee0	aa78fc9bcd2343f84cf790310a768ee47f90c841	firmware2	good	no
f1note3.rom	32768	73eb9329	58accf41a90693874b86ce98d8d43c27beb8b6dc	firmware3	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3579545
audio	cartslot1	MSX Cartridge slot	3579545
audio	cartslot2	MSX Cartridge slot	3579545
audio	speaker	Speaker
audio	dac	1-Bit DAC
audio	ay8910	YM2149 SSG	1789772
audio	cassette	Cassette

softwarelist

tag	name	status
cass_list	msx2_cass	original
msx1_cass_list	msx1_cass	compatible
cart_list	msx2_cart	original
msx1_cart_list	msx1_cart	compatible

device_ref

name
msx_slot_rom
msx_slot_cartridge
msx_slot_cartridge
msx_slot_rom
msx_slot_rom
msx_slot_rom
msx_slot_rom
msx_slot_ram
msx_s1985
z80
ipt_merge_any_hi
i8255
screen
speaker
dac
ym2149
msx_general_purpose_port
msx_joystick
msx_general_purpose_port
msx_joystick
centronics
centronics_printer
printer_image
output_latch
input_buffer
output_latch
cassette_image
rp5c01
v9938
software_list
software_list
software_list
software_list

sound

channels
1

device, instance

type	tag	interface	name	briefname
cartridge	cartslot1	msx_cart	cartridge1	cart1
cartridge	cartslot2	msx_cart	cartridge2	cart2
printout	centronics:printer:printer		printout	prin
cassette	cassette	msx_cass	cassette	cass

device, extension

type	tag	interface	extension_names
cartridge	cartslot1	msx_cart	mx1, bin, rom
cartridge	cartslot2	msx_cart	mx1, bin, rom
printout	centronics:printer:printer		prn
cassette	cassette	msx_cass	wav, flac, tap, cas

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse
joy	1	2	8	no
keyboard	1	72		no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:KEY0
:KEY1
:KEY10
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:gen1:joystick:JOY
:gen2:joystick:JOY

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
cartslot1	ucn01	msx_cart_ucn01	no
cartslot1	softcard	msx_cart_softcard	no
cartslot1	moonsound	msx_moonsound	no
cartslot1	franky	msx_cart_franky	no
cartslot1	beepack	msx_cart_beepack	no
cartslot1	ram16k	msx_cart_16k_ram	no
cartslot1	mm768k	msx_cart_768k_mm_ram	no
cartslot1	mmm	msx_cart_mmm	no
cartslot1	sunrise_ataide	msx_cart_sunrise_ataide	no
cartslot1	slotexp	msx_cart_slotexpander	no
cartslot1	mm1024k	msx_cart_1024k_mm_ram	no
cartslot1	mm4096k	msx_cart_4096k_mm_ram	no
cartslot1	mm512k	msx_cart_512k_mm_ram	no
cartslot1	hbi55	msx_cart_hbi55	no
cartslot1	mm256k	msx_cart_256k_mm_ram	no
cartslot1	double_ram	msx_cart_double_ram	no
cartslot1	ram64k	msx_cart_64k_ram	no
cartslot1	ram32k	msx_cart_32k_ram	no
cartslot1	ram48k	msx_cart_48k_ram	no
cartslot1	mm2048k	msx_cart_2048k_mm_ram	no
cartslot1	bm_012	msx_cart_bm_012	no
cartslot2	ucn01	msx_cart_ucn01	no
cartslot2	softcard	msx_cart_softcard	no
cartslot2	moonsound	msx_moonsound	no
cartslot2	franky	msx_cart_franky	no
cartslot2	beepack	msx_cart_beepack	no
cartslot2	ram16k	msx_cart_16k_ram	no
cartslot2	mm768k	msx_cart_768k_mm_ram	no
cartslot2	mmm	msx_cart_mmm	no
cartslot2	sunrise_ataide	msx_cart_sunrise_ataide	no
cartslot2	slotexp	msx_cart_slotexpander	no
cartslot2	mm1024k	msx_cart_1024k_mm_ram	no
cartslot2	mm4096k	msx_cart_4096k_mm_ram	no
cartslot2	mm512k	msx_cart_512k_mm_ram	no
cartslot2	hbi55	msx_cart_hbi55	no
cartslot2	mm256k	msx_cart_256k_mm_ram	no
cartslot2	double_ram	msx_cart_double_ram	no
cartslot2	ram64k	msx_cart_64k_ram	no
cartslot2	ram32k	msx_cart_32k_ram	no
cartslot2	ram48k	msx_cart_48k_ram	no
cartslot2	mm2048k	msx_cart_2048k_mm_ram	no
cartslot2	bm_012	msx_cart_bm_012	no
gen1	vaus	msx_vaus	no
gen1	townspad	msx_townspad	no
gen1	towns6b	msx_towns6b	no
gen1	sega	msx_segactrl	no
gen1	mouse	msx_mouse	no
gen1	magickey	msx_magickey	no
gen1	libbler	msx_libblerpad	no
gen1	martypad	msx_martypad	no
gen1	joystick	msx_joystick	yes
gen1	xe1ap	msx_xe1ap	no
gen1	hypershot	msx_hypershot	no
gen2	vaus	msx_vaus	no
gen2	townspad	msx_townspad	no
gen2	towns6b	msx_towns6b	no
gen2	sega	msx_segactrl	no
gen2	mouse	msx_mouse	no
gen2	magickey	msx_magickey	no
gen2	libbler	msx_libblerpad	no
gen2	martypad	msx_martypad	no
gen2	joystick	msx_joystick	yes
gen2	xe1ap	msx_xe1ap	no
gen2	hypershot	msx_hypershot	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
