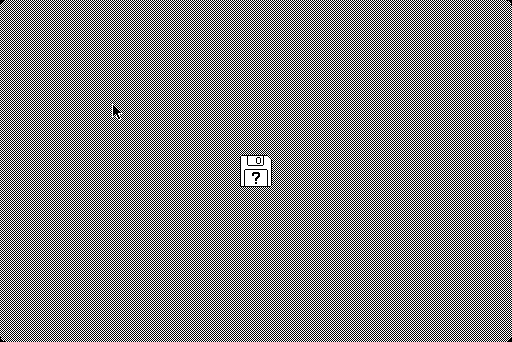

Macintosh Classic II - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
macclas2	apple/maclc.cpp		no	no	no	yes	Macintosh Classic II	1991	Apple Computer

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
v8:screen	raster	0	512	342	60.147420	15667200	704	0	512	370	0	342	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
341-0867__ba16__=c=apple_91.romhh.27c010.u25	131072	88230887	8f45f6d7eb6a8ec9242a46db4773af1d154409c6	bootrom	0	good	no
341-0866__5be9__=c=apple_91.rommh.27c010.u24	131072	eae68c36	e6ce79647dfe7e66590a012836d0b6e985ff672b	bootrom	1	good	no
341-0865__821e__=c=apple_91.romml.27c010.u23	131072	cb306c01	4d6e409995fd9a4aa9afda0fd790a5b09b1c2aca	bootrom	2	good	no
341-0864__6fc6__=c=apple_91.romll.27c010.u22	131072	21a51e72	bb513c1a5b8a41c7534d66aeacaeea47f58dae92	bootrom	3	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68030	15667200
cpu	egret:egret	Motorola M68HC05E1	4194304
audio	scsi:3:cdrom:cdda	CD/DA	44100
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	dfac	Apple Digitally Filtered Audio Chip	22257
audio	v8	Apple Eagle system ASIC	15667200
audio	v8:asc	ASC	15667200
audio	fdc:0:35hd:flopsndout	Speaker
audio	fdc:0:35hd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
hdd_list	mac_hdd	original
cd_list	mac_cdrom	original	MC68030,MC68030_32
flop35hd_list	mac_hdflop	original

device_ref

name
m68030
ram
nscsi_bus
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
scsi_cdrom_apple
cdrom_image
cdda
nscsi_connector
nscsi_connector
nscsi_connector
scsi_harddisk
harddisk_image
nscsi_connector
ncr53c80
scsipdma
software_list
software_list
software_list
scc85c30
z80scc_channel
z80scc_channel
rs232
rs232
speaker
speaker
apldfac
v8eagle
screen
palette
r65nc22
asc
pseudovia
macadb
egret
m68hc05e1
swim1
floppy_connector
mfd75w
speaker
flopsnd
floppy_connector

sound

channels
3

feature

type	status	overall
sound		imperfect

ramoption

name	default
6M
8M
10M
4M	yes

device, instance

type	tag	interface	name	briefname
cdrom	scsi:3:cdrom:image	cdrom	cdrom	cdrm
harddisk	scsi:6:harddisk:image	scsi_hdd,hdd	harddisk	hard
floppydisk	fdc:0:35hd	floppy_3_5	floppydisk	flop

device, extension

type	tag	interface	extension_names
cdrom	scsi:3:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
harddisk	scsi:6:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi
floppydisk	fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, dc42, woz, moof, 2mg

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mouse		2		no	0	255	100
keyboard		101		no

port, analog

port_tag	analog_masks
:config
:macadb:KEY0
:macadb:KEY1
:macadb:KEY2
:macadb:KEY3
:macadb:KEY4
:macadb:KEY5
:macadb:KEY6
:macadb:KEY7
:macadb:MOUSE0
:macadb:MOUSE1	255
:macadb:MOUSE2	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
scsi:0	cfp1080s	cfp1080s	no
scsi:0	aplcdsc	scsi_cdrom_apple	no
scsi:0	aplcd150	aplcd150	no
scsi:0	tape	scsi_tape	no
scsi:0	s1410	scsi_s1410	no
scsi:0	harddisk	scsi_harddisk	no
scsi:0	cw7501	cw7501	no
scsi:0	crd254sh	crd254sh	no
scsi:0	cdr4210	cdr4210	no
scsi:0	cdrn820s	cdrn820s	no
scsi:0	cdu75s	cdu75s	no
scsi:0	cdrom	scsi_cdrom_apple	no
scsi:0	cdu415	cdu415	no
scsi:0	cdu561_25	cdu561_25	no
scsi:0	cdd2000	cdd2000	no
scsi:0	smoc501	smoc501	no
scsi:1	cfp1080s	cfp1080s	no
scsi:1	aplcdsc	scsi_cdrom_apple	no
scsi:1	aplcd150	aplcd150	no
scsi:1	tape	scsi_tape	no
scsi:1	s1410	scsi_s1410	no
scsi:1	harddisk	scsi_harddisk	no
scsi:1	cw7501	cw7501	no
scsi:1	crd254sh	crd254sh	no
scsi:1	cdr4210	cdr4210	no
scsi:1	cdrn820s	cdrn820s	no
scsi:1	cdu75s	cdu75s	no
scsi:1	cdrom	scsi_cdrom_apple	no
scsi:1	cdu415	cdu415	no
scsi:1	cdu561_25	cdu561_25	no
scsi:1	cdd2000	cdd2000	no
scsi:1	smoc501	smoc501	no
scsi:2	cfp1080s	cfp1080s	no
scsi:2	aplcdsc	scsi_cdrom_apple	no
scsi:2	aplcd150	aplcd150	no
scsi:2	tape	scsi_tape	no
scsi:2	s1410	scsi_s1410	no
scsi:2	harddisk	scsi_harddisk	no
scsi:2	cw7501	cw7501	no
scsi:2	crd254sh	crd254sh	no
scsi:2	cdr4210	cdr4210	no
scsi:2	cdrn820s	cdrn820s	no
scsi:2	cdu75s	cdu75s	no
scsi:2	cdrom	scsi_cdrom_apple	no
scsi:2	cdu415	cdu415	no
scsi:2	cdu561_25	cdu561_25	no
scsi:2	cdd2000	cdd2000	no
scsi:2	smoc501	smoc501	no
scsi:4	cfp1080s	cfp1080s	no
scsi:4	aplcdsc	scsi_cdrom_apple	no
scsi:4	aplcd150	aplcd150	no
scsi:4	tape	scsi_tape	no
scsi:4	s1410	scsi_s1410	no
scsi:4	harddisk	scsi_harddisk	no
scsi:4	cw7501	cw7501	no
scsi:4	crd254sh	crd254sh	no
scsi:4	cdr4210	cdr4210	no
scsi:4	cdrn820s	cdrn820s	no
scsi:4	cdu75s	cdu75s	no
scsi:4	cdrom	scsi_cdrom_apple	no
scsi:4	cdu415	cdu415	no
scsi:4	cdu561_25	cdu561_25	no
scsi:4	cdd2000	cdd2000	no
scsi:4	smoc501	smoc501	no
scsi:5	cfp1080s	cfp1080s	no
scsi:5	aplcdsc	scsi_cdrom_apple	no
scsi:5	aplcd150	aplcd150	no
scsi:5	tape	scsi_tape	no
scsi:5	s1410	scsi_s1410	no
scsi:5	harddisk	scsi_harddisk	no
scsi:5	cw7501	cw7501	no
scsi:5	crd254sh	crd254sh	no
scsi:5	cdr4210	cdr4210	no
scsi:5	cdrn820s	cdrn820s	no
scsi:5	cdu75s	cdu75s	no
scsi:5	cdrom	scsi_cdrom_apple	no
scsi:5	cdu415	cdu415	no
scsi:5	cdu561_25	cdu561_25	no
scsi:5	cdd2000	cdd2000	no
scsi:5	smoc501	smoc501	no
scsi:6	cfp1080s	cfp1080s	no
scsi:6	aplcdsc	scsi_cdrom_apple	no
scsi:6	aplcd150	aplcd150	no
scsi:6	tape	scsi_tape	no
scsi:6	s1410	scsi_s1410	no
scsi:6	harddisk	scsi_harddisk	yes
scsi:6	cw7501	cw7501	no
scsi:6	crd254sh	crd254sh	no
scsi:6	cdr4210	cdr4210	no
scsi:6	cdrn820s	cdrn820s	no
scsi:6	cdu75s	cdu75s	no
scsi:6	cdrom	scsi_cdrom_apple	no
scsi:6	cdu415	cdu415	no
scsi:6	cdu561_25	cdu561_25	no
scsi:6	cdd2000	cdd2000	no
scsi:6	smoc501	smoc501	no
printer	terminal	serial_terminal	no
printer	sunkbd	sunkbd_adaptor	no
printer	dec_loopback	dec_rs232_loopback	no
printer	ie15	ie15_terminal	no
printer	null_modem	null_modem	no
printer	keyboard	serial_keyboard	no
printer	patch	rs232_patch_box	no
printer	swtpc8212	swtpc8212_terminal	no
printer	printer	serial_printer	no
printer	scorpion	scorpion_ic	no
printer	loopback	rs232_loopback	no
printer	mockingboard	mockingboardd	no
printer	msystems_mouse	rs232_mouse_hle_msystems	no
printer	nss_tvi	nss_tvinterface	no
printer	rs232_sync_io	rs232_sync_io	no
printer	pty	pseudo_terminal	no
printer	rs_printer	rs_serial_printer	no
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	dec_loopback	dec_rs232_loopback	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	no
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
modem	rs_printer	rs_serial_printer	no
fdc:0	35hd	mfd75w	yes
fdc:0	35dd	mfd51w	no
fdc:0	35sd	oa_d34v	no
fdc:1	35hd	mfd75w	no
fdc:1	35dd	mfd51w	no
fdc:1	35sd	oa_d34v	no

configuration

FPU

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
FPU	config	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No FPU	0	yes
FPU Present	1	no
