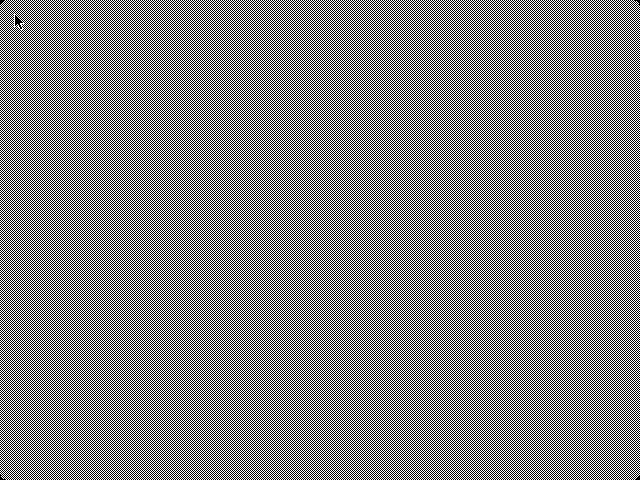

Macintosh IIx - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
maciix	apple/macii.cpp		no	no	no	yes	Macintosh IIx	1988	Apple Computer	mac2fdhd	mac2fdhd

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
nb9:mdc824:screen	raster	0	640	480	66.662467	30238095	864	0	640	525	0	480	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
97221136.rom	262144	ce3b966f	753b94351d94c369616c2c87b19d568dc5e2764e	bootrom	0	good	no	97221136.rom

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68030	15667200
cpu	adbmodem:adbmodem	GI PIC1654S	3686400
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	asc	ASC	15667200
audio	fdc:0:35hd:flopsndout	Speaker
audio	fdc:0:35hd:floppysound	Floppy sound	44100
audio	fdc:1:35hd:flopsndout	Speaker
audio	fdc:1:35hd:floppysound	Floppy sound	44100
audio	scsi:3:cdrom:cdda	CD/DA	44100

softwarelist

tag	name	status	filter
hdd_list	mac_hdd	original	MC68030
cd_list	mac_cdrom	original	MC68030
flop_mac35_orig	mac_flop_orig	original	MC68030
flop_mac35_clean	mac_flop_clcracked	original	MC68030
flop35_list	mac_flop	original	MC68030
flop35hd_list	mac_hdflop	original	MC68020

device_ref

name
m68030
speaker
speaker
asc
rtc3430042
swim1
floppy_connector
mfd75w
speaker
flopsnd
floppy_connector
mfd75w
speaker
flopsnd
scc85c30
z80scc_channel
z80scc_channel
rs232
rs232
nscsi_bus
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
scsi_cdrom_apple
cdrom_image
cdda
nscsi_connector
nscsi_connector
nscsi_connector
scsi_harddisk
harddisk_image
nscsi_connector
ncr53c80
scsipdma
software_list
software_list
nubus
nubus_slot
nb_mdc824
screen
nubus_slot
nubus_slot
nubus_slot
nubus_slot
nubus_slot
r65nc22
r65nc22
adbmodem
pic1654s
macadb
ram
software_list
software_list
software_list
software_list

sound

channels
4

feature

type	status	overall
sound		imperfect

ramoption

name	default
1M
4M
5M
8M
16M
17M
20M
32M
64M
65M
68M
80M
128M
2M	yes

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:35hd	floppy_3_5	floppydisk1	flop1
floppydisk	fdc:1:35hd	floppy_3_5	floppydisk2	flop2
cdrom	scsi:3:cdrom:image	cdrom	cdrom	cdrm
harddisk	scsi:6:harddisk:image	scsi_hdd,hdd	harddisk	hard

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, dc42, woz, moof, 2mg
floppydisk	fdc:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, dc42, woz, moof, 2mg
cdrom	scsi:3:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
harddisk	scsi:6:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mouse		2		no	0	255	100
keyboard		101		no

port, analog

port_tag	analog_masks
:macadb:KEY0
:macadb:KEY1
:macadb:KEY2
:macadb:KEY3
:macadb:KEY4
:macadb:KEY5
:macadb:KEY6
:macadb:KEY7
:macadb:MOUSE0
:macadb:MOUSE1	255
:macadb:MOUSE2	255
:nb9:mdc824:CONFIG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
fdc:0	35hd	mfd75w	yes
fdc:0	35dd	mfd51w	no
fdc:0	35sd	oa_d34v	no
fdc:1	35hd	mfd75w	yes
fdc:1	35dd	mfd51w	no
fdc:1	35sd	oa_d34v	no
printer	terminal	serial_terminal	no
printer	sunkbd	sunkbd_adaptor	no
printer	dec_loopback	dec_rs232_loopback	no
printer	ie15	ie15_terminal	no
printer	null_modem	null_modem	no
printer	keyboard	serial_keyboard	no
printer	patch	rs232_patch_box	no
printer	swtpc8212	swtpc8212_terminal	no
printer	printer	serial_printer	no
printer	scorpion	scorpion_ic	no
printer	loopback	rs232_loopback	no
printer	mockingboard	mockingboardd	no
printer	msystems_mouse	rs232_mouse_hle_msystems	no
printer	nss_tvi	nss_tvinterface	no
printer	rs232_sync_io	rs232_sync_io	no
printer	pty	pseudo_terminal	no
printer	rs_printer	rs_serial_printer	no
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	dec_loopback	dec_rs232_loopback	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	no
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
modem	rs_printer	rs_serial_printer	no
scsi:0	cfp1080s	cfp1080s	no
scsi:0	aplcdsc	scsi_cdrom_apple	no
scsi:0	aplcd150	aplcd150	no
scsi:0	tape	scsi_tape	no
scsi:0	s1410	scsi_s1410	no
scsi:0	harddisk	scsi_harddisk	no
scsi:0	cw7501	cw7501	no
scsi:0	crd254sh	crd254sh	no
scsi:0	cdr4210	cdr4210	no
scsi:0	cdrn820s	cdrn820s	no
scsi:0	cdu75s	cdu75s	no
scsi:0	cdrom	scsi_cdrom_apple	no
scsi:0	cdu415	cdu415	no
scsi:0	cdu561_25	cdu561_25	no
scsi:0	cdd2000	cdd2000	no
scsi:0	smoc501	smoc501	no
scsi:1	cfp1080s	cfp1080s	no
scsi:1	aplcdsc	scsi_cdrom_apple	no
scsi:1	aplcd150	aplcd150	no
scsi:1	tape	scsi_tape	no
scsi:1	s1410	scsi_s1410	no
scsi:1	harddisk	scsi_harddisk	no
scsi:1	cw7501	cw7501	no
scsi:1	crd254sh	crd254sh	no
scsi:1	cdr4210	cdr4210	no
scsi:1	cdrn820s	cdrn820s	no
scsi:1	cdu75s	cdu75s	no
scsi:1	cdrom	scsi_cdrom_apple	no
scsi:1	cdu415	cdu415	no
scsi:1	cdu561_25	cdu561_25	no
scsi:1	cdd2000	cdd2000	no
scsi:1	smoc501	smoc501	no
scsi:2	cfp1080s	cfp1080s	no
scsi:2	aplcdsc	scsi_cdrom_apple	no
scsi:2	aplcd150	aplcd150	no
scsi:2	tape	scsi_tape	no
scsi:2	s1410	scsi_s1410	no
scsi:2	harddisk	scsi_harddisk	no
scsi:2	cw7501	cw7501	no
scsi:2	crd254sh	crd254sh	no
scsi:2	cdr4210	cdr4210	no
scsi:2	cdrn820s	cdrn820s	no
scsi:2	cdu75s	cdu75s	no
scsi:2	cdrom	scsi_cdrom_apple	no
scsi:2	cdu415	cdu415	no
scsi:2	cdu561_25	cdu561_25	no
scsi:2	cdd2000	cdd2000	no
scsi:2	smoc501	smoc501	no
scsi:4	cfp1080s	cfp1080s	no
scsi:4	aplcdsc	scsi_cdrom_apple	no
scsi:4	aplcd150	aplcd150	no
scsi:4	tape	scsi_tape	no
scsi:4	s1410	scsi_s1410	no
scsi:4	harddisk	scsi_harddisk	no
scsi:4	cw7501	cw7501	no
scsi:4	crd254sh	crd254sh	no
scsi:4	cdr4210	cdr4210	no
scsi:4	cdrn820s	cdrn820s	no
scsi:4	cdu75s	cdu75s	no
scsi:4	cdrom	scsi_cdrom_apple	no
scsi:4	cdu415	cdu415	no
scsi:4	cdu561_25	cdu561_25	no
scsi:4	cdd2000	cdd2000	no
scsi:4	smoc501	smoc501	no
scsi:5	cfp1080s	cfp1080s	no
scsi:5	aplcdsc	scsi_cdrom_apple	no
scsi:5	aplcd150	aplcd150	no
scsi:5	tape	scsi_tape	no
scsi:5	s1410	scsi_s1410	no
scsi:5	harddisk	scsi_harddisk	no
scsi:5	cw7501	cw7501	no
scsi:5	crd254sh	crd254sh	no
scsi:5	cdr4210	cdr4210	no
scsi:5	cdrn820s	cdrn820s	no
scsi:5	cdu75s	cdu75s	no
scsi:5	cdrom	scsi_cdrom_apple	no
scsi:5	cdu415	cdu415	no
scsi:5	cdu561_25	cdu561_25	no
scsi:5	cdd2000	cdd2000	no
scsi:5	smoc501	smoc501	no
scsi:6	cfp1080s	cfp1080s	no
scsi:6	aplcdsc	scsi_cdrom_apple	no
scsi:6	aplcd150	aplcd150	no
scsi:6	tape	scsi_tape	no
scsi:6	s1410	scsi_s1410	no
scsi:6	harddisk	scsi_harddisk	yes
scsi:6	cw7501	cw7501	no
scsi:6	crd254sh	crd254sh	no
scsi:6	cdr4210	cdr4210	no
scsi:6	cdrn820s	cdrn820s	no
scsi:6	cdu75s	cdu75s	no
scsi:6	cdrom	scsi_cdrom_apple	no
scsi:6	cdu415	cdu415	no
scsi:6	cdu561_25	cdu561_25	no
scsi:6	cdd2000	cdd2000	no
scsi:6	smoc501	smoc501	no
nb9	pc8	nb_pcs8	no
nb9	thunder4gx	nb_thungx	no
nb9	bootbug	nb_btbug	no
nb9	m2video	nb_m2vc	no
nb9	enetnb	nb_aenet	no
nb9	mdc48	nb_mdc48	no
nb9	mdc824	nb_mdc824	yes
nb9	vikbw	nb_vikbw	no
nb9	specpdq	nb_spdq	no
nb9	m2hires	nb_m2hr	no
nb9	quadralink	nb_qdlink	no
nb9	image	nb_image	no
nb9	workstation	nb_wkstn	no
nb9	spec8s3	nb_sp8s3	no
nb9	laserview	nb_laserview	no
nb9	radiustpd	nb_rtpd	no
nb9	asmc3nb	nb_amc3b	no
nb9	cb264	nb_c264	no
nb9	portrait	nb_wspt	no
nba	pc8	nb_pcs8	no
nba	thunder4gx	nb_thungx	no
nba	bootbug	nb_btbug	no
nba	m2video	nb_m2vc	no
nba	enetnb	nb_aenet	no
nba	mdc48	nb_mdc48	no
nba	mdc824	nb_mdc824	no
nba	vikbw	nb_vikbw	no
nba	specpdq	nb_spdq	no
nba	m2hires	nb_m2hr	no
nba	quadralink	nb_qdlink	no
nba	image	nb_image	no
nba	workstation	nb_wkstn	no
nba	spec8s3	nb_sp8s3	no
nba	laserview	nb_laserview	no
nba	radiustpd	nb_rtpd	no
nba	asmc3nb	nb_amc3b	no
nba	cb264	nb_c264	no
nba	portrait	nb_wspt	no
nbb	pc8	nb_pcs8	no
nbb	thunder4gx	nb_thungx	no
nbb	bootbug	nb_btbug	no
nbb	m2video	nb_m2vc	no
nbb	enetnb	nb_aenet	no
nbb	mdc48	nb_mdc48	no
nbb	mdc824	nb_mdc824	no
nbb	vikbw	nb_vikbw	no
nbb	specpdq	nb_spdq	no
nbb	m2hires	nb_m2hr	no
nbb	quadralink	nb_qdlink	no
nbb	image	nb_image	no
nbb	workstation	nb_wkstn	no
nbb	spec8s3	nb_sp8s3	no
nbb	laserview	nb_laserview	no
nbb	radiustpd	nb_rtpd	no
nbb	asmc3nb	nb_amc3b	no
nbb	cb264	nb_c264	no
nbb	portrait	nb_wspt	no
nbc	pc8	nb_pcs8	no
nbc	thunder4gx	nb_thungx	no
nbc	bootbug	nb_btbug	no
nbc	m2video	nb_m2vc	no
nbc	enetnb	nb_aenet	no
nbc	mdc48	nb_mdc48	no
nbc	mdc824	nb_mdc824	no
nbc	vikbw	nb_vikbw	no
nbc	specpdq	nb_spdq	no
nbc	m2hires	nb_m2hr	no
nbc	quadralink	nb_qdlink	no
nbc	image	nb_image	no
nbc	workstation	nb_wkstn	no
nbc	spec8s3	nb_sp8s3	no
nbc	laserview	nb_laserview	no
nbc	radiustpd	nb_rtpd	no
nbc	asmc3nb	nb_amc3b	no
nbc	cb264	nb_c264	no
nbc	portrait	nb_wspt	no
nbd	pc8	nb_pcs8	no
nbd	thunder4gx	nb_thungx	no
nbd	bootbug	nb_btbug	no
nbd	m2video	nb_m2vc	no
nbd	enetnb	nb_aenet	no
nbd	mdc48	nb_mdc48	no
nbd	mdc824	nb_mdc824	no
nbd	vikbw	nb_vikbw	no
nbd	specpdq	nb_spdq	no
nbd	m2hires	nb_m2hr	no
nbd	quadralink	nb_qdlink	no
nbd	image	nb_image	no
nbd	workstation	nb_wkstn	no
nbd	spec8s3	nb_sp8s3	no
nbd	laserview	nb_laserview	no
nbd	radiustpd	nb_rtpd	no
nbd	asmc3nb	nb_amc3b	no
nbd	cb264	nb_c264	no
nbd	portrait	nb_wspt	no
nbe	pc8	nb_pcs8	no
nbe	thunder4gx	nb_thungx	no
nbe	bootbug	nb_btbug	no
nbe	m2video	nb_m2vc	no
nbe	enetnb	nb_aenet	no
nbe	mdc48	nb_mdc48	no
nbe	mdc824	nb_mdc824	no
nbe	vikbw	nb_vikbw	no
nbe	specpdq	nb_spdq	no
nbe	m2hires	nb_m2hr	no
nbe	quadralink	nb_qdlink	no
nbe	image	nb_image	no
nbe	workstation	nb_wkstn	no
nbe	spec8s3	nb_sp8s3	no
nbe	laserview	nb_laserview	no
nbe	radiustpd	nb_rtpd	no
nbe	asmc3nb	nb_amc3b	no
nbe	cb264	nb_c264	no
nbe	portrait	nb_wspt	no

configuration

Attached monitor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Attached monitor	nb9:mdc824:CONFIG	15

setting

name	value	default
Mac 21" Color Display (1152×870)	0	no
Mac Portrait Display (B&W 15" 640×870)	1	no
Mac RGB Display (12" 512×384)	2	no
Mac Two-Page Display (B&W 21" 1152×870)	3	no
NTSC Monitor (512×384, 640×480)	4	no
Mac Hi-Res Display (12-14" 640×480)	6	yes
PAL Encoder (640×480, 768×576)	10	no
NTSC Encoder (512×384, 640×480)	11	no
Mac 16" Color Display (832×624)	13	no
PAL Monitor (640×480, 768×576)	14	no

VRAM size

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
VRAM size	nb9:mdc824:CONFIG	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
512 kB (4•8)	0	no
1 MB (8•24)	16	yes

CLUT address read

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CLUT address read	nb9:mdc824:CONFIG	32

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Disable	0	yes
Enable	32	no
