Macintosh LC II - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
maclc2	apple/maclc.cpp		no	no	no	yes	Macintosh LC II	1991	Apple Computer

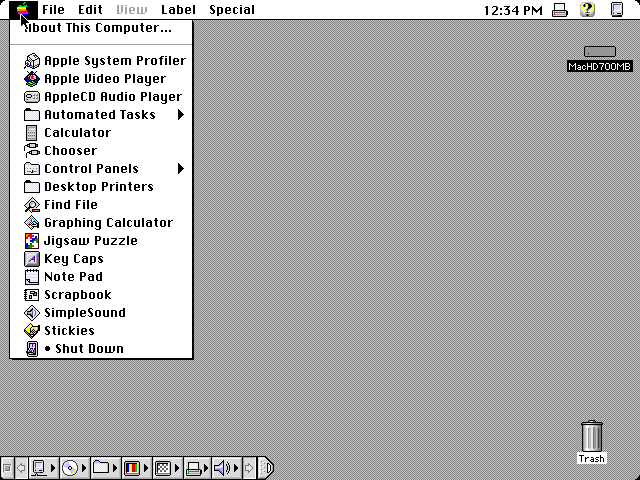

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
maclc2	12605	29/12/2025 11:31:34	640	480	96	96	0	Format24bppRgb	305:MAME 0.247.0 (Aug 31 2022)	39a35a9e0bfe7fc0990534449ec4b86dfbea535d

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
v8:screen	raster	0	640	480	59.940476	25175000	800	0	640	525	0	480	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
341-0476_ue2-hh.bin	131072	0c3b0ce4	e4e8c883d7f2e002a3f7b7aefaa3840991e57025	bootrom	0	good	no
341-0475_ud2-mh.bin	131072	7b013595	0b82d8fac570270db9774f6254017d28611ae756	bootrom	1	good	no
341-0474_uc2-ml.bin	131072	2ff2f52b	876850df61d0233c1dd3c00d48d8d6690186b164	bootrom	2	good	no
341-0473_ub2-ll.bin	131072	8843c37c	bb5104110507ca543d106f11c6061245fd90c1a7	bootrom	3	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68030	15667200
cpu	egret:egret	Motorola M68HC05E1	4194304
audio	scsi:3:cdrom:cdda	CD/DA	44100
audio	speaker	Speaker
audio	dfac	Apple Digitally Filtered Audio Chip	22257
audio	v8	Apple V8 system ASIC	15667200
audio	v8:asc	ASC	15667200
audio	fdc:0:35hd:flopsndout	Speaker
audio	fdc:0:35hd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
hdd_list	mac_hdd	original
cd_list	mac_cdrom	original	MC68030,MC68030_32
flop35hd_list	mac_hdflop	original

device_ref

tag	name
:maincpu	m68030
:ram	ram
:scsi	nscsi_bus
:scsi:0	nscsi_connector
:scsi:1	nscsi_connector
:scsi:2	nscsi_connector
:scsi:3	nscsi_connector
:scsi:3:cdrom	scsi_cdrom_apple
:scsi:3:cdrom:image	cdrom_image
:scsi:3:cdrom:cdda	cdda
:scsi:4	nscsi_connector
:scsi:5	nscsi_connector
:scsi:6	nscsi_connector
:scsi:6:harddisk	scsi_harddisk
:scsi:6:harddisk:image	harddisk_image
:scsi:7	nscsi_connector
:scsi:7:ncr5380	ncr53c80
:scsihelp	scsipdma
:hdd_list	software_list
:cd_list	software_list
:flop35hd_list	software_list
:scc	scc85c30
:scc:cha	z80scc_channel
:scc:chb	z80scc_channel
:printer	rs232
:modem	rs232
:speaker	speaker
:dfac	apldfac
:v8	v8
:v8:screen	screen
:v8:via1	r65nc22
:v8:asc	asc
:v8:pseudovia	pseudovia
:v8:ramdac	ariel
:pds	nubus
:macadb	macadb
:egret	egret
:egret:egret	m68hc05e1
:fdc	swim1
:fdc:0	floppy_connector
:fdc:0:35hd	mfd75w
:fdc:0:35hd:flopsndout	speaker
:fdc:0:35hd:floppysound	flopsnd
:fdc:1	floppy_connector
:lcpds	nubus_slot

sound

channels
2

feature

type	status	overall
sound		imperfect

ramoption

name	default
6M
8M
10M
4M	yes

device, instance

type	tag	interface	name	briefname
cdrom	scsi:3:cdrom:image	cdrom	cdrom	cdrm
harddisk	scsi:6:harddisk:image	scsi_hdd,hdd	harddisk	hard
floppydisk	fdc:0:35hd	floppy_3_5	floppydisk	flop

device, extension

type	tag	interface	extension_names
cdrom	scsi:3:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
harddisk	scsi:6:harddisk:image	scsi_hdd,hdd	chd, hd, hdv, 2mg, hdi
floppydisk	fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, dc42, woz, moof, po, 2mg

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		2		no	0	255	100
keyboard		101		no

port, analog

port_tag	analog_masks
:config
:macadb:KEY0
:macadb:KEY1
:macadb:KEY2
:macadb:KEY3
:macadb:KEY4
:macadb:KEY5
:macadb:KEY6
:macadb:KEY7
:macadb:MOUSE0
:macadb:MOUSE1	255
:macadb:MOUSE2	255
:v8:MONTYPE

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
scsi:0	pc98_hd	scsi_pc98_hd	no
scsi:0	cfp1080s	cfp1080s	no
scsi:0	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:0	aplcdsc	scsi_cdrom_apple	no
scsi:0	aplcd150	aplcd150	no
scsi:0	tape	scsi_tape	no
scsi:0	s1410	scsi_s1410	no
scsi:0	dtc510	scsi_dtc510	no
scsi:0	harddisk	scsi_harddisk	no
scsi:0	cw7501	cw7501	no
scsi:0	crd254sh	crd254sh	no
scsi:0	cdr4210	cdr4210	no
scsi:0	smoc501	smoc501	no
scsi:0	cdd2000	cdd2000	no
scsi:0	cdrn820s	cdrn820s	no
scsi:0	cdu75s	cdu75s	no
scsi:0	cdrom	scsi_cdrom_apple	no
scsi:0	cdu415	cdu415	no
scsi:0	cdu561_25	cdu561_25	no
scsi:1	pc98_hd	scsi_pc98_hd	no
scsi:1	cfp1080s	cfp1080s	no
scsi:1	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:1	aplcdsc	scsi_cdrom_apple	no
scsi:1	aplcd150	aplcd150	no
scsi:1	tape	scsi_tape	no
scsi:1	s1410	scsi_s1410	no
scsi:1	dtc510	scsi_dtc510	no
scsi:1	harddisk	scsi_harddisk	no
scsi:1	cw7501	cw7501	no
scsi:1	crd254sh	crd254sh	no
scsi:1	cdr4210	cdr4210	no
scsi:1	smoc501	smoc501	no
scsi:1	cdd2000	cdd2000	no
scsi:1	cdrn820s	cdrn820s	no
scsi:1	cdu75s	cdu75s	no
scsi:1	cdrom	scsi_cdrom_apple	no
scsi:1	cdu415	cdu415	no
scsi:1	cdu561_25	cdu561_25	no
scsi:2	pc98_hd	scsi_pc98_hd	no
scsi:2	cfp1080s	cfp1080s	no
scsi:2	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:2	aplcdsc	scsi_cdrom_apple	no
scsi:2	aplcd150	aplcd150	no
scsi:2	tape	scsi_tape	no
scsi:2	s1410	scsi_s1410	no
scsi:2	dtc510	scsi_dtc510	no
scsi:2	harddisk	scsi_harddisk	no
scsi:2	cw7501	cw7501	no
scsi:2	crd254sh	crd254sh	no
scsi:2	cdr4210	cdr4210	no
scsi:2	smoc501	smoc501	no
scsi:2	cdd2000	cdd2000	no
scsi:2	cdrn820s	cdrn820s	no
scsi:2	cdu75s	cdu75s	no
scsi:2	cdrom	scsi_cdrom_apple	no
scsi:2	cdu415	cdu415	no
scsi:2	cdu561_25	cdu561_25	no
scsi:4	pc98_hd	scsi_pc98_hd	no
scsi:4	cfp1080s	cfp1080s	no
scsi:4	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:4	aplcdsc	scsi_cdrom_apple	no
scsi:4	aplcd150	aplcd150	no
scsi:4	tape	scsi_tape	no
scsi:4	s1410	scsi_s1410	no
scsi:4	dtc510	scsi_dtc510	no
scsi:4	harddisk	scsi_harddisk	no
scsi:4	cw7501	cw7501	no
scsi:4	crd254sh	crd254sh	no
scsi:4	cdr4210	cdr4210	no
scsi:4	smoc501	smoc501	no
scsi:4	cdd2000	cdd2000	no
scsi:4	cdrn820s	cdrn820s	no
scsi:4	cdu75s	cdu75s	no
scsi:4	cdrom	scsi_cdrom_apple	no
scsi:4	cdu415	cdu415	no
scsi:4	cdu561_25	cdu561_25	no
scsi:5	pc98_hd	scsi_pc98_hd	no
scsi:5	cfp1080s	cfp1080s	no
scsi:5	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:5	aplcdsc	scsi_cdrom_apple	no
scsi:5	aplcd150	aplcd150	no
scsi:5	tape	scsi_tape	no
scsi:5	s1410	scsi_s1410	no
scsi:5	dtc510	scsi_dtc510	no
scsi:5	harddisk	scsi_harddisk	no
scsi:5	cw7501	cw7501	no
scsi:5	crd254sh	crd254sh	no
scsi:5	cdr4210	cdr4210	no
scsi:5	smoc501	smoc501	no
scsi:5	cdd2000	cdd2000	no
scsi:5	cdrn820s	cdrn820s	no
scsi:5	cdu75s	cdu75s	no
scsi:5	cdrom	scsi_cdrom_apple	no
scsi:5	cdu415	cdu415	no
scsi:5	cdu561_25	cdu561_25	no
scsi:6	pc98_hd	scsi_pc98_hd	no
scsi:6	cfp1080s	cfp1080s	no
scsi:6	aplcdsc_ext	scsi_cdrom_apple_ext	no
scsi:6	aplcdsc	scsi_cdrom_apple	no
scsi:6	aplcd150	aplcd150	no
scsi:6	tape	scsi_tape	no
scsi:6	s1410	scsi_s1410	no
scsi:6	dtc510	scsi_dtc510	no
scsi:6	harddisk	scsi_harddisk	yes
scsi:6	cw7501	cw7501	no
scsi:6	crd254sh	crd254sh	no
scsi:6	cdr4210	cdr4210	no
scsi:6	smoc501	smoc501	no
scsi:6	cdd2000	cdd2000	no
scsi:6	cdrn820s	cdrn820s	no
scsi:6	cdu75s	cdu75s	no
scsi:6	cdrom	scsi_cdrom_apple	no
scsi:6	cdu415	cdu415	no
scsi:6	cdu561_25	cdu561_25	no
printer	terminal	serial_terminal	no
printer	sunkbd	sunkbd_adaptor	no
printer	votraxtnt	serial_votraxtnt	no
printer	rs_printer	rs_serial_printer	no
printer	dec_loopback	dec_rs232_loopback	no
printer	h19	serial_heath_h19	no
printer	ie15	ie15_terminal	no
printer	null_modem	null_modem	no
printer	keyboard	serial_keyboard	no
printer	patch	rs232_patch_box	no
printer	swtpc8212	swtpc8212_terminal	no
printer	printer	serial_printer	no
printer	scorpion	scorpion_ic	no
printer	loopback	rs232_loopback	no
printer	mockingboard	mockingboardd	no
printer	msystems_mouse	rs232_mouse_hle_msystems	no
printer	nss_tvi	nss_tvinterface	no
printer	rs232_sync_io	rs232_sync_io	no
printer	pty	pseudo_terminal	no
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	votraxtnt	serial_votraxtnt	no
modem	rs_printer	rs_serial_printer	no
modem	dec_loopback	dec_rs232_loopback	no
modem	h19	serial_heath_h19	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	no
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
fdc:0	35hd	mfd75w	yes
fdc:0	35dd	mfd51w	no
fdc:0	35sd	oa_d34v	no
fdc:1	35hd	mfd75w	no
fdc:1	35dd	mfd51w	no
fdc:1	35sd	oa_d34v	no
lcpds	enetlctp	enetlctp	no
lcpds	enetlc	enetlc	no
lcpds	macconilc	pdslc_macconlc	no

configuration

FPU

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
FPU	config	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No FPU	0	yes
FPU Present	1	no

Connected monitor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Connected monitor	v8:MONTYPE	15

setting

name	value	default
15" Portrait Display (640x870)	1	no
12" RGB (512x384)	2	no
13" RGB (640x480)	6	yes
