PC-6601SR "Mr. PC" (Japan) - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pc6601sr	nec/pc6001.cpp		no	no	no	yes	PC-6601SR "Mr. PC" (Japan)	1984	NEC	pc6001	pc6001

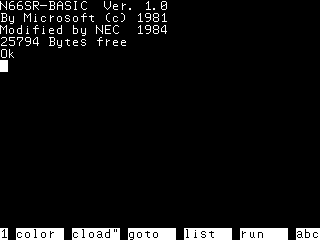

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
pc6601sr	1953	29/12/2025 11:31:37	320	240	96	96	0	Format24bppRgb	305:MAME 0.237 (Oct 27 2021)	652c08af75f5bcbacfb1577eb377ec8a47a40c99

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	60.000000	4665600	320	0	320	243	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
systemrom1.68	65536	b6fc2db2	dd48b1eee60aa34780f153359f5da7f590f8dff4	sr_sysrom	10000	good	no
systemrom2.68	65536	55a62a1d	3a19855d290fd4ac04e6066fe4a80ecd81dc8dd7	sr_sysrom	0	good	no
basicrom.68	32768	516b1be3	e9977fc13f65f009f03d0340b1f1eb9a3e586739	mk2	0	good	no
voicerom.68	16384	37ff3829	f887e95e29d071df8329168b48c07b78e492c837	mk2	8000	good	no
cgrom60.68	8192	331473a9	361836f9758d6d9b5133c9dc7860a7c74f9cf596	mk2	c000	good	no
cgrom66.68	8192	03ba2cf1	6fb32a4332b26aba2f28c3d8872cac5606be3998	mk2	e000	good	no
sysrom2.68	8192	07318218	061f3e7d6c85a560846856feb55fdc0a1f561548	mk2	10000	good	no
d8049hc-016.bin	2048	65394e8d	761397cbd812623367ef1df5561c6dddb7ebdab7	mcu	0	good	no
d8049hc-025.ic201	2048			tim	0	nodump	no
d8049hc-246.ic47	2048			sub	0	nodump	no
cgrom68.68	16384	73bc3256	5f80d62a95331dc39b2fb448a380fd10083947eb	cgrom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3579545
cpu	pc80s31:fdc_cpu	Zilog Z80	4000000
audio	mono	Speaker
audio	upd7752	NEC uPD7752	1996800
audio	fdc:0:35dd:flopsndout	Speaker
audio	fdc:0:35dd:floppysound	Floppy sound	44100
audio	pc80s31:fdc:0:525sd:flopsndout	Speaker
audio	pc80s31:fdc:0:525sd:floppysound	Floppy sound	44100
audio	pc80s31:fdc:1:525sd:flopsndout	Speaker
audio	pc80s31:fdc:1:525sd:floppysound	Floppy sound	44100
audio	ymsnd	YM2203 OPN	4000000

softwarelist

tag	name	status
cart_list_pc6001	pc6001_cart	original
cass_list_pc6001	pc6001_cass	original
cass_list_pc6001mk2	pc6001mk2_cass	original

device_ref

tag	name
:maincpu	z80
:gfxdecode	gfxdecode
:screen	screen
:palette	palette
:ppi8255	i8255
:uart	i8251
:joy1	msx_general_purpose_port
:joy1:joystick	msx_joystick
:joy2	msx_general_purpose_port
:joy2:joystick	msx_joystick
:joymux	ls157_x2
:cartslot	generic_cartslot
:cart_list_pc6001	software_list
:cass_list_pc6001	software_list
:cas_hack	generic_cartslot
:mono	speaker
:keyboard_timer	timer
:cassette_timer	timer
:upd7752	upd7752
:cass_list_pc6001mk2	software_list
:sr_bank_1	address_map_bank
:sr_bank_2	address_map_bank
:sr_bank_3	address_map_bank
:sr_bank_4	address_map_bank
:sr_bank_5	address_map_bank
:sr_bank_6	address_map_bank
:sr_bank_7	address_map_bank
:sr_bank_8	address_map_bank
:sr_bank_9	address_map_bank
:sr_bank_10	address_map_bank
:sr_bank_11	address_map_bank
:sr_bank_12	address_map_bank
:sr_bank_13	address_map_bank
:sr_bank_14	address_map_bank
:sr_bank_15	address_map_bank
:sr_bank_16	address_map_bank
:fdc	upd765a
:fdc:0	floppy_connector
:fdc:0:35dd	floppy_35_dd
:fdc:0:35dd:flopsndout	speaker
:fdc:0:35dd:floppysound	flopsnd
:pc80s31	pc80s31
:pc80s31:fdc_cpu	z80
:pc80s31:fdc	upd765a
:pc80s31:fdc:0	floppy_connector
:pc80s31:fdc:0:525sd	floppy_525_sd
:pc80s31:fdc:0:525sd:flopsndout	speaker
:pc80s31:fdc:0:525sd:floppysound	flopsnd
:pc80s31:fdc:1	floppy_connector
:pc80s31:fdc:1:525sd	floppy_525_sd
:pc80s31:fdc:1:525sd:flopsndout	speaker
:pc80s31:fdc:1:525sd:floppysound	flopsnd
:pc80s31:latch_0	generic_latch_8
:pc80s31:latch_1	generic_latch_8
:pc80s31:latch_2	generic_latch_8
:pc80s31:latch_3	generic_latch_8
:pc80s31:latch_4	generic_latch_8
:pc80s31:latch_5	generic_latch_8
:pc80s31:ppi_host	i8255
:pc80s31:ppi_fdc	i8255
:ymsnd	ym2203

sound

channels
4

device, instance

type	tag	interface	name	briefname
cartridge	cartslot	pc6001_cart	cartridge1	cart1
cartridge	cas_hack	pc6001_cass	cartridge2	cart2
floppydisk	fdc:0:35dd	floppy_3_5	floppydisk1	flop1
floppydisk	pc80s31:fdc:0:525sd	floppy_5_25	floppydisk2	flop2
floppydisk	pc80s31:fdc:1:525sd	floppy_5_25	floppydisk3	flop3

device, extension

type	tag	interface	extension_names
cartridge	cartslot	pc6001_cart	bin
cartridge	cas_hack	pc6001_cass	cas, p6
floppydisk	fdc:0:35dd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk
floppydisk	pc80s31:fdc:0:525sd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, xdf, hdm, 2hd, fdi
floppydisk	pc80s31:fdc:1:525sd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, xdf, hdm, 2hd, fdi

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse
joy	1	2	8	no
keyboard	1	66		no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:MODE4_DSW
:joy1:joystick:JOY
:joy2:joystick:JOY
:key1
:key2
:key3
:key_fn
:key_modifiers

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
joy1	vaus	msx_vaus	no
joy1	townspad	msx_townspad	no
joy1	towns6b	msx_towns6b	no
joy1	sega	msx_segactrl	no
joy1	mouse	msx_mouse	no
joy1	magickey	msx_magickey	no
joy1	libbler	msx_libblerpad	no
joy1	martypad	msx_martypad	no
joy1	joystick	msx_joystick	yes
joy1	xe1ap	msx_xe1ap	no
joy1	hypershot	msx_hypershot	no
joy2	vaus	msx_vaus	no
joy2	townspad	msx_townspad	no
joy2	towns6b	msx_towns6b	no
joy2	sega	msx_segactrl	no
joy2	mouse	msx_mouse	no
joy2	magickey	msx_magickey	no
joy2	libbler	msx_libblerpad	no
joy2	martypad	msx_martypad	no
joy2	joystick	msx_joystick	yes
joy2	xe1ap	msx_xe1ap	no
joy2	hypershot	msx_hypershot	no
cartslot
cas_hack
fdc:0	35ssdd	floppy_35_ssdd	no
fdc:0	35dd	floppy_35_dd	yes
pc80s31:fdc:0	525hd	floppy_525_hd	no
pc80s31:fdc:0	525dd	teac_fd_55f	no
pc80s31:fdc:0	525sd	floppy_525_sd	yes
pc80s31:fdc:1	525hd	floppy_525_hd	no
pc80s31:fdc:1	525dd	teac_fd_55f	no
pc80s31:fdc:1	525sd	floppy_525_sd	yes

dipswitch

Mode 4 GFX colors

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Mode 4 GFX colors	MODE4_DSW	7

value

name	value	default
Monochrome	0	yes
Red/Blue	1	no
Blue/Red	2	no
Pink/Green	3	no
Green/Pink	4	no
