PC-8801MA2 - mame (0277) machine

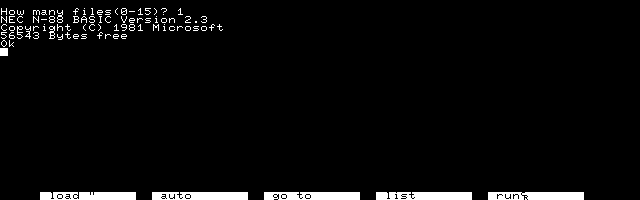

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
pc8801ma2	nec/pc8801.cpp		no	no	no	yes	PC-8801MA2	1988	NEC	pc8801ma	pc8801ma

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	200	61.461972	14318181	896	0	640	260	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
ma2_n80.rom	32768	8a2a1e17	06dae1db384aa29d81c5b6ed587877e7128fcb35	n80rom	0	good	no	ma_n80.rom
ma2_n88.rom	32768	ae1a6ebc	e53d628638f663099234e07837ffb1b0f86d480d	n88rom	0	good	no
ma2_n88_0.rom	8192	a72697d7	5aedbc5916d67ef28767a2b942864765eea81bb8	n88rom	8000	good	no	ma_n88_0.rom
ma2_n88_1.rom	8192	7ad5d943	4ae4d37409ff99411a623da9f6a44192170a854e	n88rom	a000	good	no	ma_n88_1.rom
ma2_n88_2.rom	8192	1d6277b6	dd9c3e50169b75bb707ef648f20d352e6a8bcfe4	n88rom	c000	good	no
ma2_n88_3.rom	8192	692cbcd8	af452aed79b072c4d17985830b7c5dca64d4b412	n88rom	e000	good	no	ma_n88_3.rom
kanji1.rom	131072	6178bd43	82e11a177af6a5091dd67f50a2f4bafda84d6556	kanji	0	good	no	kanji1.rom
ma2_kanji2.rom	131072	376eb677	bcf96584e2ba362218b813be51ea21573d1a2a78	kanji_lv2	0	good	no	ma_kanji2.rom
ma2_jisyo.rom	524288	856459af	06241085fc1d62d4b2968ad9cdbdadc1e7d7990a	dictionary	0	good	no

chip

type	tag	name	clock
cpu	z80	Zilog Z80	3993600
cpu	pc80s31:fdc_cpu	Zilog Z80	4000000
cpu	i8257	Intel 8257 DMA Controller	3993600
audio	pc80s31:fdc:0:525hd:flopsndout	Speaker
audio	pc80s31:fdc:0:525hd:floppysound	Floppy sound	44100
audio	pc80s31:fdc:1:525hd:flopsndout	Speaker
audio	pc80s31:fdc:1:525hd:floppysound	Floppy sound	44100
audio	cassette	Cassette
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	beeper	Beep	2400
audio	opna	YM2608 OPNA	7987200

softwarelist

tag	name	status
tape_list	pc8801_cass	original
disk_n88_list	pc8801_flop	original
disk_n_list	pc8001_flop	compatible

device_ref

name
z80
pc80s31k
z80
upd765a
floppy_connector
floppy_525_hd
speaker
flopsnd
floppy_connector
floppy_525_hd
speaker
flopsnd
generic_latch_8
generic_latch_8
generic_latch_8
generic_latch_8
generic_latch_8
generic_latch_8
i8255
i8255
i8214
upd1990a
centronics
centronics_printer
printer_image
output_latch
cassette_image
software_list
i8251
software_list
software_list
screen
gfxdecode
palette
palette
upd3301
i8257
timer
speaker
speaker
beep
msx_general_purpose_port
msx_joystick
pc8801_exp_slot
ym2608

sound

channels
4

feature

type	status	overall
timing	imperfect
graphics	imperfect
printer	unemulated
tape	unemulated

device, instance

type	tag	interface	name	briefname
floppydisk	pc80s31:fdc:0:525hd	floppy_5_25	floppydisk1	flop1
floppydisk	pc80s31:fdc:1:525hd	floppy_5_25	floppydisk2	flop2
printout	centronics:printer:printer		printout	prin
cassette	cassette	pc8801_cass	cassette	cass

device, extension

type	tag	interface	extension_names
floppydisk	pc80s31:fdc:0:525hd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, xdf, hdm, 2hd, fdi
floppydisk	pc80s31:fdc:1:525hd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, xdf, hdm, 2hd, fdi
printout	centronics:printer:printer		prn
cassette	cassette	pc8801_cass	wav, flac

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy		2	8	no
keyboard		90		no

port, analog

port_tag	analog_masks
:BOARD_CONFIG
:CFG
:CTRL
:DSW1
:DSW2
:KEY0
:KEY1
:KEY10
:KEY11
:KEY12
:KEY13
:KEY14
:KEY15
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:MEM
:mouseport:joystick:JOY

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
pc80s31:fdc:0	525hd	floppy_525_hd	yes
pc80s31:fdc:1	525hd	floppy_525_hd	yes
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
mouseport	vaus	msx_vaus	no
mouseport	townspad	msx_townspad	no
mouseport	towns6b	msx_towns6b	no
mouseport	sega	msx_segactrl	no
mouseport	mouse	msx_mouse	no
mouseport	magickey	msx_magickey	no
mouseport	libbler	msx_libblerpad	no
mouseport	martypad	msx_martypad	no
mouseport	joystick	msx_joystick	yes
mouseport	xe1ap	msx_xe1ap	no
mouseport	hypershot	msx_hypershot	no
exp	gsx8800	gsx8800	no
exp	jmbx1	jmbx1	no
exp	hmb20	hmb20	no
exp	pcg8100	pcg8100	no
exp	sbii	pc8801_23	no

configuration

Extension memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extension memory	MEM	15

setting

name	value	default
None	0	no
32KB (PC-8012-02 x 1)	1	no
64KB (PC-8012-02 x 2)	2	no
128KB (PC-8012-02 x 4)	3	no
128KB (PC-8801-02N x 1)	4	no
256KB (PC-8801-02N x 2)	5	no
512KB (PC-8801-02N x 4)	6	no
1M (PIO-8234H-1M x 1)	7	no
2M (PIO-8234H-2M x 1)	8	no
4M (PIO-8234H-2M x 2)	9	no
8M (PIO-8234H-2M x 4)	10	yes
1.1M (PIO-8234H-1M x 1 + PC-8801-02N x 1)	11	no
2.1M (PIO-8234H-2M x 1 + PC-8801-02N x 1)	12	no
4.1M (PIO-8234H-2M x 2 + PC-8801-02N x 1)	13	no

dipswitch

Speed mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Speed mode	CFG	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Slow	0	no
High	64	yes

Main CPU clock

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main CPU clock	CFG	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4MHz	128	yes
8MHz	0	no

Monitor Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor Type	CTRL	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
15 KHz	2	yes
24 KHz	0	no

Auto-boot floppy at start-up

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto-boot floppy at start-up	CTRL	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

BASIC

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BASIC	DSW1	1

location

name	number	inverted
SW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
N88-BASIC	1	yes
N-BASIC	0	no

Terminal mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Terminal mode	DSW1	2

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Text width

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Text width	DSW1	4

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
40 chars/line	4	no
80 chars/line	0	yes

Text height

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Text height	DSW1	8

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
20 lines/screen	8	no
25 lines/screen	0	yes

Enable S parameter

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable S parameter	DSW1	16

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Enable DEL code

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable DEL code	DSW1	32

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Memory wait

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Memory wait	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Disable CMD SING

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable CMD SING	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Parity generate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity generate	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Parity type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Parity type	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Even	0	yes
Odd	2	no

Serial character length

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Serial character length	DSW2	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
7 bits/char	4	no
8 bits/char	0	yes

Stop bit length

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop bit length	DSW2	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	8	yes
2	0	no

Enable X parameter

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable X parameter	DSW2	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Duplex

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Duplex	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Half	32	yes
Full	0	no

BASIC speed select

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BASIC speed select	DSW2	64

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
High Speed Mode (V1H, V2)	64	yes
Standard Mode (V1S)	0	no

BASIC Version select

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
BASIC Version select	DSW2	128

location

name	number	inverted
SW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
V1 Mode	128	no
V2 Mode	0	yes
