mame (0289) • machine pi4d35 • Personal IRIS 4D/35

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pi4d35	sgi/ip12.cpp		no	no	no	yes	Personal IRIS 4D/35	1991	Silicon Graphics

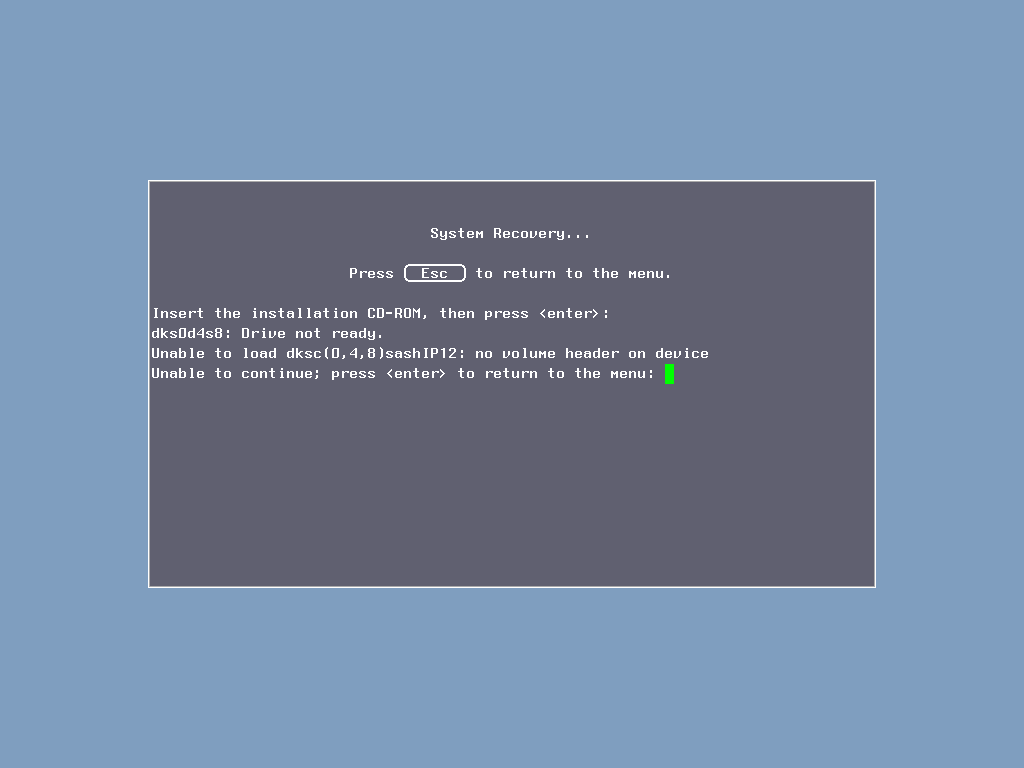

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
pi4d35	9792	29/12/2025 11:31:38	1024	768	96	96	0	Format24bppRgb	305:MAME 0.258.0 (Aug 30 2023)	ca073dd68d6ba3ecd9473721910c94471847de1f

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
gfx:screen	raster	0	1024	768	60.000000	47185920	1024	0	1024	768	0	768	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
ip12prom.002be.u61	262144	d35f105c	3d08dfb961d7512bd8ed41cb6e01e89d14134f09	prom	good	no	4.0.1d
ip12prom.070-8045-002.u61	262144	fe999bae	eb054c365a6e018be3b9ae44169c0ffc6447c6f0	prom	good	no	4.0a
ip12prom.070-8086-002.u61	524288	543cfc3f	a7331876f11bff40c960f822923503eca17191c5	prom	good	no	4.0.1c

chip

type	tag	name	clock
cpu	cpu	MIPS R3000A	36000000
cpu	keyboard_port:keyboard:mcu	Intel 8031	11059200
cpu	dsp	Motorola DSP56001	20000000
audio	scsi:4:cdrom:cdda	CD/DA	44100
audio	keyboard_port:keyboard:speaker	Speaker
audio	keyboard_port:keyboard:beeper	Beep	480

device_ref

tag	name
:cpu	r3000a
:pic	sgi_pic1
:hpc	hpc1
:int	sgi_int2
:int:pit	pit8254
:int:pit:counter0	pit_counter
:int:pit:counter1	pit_counter
:int:pit:counter2	pit_counter
:int:vme0_int	ipt_merge_any_hi
:int:vme1_int	ipt_merge_any_hi
:nvram	93c56_16
:rtc	dp8572a
:scsi	nscsi_bus
:scsi:1	nscsi_connector
:scsi:1:harddisk	scsi_harddisk
:scsi:1:harddisk:image	harddisk_image
:scsi:2	nscsi_connector
:scsi:3	nscsi_connector
:scsi:4	nscsi_connector
:scsi:4:cdrom	scsi_cdrom_sgi
:scsi:4:cdrom:image	cdrom_image
:scsi:4:cdrom:cdda	cdda
:scsi:5	nscsi_connector
:scsi:6	nscsi_connector
:scsi:7	nscsi_connector
:wd33c93a	wd33c93a
:eth	seeq8003
:scc_irq	ipt_merge_any_hi
:scc0	scc85c30
:scc0:cha	z80scc_channel
:scc0:chb	z80scc_channel
:keyboard_port	sgi_kbd_port
:keyboard_port:keyboard	sgi_kbd
:keyboard_port:keyboard:speaker	speaker
:keyboard_port:keyboard:beeper	beep
:keyboard_port:keyboard:mcu	i8031
:mouse_port	rs232
:mouse_port:mouse	rs232_mouse_hle_sgi
:scc1	scc85c30
:scc1:cha	z80scc_channel
:scc1:chb	z80scc_channel
:rs232a	rs232
:rs232b	rs232
:scc2	scc85c30
:scc2:cha	z80scc_channel
:scc2:chb	z80scc_channel
:dsp	dsp56001
:gfx	sgi_lg1
:gfx:vc1	sgi_vc1
:gfx:lut1	bt479
:gfx:screen	screen
:rs232c	rs232
:rs232d	rs232

biosset

name	description	default
4.0.1d	SGI Version 4.0.1 Rev D LG1/GR2, Mar 24, 1992	no
4.0.1c	SGI Version 4.0.1 Rev C GR1/GR2/LG1, Feb 14, 1992	no
4.0a	SGI Version 4.0 Rev A IP12, Aug 22, 1991	no

sound

channels
1

feature

type	status	overall
graphics	imperfect
sound	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
harddisk	scsi:1:harddisk:image	scsi_hdd,hdd			harddisk	hard
cdrom	scsi:4:cdrom:image	cdrom			cdrom	cdrm

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
harddisk	scsi:1:harddisk:image	scsi_hdd,hdd			chd, hd, hdv, 2mg, hdi
cdrom	scsi:4:cdrom:image	cdrom			chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		3		no	0	61440	100
keyboard		101		no

port, analog

port_tag	analog_masks
:keyboard_port:keyboard:col.0
:keyboard_port:keyboard:col.1
:keyboard_port:keyboard:col.2
:keyboard_port:keyboard:col.3
:keyboard_port:keyboard:col.4
:keyboard_port:keyboard:col.5
:keyboard_port:keyboard:col.6
:keyboard_port:keyboard:col.7
