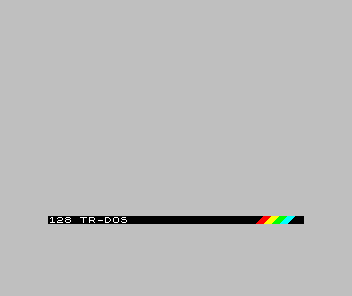

Scorpion GMX - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
scorpiongmx	sinclair/scorpion.cpp		no	no	no	yes	Scorpion GMX	1998	Scorpion, Ltd.	spec128	spec128

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	352	296	49.446203	7000000	448	0	352	316	16	312	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
gmx12500.rom	524288	00df8568	dd303d298f96ec4f9fe736eefd3c36fff1dfcdf5	maincpu	10000	good	no	v12500
gmx12501.rom	524288	34c8d210	433237c8b5cd9de3bff3b074b6c7065788306995	maincpu	10000	good	no	v12501
gmx13500.rom	524288	47c9df88	e26823989ce111a086a9e44bfa07fa631019c19d	maincpu	10000	good	no	v13500
profgmx5xx027.rom	524288	05dc16f5	b786c78e9f332010e3996f3281adf3f75924bede	maincpu	10000	good	no	v5.27
profgmx5xx029.rom	524288	41016b99	86f324d45f4f181c9231a7001b30d5ce3d1512c6	maincpu	10000	good	no	v5.29
profgmx5xx030.rom	524288	21edd18e	90fc58600e2da85fea7dc033a22dcc88633530bc	maincpu	10000	good	no	v5.30
profgmx5xx030_3d2f.rom	524288	ab6e2380	6bd2904364badb00700a7d4576d8396c62916d67	maincpu	10000	good	no	v5.30_3d2f
profgmx5xx031.rom	524288	a2ec83d5	e2a022c1bdea516b43828752fc52b112c0bad59c	maincpu	10000	good	no	v5.31
profgmx5xx031_3d2f.rom	524288	bb900382	1e01444e3eb65dffcb9c41b2b8e034a020198a1e	maincpu	10000	good	no	v5.31_3d2f
profgmx5xx041.8689.rom	524288	fefc285e	63ed6e18f8d9cb203c7279f3ecb431950c5b83e6	maincpu	10000	good	no	v5.41
profgmx5xx041.8689_3d2f.rom	524288	a2923935	1b8cfe2b8e9dab07dc1852c84f36049d6c27cd93	maincpu	10000	good	no	v5.41_3d2f
profgmx5xx041.8689_uni.rom	524288	9b5f6b2b	3c2628b5acdbb4c954b8607c2971b66d9f3ccc2a	maincpu	10000	good	no	v5.41_uni
profgmx6xx041.8689.rom	524288	c2c6b073	bff736c5d0389e171986f0f1c853319bbf704737	maincpu	10000	good	no	v6.41
profgmx6xx041.8689_3d2f.rom	524288	37afe94d	904d85addf8e38206223f049a4fbeb707fb0dfc5	maincpu	10000	good	no	v6.41_3d2f
profgmx6xx041.8689_uni.rom	524288	04d9aa7c	a22d89337874a9b01ed80b8a1c09cc86c56dff69	maincpu	10000	good	no	v6.41_uni
profgmx6xx043.9226s.rom	524288	a0551240	446fcdb3de225f06e7ac9ee8e03812a4c7900a4a	maincpu	10000	good	no	v6.43s
profgmx6xx043.9226se.rom	524288	16452fc8	c5a69762e291b6dbe656f8f3d1661a738f332108	maincpu	10000	good	no	v6.43se
profgmx6xx043.9226su.rom	524288	3060e891	416164b288d61f2c9438e1242df6a3e892fdac94	maincpu	10000	good	no	v6.43su

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3500000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	cassette	Cassette
audio	lspeaker	Speaker
audio	rspeaker	Speaker
audio	ay0	AY-3-8912A PSG	1750000
audio	ay1	AY-3-8912A PSG	1750000
audio	beta:wd179x:0:525qd:flopsndout	Speaker
audio	beta:wd179x:0:525qd:floppysound	Floppy sound	44100
audio	beta:wd179x:1:525qd:flopsndout	Speaker
audio	beta:wd179x:1:525qd:floppysound	Floppy sound	44100
audio	beta:wd179x:2:525qd:flopsndout	Speaker
audio	beta:wd179x:2:525qd:floppysound	Floppy sound	44100
audio	beta:wd179x:3:525qd:flopsndout	Speaker
audio	beta:wd179x:3:525qd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
cass_list	spectrum_cass	original

device_ref

name
z80
address_map_bank
screen
palette
gfxdecode
speaker
speaker_sound_device
snapshot_image
quickload
cassette_image
software_list
ram
speaker
speaker
ay8912
ay8912
betadisk
kr1818vg93
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd
zxbus
zxbus_slot
zxbus_slot

biosset

name	description	default
v12500	GMX Boot Rom 1.2 V. 5.00	no
v12501	GMX Boot Rom 1.2 V. 5.01	no
v13500	GMX Boot Rom 1.3 V. 5.00	no
v5.27	ProfROM +GMX V.5.xx.027	no
v5.29	ProfROM +GMX V.5.xx.029	no
v5.30	ProfROM +GMX V.5.xx.030	no
v5.30_3d2f	ProfROM +GMX V.5.xx.030 (3D2F)	no
v5.31	ProfROM +GMX V.5.xx.031	no
v5.31_3d2f	ProfROM +GMX V.5.xx.031 (3D2F)	no
v5.41	ProfROM +GMX V.5.xx.041.8689	no
v5.41_3d2f	ProfROM +GMX V.5.xx.041.8689 (3D2F)	no
v5.41_uni	ProfROM +GMX V.5.xx.041.8689 (UNI)	no
v6.41	ProfROM +GMX V.6.xx.041.8689	no
v6.41_3d2f	ProfROM +GMX V.6.xx.041.8689 (3D2F)	no
v6.41_uni	ProfROM +GMX V.6.xx.041.8689 (UNI)	no
v6.43s	ProfROM +GMX V.6.xx.043.9226s	no
v6.43se	ProfROM +GMX V.6.xx.043.9226se (VG93 emulation enabled)	no
v6.43su	ProfROM +GMX V.6.xx.043.9226su (VG93 emulation disabled)	yes

sound

channels
7

ramoption

name	default
1M
2M	yes

device, instance

type	tag	interface	name	briefname
snapshot	snapshot		snapshot	dump
quickload	quickload		quickload	quik
cassette	cassette	spectrum_cass	cassette	cass
floppydisk	beta:wd179x:0:525qd	floppy_5_25	floppydisk1	flop1
floppydisk	beta:wd179x:1:525qd	floppy_5_25	floppydisk2	flop2
floppydisk	beta:wd179x:2:525qd	floppy_5_25	floppydisk3	flop3
floppydisk	beta:wd179x:3:525qd	floppy_5_25	floppydisk4	flop4

device, extension

type	tag	interface	extension_names
snapshot	snapshot		ach, frz, plusd, prg, sem, sit, sna, snp, snx, sp, z80, zx
quickload	quickload		raw, scr
cassette	cassette	spectrum_cass	wav, flac, tzx, tap, blk
floppydisk	beta:wd179x:0:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, trd
floppydisk	beta:wd179x:1:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, trd
floppydisk	beta:wd179x:2:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, trd
floppydisk	beta:wd179x:3:525qd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, trd

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity
joy	1	6	8	no
mouse	1			no	0	255	30
keyboard	1	56		no
joy	2	1	8	no

port, analog

port_tag	analog_masks
:CONFIG
:JOY1
:JOY2
:LINE0
:LINE1
:LINE2
:LINE3
:LINE4
:LINE5
:LINE6
:LINE7
:MOD_AY
:NMI
:PLUS0
:PLUS1
:PLUS2
:PLUS3
:PLUS4
:TURBO
:mouse_input1	255
:mouse_input2	255
:mouse_input3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
beta:wd179x:0	35dd	floppy_35_dd	no
beta:wd179x:0	35hd	floppy_35_hd	no
beta:wd179x:0	525qd	floppy_525_qd	yes
beta:wd179x:0	525hd	floppy_525_hd	no
beta:wd179x:1	35dd	floppy_35_dd	no
beta:wd179x:1	35hd	floppy_35_hd	no
beta:wd179x:1	525qd	floppy_525_qd	yes
beta:wd179x:1	525hd	floppy_525_hd	no
beta:wd179x:2	35dd	floppy_35_dd	no
beta:wd179x:2	35hd	floppy_35_hd	no
beta:wd179x:2	525qd	floppy_525_qd	yes
beta:wd179x:2	525hd	floppy_525_hd	no
beta:wd179x:3	35dd	floppy_35_dd	no
beta:wd179x:3	35hd	floppy_35_hd	no
beta:wd179x:3	525qd	floppy_525_qd	yes
beta:wd179x:3	525hd	floppy_525_hd	no
zxbus:1	smuc	zxbus_smuc	no
zxbus:1	neogs	zxbus_neogs	no
zxbus:1	nemoide	zxbus_nemoide	no
zxbus:2	smuc	zxbus_smuc	no
zxbus:2	neogs	zxbus_neogs	no
zxbus:2	nemoide	zxbus_nemoide	no

configuration

Hardware Version

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hardware Version	CONFIG	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Issue 2	0	yes
Issue 3	128	no

AY MOD

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
AY MOD	MOD_AY	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Single	0	yes
TurboSound	1	no
