Reno Reels (Release A, 20p Fixed, All - Cash) (set 1) (MPU4 Video)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4reno	barcrest/mpu4vid.cpp		no	no	no	yes	Reno Reels (Release A, 20p Fixed, All - Cash) (set 1) (MPU4 Video)	1996	BWB

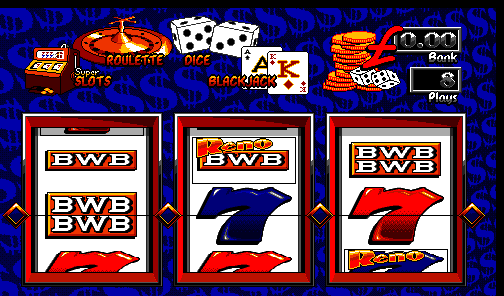

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
v4reno	25200	29/12/2025 11:31:49	504	296	96	96	0	Format24bppRgb	305:MAME 0.234 (Jul 28 2021)	5ef4d8ae1fd4569e1eb6ccfefe86f3b99b8bd31d

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
rr_27s__.a60	65536	44c9ff47	93a3155144b233c113aa3b49bd4eb5969e400a68	maincpu	0	good	no
rr______.a_1	524288	ff27d0ba	85cce36495f00a05c1806ecde37274212680e466	video	0	good	no
rr______.a_2	524288	519b9ae1	8ccfe8de0f2c85923df81af8cba6f20af43d2fe2	video	1	good	no
renosnda.bin	524288	a72a5e1b	a0d5338a400345a55484848a7612119405f617b1	okicard:msm6376	0	good	no
renosndb.bin	524288	46e9a32f	d45835a82368992597e44b3c5b9d00d8b901e733	okicard:msm6376	80000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000
audio	okicard	Barcrest Sampled Sound Program Card	1000000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850
:okicard	mpu4okisnd
:okicard:ptm_ic3ss	ptm6840
:okicard:pia_ic4ss	pia6821
:okicard:msm6376	okim6376

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Set Price of Play?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Set Price of Play?	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

High Prize Payout proportion (if available)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Prize Payout proportion (if available)	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Excess Token Lockout (Token ROMs)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Excess Token Lockout (Token ROMs)	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4reno5	Reno Reels (Release 5) (MPU4 Video)
v4reno7	Reno Reels (Release 7) (MPU4 Video)
v4reno8	Reno Reels (Release 8, 20p Fixed, Cash+Token) (MPU4 Video)
v4renom	Reno Reels (Release A, 20p Fixed, All - Cash) (Datapak) (MPU4 Video)
v4renoa	Reno Reels (Release A, 20p Fixed, All - Cash) (set 2) (MPU4 Video)
v4renoc	Reno Reels (Release A, 20p Fixed, Cash+Token) (Datapak) (set 1) (MPU4 Video)
v4renog	Reno Reels (Release A, 20p Fixed, Cash+Token) (Datapak) (set 2) (MPU4 Video)
v4renok	Reno Reels (Release A, 20p Fixed, Cash+Token) (Datapak) (set 3) (MPU4 Video)
v4renoe	Reno Reels (Release A, 20p Fixed, Cash+Token) (set 1) (MPU4 Video)
v4renoi	Reno Reels (Release A, 20p Fixed, Cash+Token) (set 2) (MPU4 Video)
v4renol	Reno Reels (Release A, 20p Fixed, Cash+Token) (set 3) (MPU4 Video)
v4renof	Reno Reels (Release A, 20p Fixed, Cash+Token) (Showcase) (set 1) (Datapak) (MPU4 Video)
v4renod	Reno Reels (Release A, 20p Fixed, Cash+Token) (Showcase) (set 1) (MPU4 Video)
v4renoj	Reno Reels (Release A, 20p Fixed, Cash+Token) (Showcase) (set 2) (Datapak) (MPU4 Video)
v4renoh	Reno Reels (Release A, 20p Fixed, Cash+Token) (Showcase) (set 2) (MPU4 Video)
v4renob	Reno Reels (Release A, 20p Switchable 20p/10p/5p, All - Cash) (MPU4 Video)
v4renos	Reno Reels (Release A, 20p Switchable 20p/10p/5p, Cash+Token) (set 1) (MPU4 Video)
v4renou	Reno Reels (Release A, 20p Switchable 20p/10p/5p, Cash+Token) (set 2) (MPU4 Video)
v4renor	Reno Reels (Release A, 20p Switchable 20p/10p/5p, Cash+Token) (Showcase) (set 1) (MPU4 Video)
v4renot	Reno Reels (Release A, 20p Switchable 20p/10p/5p, Cash+Token) (Showcase) (set 2) (MPU4 Video)
v4renop	Reno Reels (Release A, 20p Switchable 20p/25p, All - Cash) (Datapak) (MPU4 Video)
v4renoq	Reno Reels (Release A, 20p Switchable 20p/25p, All - Cash) (MPU4 Video)
v4renon	Reno Reels (Release A, 25p Fixed, All - Cash) (Datapak) (MPU4 Video)
v4renoo	Reno Reels (Release A, 25p Fixed, All - Cash) (MPU4 Video)
