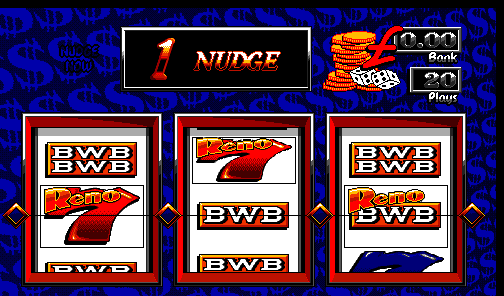

Reno Reels (Release A, 20p Fixed, Cash+Token) (Datapak) (set 1) (MPU4 Video) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4renoc	barcrest/mpu4vid.cpp		no	no	no	yes	Reno Reels (Release A, 20p Fixed, Cash+Token) (Datapak) (set 1) (MPU4 Video)	1996	BWB	v4reno	v4reno

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
rr_20ab_.a_0	65536	6da308aa	c1f418592942a9f68aac9a5a6f91911b96861d48	maincpu	0	good	no
rr______.a_1	524288	ff27d0ba	85cce36495f00a05c1806ecde37274212680e466	video	0	good	no	rr______.a_1
rr______.a_2	524288	519b9ae1	8ccfe8de0f2c85923df81af8cba6f20af43d2fe2	video	1	good	no	rr______.a_2
renosnda.bin	524288	a72a5e1b	a0d5338a400345a55484848a7612119405f617b1	okicard:msm6376	0	good	no	renosnda.bin
renosndb.bin	524288	46e9a32f	d45835a82368992597e44b3c5b9d00d8b901e733	okicard:msm6376	80000	good	no	renosndb.bin

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000
audio	okicard	Barcrest Sampled Sound Program Card	1000000
audio	okicard:msm6376	OKI MSM6376 ADPCM	128000

device_ref

name
mc6809
ay8913
nvram
timer
msc1937
ptm6840
pia6821
pia6821
pia6821
pia6821
pia6821
pia6821
meters
bacta_datalogger
coin_hopper
speaker
dac
screen
gfxdecode
scn2674
m68000
palette
ef9369
ptm6840
speaker
saa1099
acia6850
acia6850
mpu4okisnd
ptm6840
pia6821
okim6376

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
only_buttons		7		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Set Price of Play?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Set Price of Play?	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	1	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

High Prize Payout proportion (if available)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Prize Payout proportion (if available)	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Excess Token Lockout (Token ROMs)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Excess Token Lockout (Token ROMs)	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
