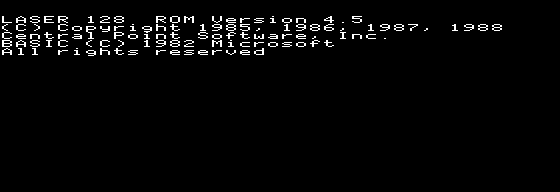

Laser 128ex (version 4.5) - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
las128ex	apple/apple2e.cpp		no	no	no	yes	Laser 128ex (version 4.5)	1988	Video Technology	apple2c	apple2c

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	560	192	60.000000	14305200	910	0	560	262	0	192	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
laser 128 video rom vt27-0706-0.bin	8192	7884cc0f	693a0a66191465825b8f7b5e746b463f3000e9cc	gfx1	800	good	no
las128ex.256	32768	b67c8ba1	8bd5f82a501b1cf9d988c7207da81e514ca254b0	maincpu	0	good	no
342-0132-c.e12	2048	e47045f4	12a2e718f5f4acd69b6c33a45a4a940b1440a481	keyboard	0	baddump	no	342-0132-c.e12

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	1021800
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	fdc:0:525:flopsndout	Speaker
audio	fdc:0:525:floppysound	Floppy sound	44100
audio	fdc:1:525:flopsndout	Speaker
audio	fdc:1:525:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_a2_clean	apple2_flop_clcracked	original
flop_a2_orig	apple2_flop_orig	compatible	A2C
flop_a2_misc	apple2_flop_misc	compatible

device_ref

name
w65c02
timer
timer
a2video_comp
apple2com
screen
speaker
speaker_sound_device
ds1216e
ram
ay3600
timer
a2bus
a2gameio
software_list
software_list
software_list
mos6551
clock
mos6551
clock
rs232
rs232
iwm
floppy_connector
floppy_525_sd
speaker
flopsnd
floppy_connector
floppy_525_sd
speaker
flopsnd
a2laser128
a2laser128
a2laser128
a2laser128
a2bus_slot
a2laser128
a2bus_slot
centronics
centronics_printer
printer_image
output_latch

sound

channels
3

ramoption

name	default
128K	yes
384K
640K
896K
1152K

device, instance

type	tag	interface	name	briefname
floppydisk	fdc:0:525	floppy_5_25	floppydisk1	flop1
floppydisk	fdc:1:525	floppy_5_25	floppydisk2	flop2
printout	parallel:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
floppydisk	fdc:0:525	floppy_5_25	mfi, dfi, dsk, do, po, rti, edd, woz, nib
floppydisk	fdc:1:525	floppy_5_25	mfi, dfi, dsk, do, po, rti, edd, woz, nib
printout	parallel:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mouse		1		no	0	255	40
keyboard		63		no

port, analog

port_tag	analog_masks
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:X8
:a2_config
:a2video:a2_video_config
:kbd_lang_select
:keyb_special
:mse_button
:mse_x	255
:mse_y	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
gameio	compeyes	a2ceyes	no
gameio	gizmo	a2gizmo	no
gameio	paddles	a2pdls	no
gameio	joy	a2joy	no
printer	terminal	serial_terminal	no
printer	sunkbd	sunkbd_adaptor	no
printer	dec_loopback	dec_rs232_loopback	no
printer	ie15	ie15_terminal	no
printer	null_modem	null_modem	no
printer	keyboard	serial_keyboard	no
printer	patch	rs232_patch_box	no
printer	swtpc8212	swtpc8212_terminal	no
printer	printer	serial_printer	no
printer	scorpion	scorpion_ic	no
printer	loopback	rs232_loopback	no
printer	mockingboard	mockingboardd	no
printer	msystems_mouse	rs232_mouse_hle_msystems	no
printer	nss_tvi	nss_tvinterface	no
printer	rs232_sync_io	rs232_sync_io	no
printer	pty	pseudo_terminal	no
printer	rs_printer	rs_serial_printer	no
modem	terminal	serial_terminal	no
modem	sunkbd	sunkbd_adaptor	no
modem	dec_loopback	dec_rs232_loopback	no
modem	ie15	ie15_terminal	no
modem	null_modem	null_modem	no
modem	keyboard	serial_keyboard	no
modem	patch	rs232_patch_box	no
modem	swtpc8212	swtpc8212_terminal	no
modem	printer	serial_printer	no
modem	scorpion	scorpion_ic	no
modem	loopback	rs232_loopback	no
modem	mockingboard	mockingboardd	no
modem	msystems_mouse	rs232_mouse_hle_msystems	no
modem	nss_tvi	nss_tvinterface	no
modem	rs232_sync_io	rs232_sync_io	no
modem	pty	pseudo_terminal	no
modem	rs_printer	rs_serial_printer	no
fdc:0	525	floppy_525_sd	yes
fdc:1	525	floppy_525_sd	yes
sl5	wicotrackball	a2wicotrackball	no
sl5	grafex	a2grafex	no
sl5	a2sd	a2sd	no
sl5	q68	a2q68	no
sl5	lancegs	a2lancegs	no
sl5	booti	a2booti	no
sl5	ccs7710	ccs7710	no
sl5	vistaa800	a2vistaa800	no
sl5	sider1	a2sider1	no
sl5	sider2	a2sider2	no
sl5	uthernet	a2uthernet	no
sl5	cmsscsi	cmsscsi	no
sl5	byte8251	a2bus_byte8251	no
sl5	hsscsi	a2hsscsi	no
sl5	ap16	a2ap16	no
sl5	midi	a2midi	no
sl5	4play	a24play	no
sl5	uniprint	a2uniprint	no
sl5	zipdrive	a2zipdrv	no
sl5	arcbd	a2arcbd	no
sl5	echoiiplus	a2echop	no
sl5	ramfactor	a2ramfac	no
sl5	ssprite	a2ssprite	no
sl5	diskiing	a2diskiing	no
sl5	dx1	a2dx1	no
sl5	sam	a2sam	no
sl5	phasor	a2phasor	no
sl5	aesms	a2aesms	no
sl5	echoii	a2echoii	no
sl5	applicard	a2aplcrd	no
sl5	focusdrive	a2focdrv	no
sl5	parprn	a2parprn	no
sl5	ap16alt	a2ap16a	no
sl5	mcms1	a2mcms1	no
sl5	memexp	a2memexp	no
sl5	ssc	a2ssc	no
sl5	corvus	a2corvus	no
sl5	diskiing13	diskii13	no
sl5	grappler	a2grappler	no
sl5	ezcgi9938	a2ezcgi3	no
sl5	themill	a2themill	no
sl5	videoterm	a2vidtrm	no
sl5	alfam2	a2alfam2	no
sl5	swyft	a2swyft	no
sl5	diskiiiwm	a2iwm	no
sl5	thclock	a2thunpl	no
sl5	pdromdrive	a2pdromdr	no
sl5	applesurance	a2surance	no
sl5	scsi	a2scsi	no
sl5	aevm80	a2aevm80	no
sl5	cffa2	a2cffa2	no
sl5	ssi	aprissi	no
sl5	softcard	a2softcard	no
sl5	noisemaker	a2bus_noisemaker	no
sl5	cffa202	a2cffa02	no
sl5	ezcgi9958	a2ezcgi5	no
sl5	ultraterm	a2ulttrm	no
sl5	twarp	a2twarp	no
sl5	bufgrapplusa	a2bufgrapplerplusa	no
sl5	ultratermenh	a2ultrme	no
sl5	4dparprn	4dparprn	no
sl5	grapplus	a2grapplerplus	no
sl5	bufgrapplus	a2bufgrapplerplus	no
sl5	vtc1	a2vtc1	no
sl5	mockingboard	a2mockbd	no
sl5	mcms2	a2mcms2	no
sl5	mouse	a2mouse	no
sl5	q68plus	a2q68plus	no
sl5	ezcgi	a2ezcgi	no
sl5	pcxport	a2pcxport	no
sl5	tm2ho	a2tmstho	no
sl5	ssbapple	a2ssbapl	no
sl5	vulcan	a2vuliie	no
sl5	superdrive	a2superdrive	no
sl5	snesmax	a2snesmax	no
sl5	parallel	a2pic	no
sl5	ceyes2	a2ceyes2	no
sl7	wicotrackball	a2wicotrackball	no
sl7	grafex	a2grafex	no
sl7	a2sd	a2sd	no
sl7	q68	a2q68	no
sl7	lancegs	a2lancegs	no
sl7	booti	a2booti	no
sl7	ccs7710	ccs7710	no
sl7	vistaa800	a2vistaa800	no
sl7	sider1	a2sider1	no
sl7	sider2	a2sider2	no
sl7	uthernet	a2uthernet	no
sl7	cmsscsi	cmsscsi	no
sl7	byte8251	a2bus_byte8251	no
sl7	hsscsi	a2hsscsi	no
sl7	ap16	a2ap16	no
sl7	midi	a2midi	no
sl7	4play	a24play	no
sl7	uniprint	a2uniprint	no
sl7	zipdrive	a2zipdrv	no
sl7	arcbd	a2arcbd	no
sl7	echoiiplus	a2echop	no
sl7	ramfactor	a2ramfac	no
sl7	ssprite	a2ssprite	no
sl7	diskiing	a2diskiing	no
sl7	dx1	a2dx1	no
sl7	sam	a2sam	no
sl7	phasor	a2phasor	no
sl7	aesms	a2aesms	no
sl7	echoii	a2echoii	no
sl7	applicard	a2aplcrd	no
sl7	focusdrive	a2focdrv	no
sl7	parprn	a2parprn	no
sl7	ap16alt	a2ap16a	no
sl7	mcms1	a2mcms1	no
sl7	memexp	a2memexp	no
sl7	ssc	a2ssc	no
sl7	corvus	a2corvus	no
sl7	diskiing13	diskii13	no
sl7	grappler	a2grappler	no
sl7	ezcgi9938	a2ezcgi3	no
sl7	themill	a2themill	no
sl7	videoterm	a2vidtrm	no
sl7	alfam2	a2alfam2	no
sl7	swyft	a2swyft	no
sl7	diskiiiwm	a2iwm	no
sl7	thclock	a2thunpl	no
sl7	pdromdrive	a2pdromdr	no
sl7	applesurance	a2surance	no
sl7	scsi	a2scsi	no
sl7	aevm80	a2aevm80	no
sl7	cffa2	a2cffa2	no
sl7	ssi	aprissi	no
sl7	softcard	a2softcard	no
sl7	noisemaker	a2bus_noisemaker	no
sl7	cffa202	a2cffa02	no
sl7	ezcgi9958	a2ezcgi5	no
sl7	ultraterm	a2ulttrm	no
sl7	twarp	a2twarp	no
sl7	bufgrapplusa	a2bufgrapplerplusa	no
sl7	ultratermenh	a2ultrme	no
sl7	4dparprn	4dparprn	no
sl7	grapplus	a2grapplerplus	no
sl7	bufgrapplus	a2bufgrapplerplus	no
sl7	vtc1	a2vtc1	no
sl7	mockingboard	a2mockbd	no
sl7	mcms2	a2mcms2	no
sl7	mouse	a2mouse	no
sl7	q68plus	a2q68plus	no
sl7	ezcgi	a2ezcgi	no
sl7	pcxport	a2pcxport	no
sl7	tm2ho	a2tmstho	no
sl7	ssbapple	a2ssbapl	no
sl7	vulcan	a2vuliie	no
sl7	superdrive	a2superdrive	no
sl7	snesmax	a2snesmax	no
sl7	parallel	a2pic	no
sl7	ceyes2	a2ceyes2	no
parallel	nlq401	nlq401	no
parallel	smartboard	centronics_smartboard	no
parallel	chessmec	centronics_chessmec	no
parallel	samdac	centronics_samdac	no
parallel	covox_stereo	covox_stereo	no
parallel	adaptator	adaptator_multitap	no
parallel	digiblst	cpcdigiblst	no
parallel	lx800	lx800	no
parallel	jx80	epson_jx80	no
parallel	ap2000	ap2000	no
parallel	ex800	ex800	no
parallel	fx80	epson_fx80	no
parallel	rx80	epson_rx80	no
parallel	covox	covox	no
parallel	pl80	comx_pl80	no
parallel	lx810l	lx810l	no
parallel	p72	p72	no
parallel	printer	centronics_printer	yes

configuration

Printer type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Printer type	a2_config	8

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Serial	0	yes
Parallel	8	no

40/80 Columns

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
40/80 Columns	a2_config	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80 columns	0	no
40 columns	64	yes

Monitor type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Monitor type	a2video:a2_video_config	7

setting

name	value	default
Color	0	yes
B&W	4	no
Green	5	no
Amber	6	no
B&W for NTSC shader	7	no

Color algorithm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Color algorithm	a2video:a2_video_config	112

setting

name	value	default
Pixel-run (B&W bias)	0	yes
Pixel-run (color bias)	16	no
Box filter	32	no

Lores artifacts

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lores artifacts	a2video:a2_video_config	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Text color

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Text color	a2video:a2_video_config	768

setting

name	value	default
Off	0	yes
40-column only	256	no
On	768	no

Keyboard

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Keyboard	kbd_lang_select	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
QWERTY	0	yes
DVORAK	16	no
