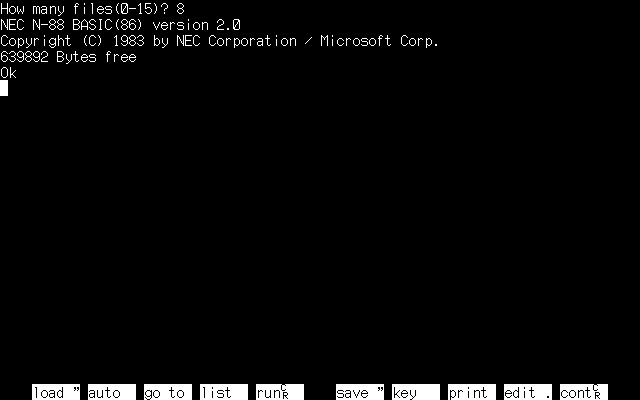

PC-9821Ce (98MULTi CanBe) - mame (0283) machine

MAME: 0283 - Released: 2025-11-27T19:22:18 - Machines: 49383 - rom: 366513 - disk: 1391

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
pc9821ce	nec/pc9821.cpp		no	no	no	yes	PC-9821Ce (98MULTi CanBe)	1993	NEC

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	640	400	56.423135	21052600	848	0	640	440	0	400	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
nyf5200_d27c4000d-15.bin	524288	4c2fa623	3acc1da7e32711a7579575b1520b44f6b2c3c2f8	biosrom	0	good	no
font_ce2.rom	288768	d1c2702a	e7781e9d35b6511d12631641d029ad2ba3f7daef	chargen	0	baddump	no
24256c-x01.bin	32768	28ec1375	9d8e98e703ce0f483df17c79f7e841c5c5cd1692	raw_kanji	0	baddump	no
24256c-x02.bin	32768	90985158	78fb106131a3f4eb054e87e00fe4f41193416d65	raw_kanji	1	baddump	no
24256c-x03.bin	32768	d4893543	eb8c1bee0f694e1e0c145a24152222d4e444e86f	raw_kanji	40000	baddump	no
24256c-x04.bin	32768	5dec0fc2	41000da14d0805ed0801b31eb60623552e50e41c	raw_kanji	40001	baddump	no

chip

type	tag	name	clock
cpu	maincpu	Intel I486	25000000
cpu	i8237	AM9517A	15974400
audio	fdc_2hd:0:35hd:flopsndout	Speaker
audio	fdc_2hd:0:35hd:floppysound	Floppy sound	44100
audio	fdc_2hd:1:35hd:flopsndout	Speaker
audio	fdc_2hd:1:35hd:floppysound	Floppy sound	44100
audio	mono	Speaker
audio	cbus0:sound_pc9821ce:speaker	Speaker
audio	cbus0:sound_pc9821ce:opna	YM2608 OPNA	7987000
audio	cbus0:sound_pc9821ce:ldac	16-Bit R-2R Twos Complement DAC
audio	cbus0:sound_pc9821ce:rdac	16-Bit R-2R Twos Complement DAC
audio	dac1bit	Filtered DAC
audio	headphone	Speaker
audio	ide2:0:pc98_cd:cdda	CD/DA	44100

softwarelist

tag	name	status	filter
disk_list	pc98	original
flop_generic_list	generic_flop_525	compatible	pc98
hdd_list	pc98_hdd	original
cd_list	pc98_cd	original

device_ref

name
i486
pit8253
pit_counter
pit_counter
pit_counter
am9517a
pic8259
pic8259
i8255
i8255
i8251
clock
pc98_119_kbd
i8255
timer
i8251
rs232
pc98_memsw
upd765a
floppy_connector
floppy_35_hd
speaker
flopsnd
floppy_connector
floppy_35_hd
speaker
flopsnd
software_list
software_list
screen
upd7220a
upd7220a
speaker
gfxdecode
pc98_cbus_root
pc98_cbus_slot
sound_pc9821ce
ipt_merge_any_hi
speaker
ym2608
dac_16bit_r2r_tc
dac_16bit_r2r_tc
msx_general_purpose_port
msx_joystick
93c06_16
pc98_cbus_slot
pc98_cbus_slot
pc98_cbus_slot
address_map_bank
upd4990a
speaker_sound_device
palette
speaker
ata_interface
ata_slot
idehd
harddisk_image
ata_slot
ata_interface
ata_slot
pc98_cd
cdrom_image
cdda
ata_slot
ipt_merge_any_hi
software_list
software_list
pc98_sdip
pc9801_61_simm
pc9801_61_2mb

sound

channels
5

feature

type	status	overall
sound		imperfect
microphone		unemulated

device, instance

type	tag	interface	name	briefname
floppydisk	fdc_2hd:0:35hd	floppy_3_5	floppydisk1	flop1
floppydisk	fdc_2hd:1:35hd	floppy_3_5	floppydisk2	flop2
harddisk	ide1:0:hdd:image	ide_hdd,hdd	harddisk	hard
cdrom	ide2:0:pc98_cd:image	cdrom	cdrom	cdrm

device, extension

type	tag	interface	extension_names
floppydisk	fdc_2hd:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, hdm, fdi, fdd, dcp, dcu, dip, nfd
floppydisk	fdc_2hd:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, hdm, fdi, fdd, dcp, dcu, dip, nfd
harddisk	ide1:0:hdd:image	ide_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	ide2:0:pc98_cd:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
mouse	1	3		no	0	255	30	30
keyboard	1	104		no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:BIOS_LOAD
:DSW1
:DSW2
:DSW3
:MOUSE_B
:MOUSE_X	255
:MOUSE_Y	255
:cbus0:sound_pc9821ce:OPNA_DSW
:cbus0:sound_pc9821ce:joy_port:joystick:JOY
:keyb:KEY0
:keyb:KEY1
:keyb:KEY2
:keyb:KEY3
:keyb:KEY4
:keyb:KEY5
:keyb:KEY6
:keyb:KEY7
:keyb:KEY8
:keyb:KEY9
:keyb:KEYA
:keyb:KEYB
:keyb:KEYC
:keyb:KEYD
:keyb:KEYE
:keyb:KEYF

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
serial	terminal	serial_terminal	no
serial	sunkbd	sunkbd_adaptor	no
serial	votraxtnt	serial_votraxtnt	no
serial	rs_printer	rs_serial_printer	no
serial	dec_loopback	dec_rs232_loopback	no
serial	h19	serial_heath_h19	no
serial	ie15	ie15_terminal	no
serial	null_modem	null_modem	no
serial	keyboard	serial_keyboard	no
serial	patch	rs232_patch_box	no
serial	swtpc8212	swtpc8212_terminal	no
serial	printer	serial_printer	no
serial	scorpion	scorpion_ic	no
serial	loopback	rs232_loopback	no
serial	mockingboard	mockingboardd	no
serial	msystems_mouse	rs232_mouse_hle_msystems	no
serial	nss_tvi	nss_tvinterface	no
serial	rs232_sync_io	rs232_sync_io	no
serial	pty	pseudo_terminal	no
fdc_2hd:0	35hd	floppy_35_hd	yes
fdc_2hd:0	525hd	floppy_525_hd	no
fdc_2hd:0	525dd	floppy_525_dd	no
fdc_2hd:1	35hd	floppy_35_hd	yes
fdc_2hd:1	525hd	floppy_525_hd	no
fdc_2hd:1	525dd	floppy_525_dd	no
cbus0:sound_pc9821ce:joy_port	vaus	msx_vaus	no
cbus0:sound_pc9821ce:joy_port	townspad	msx_townspad	no
cbus0:sound_pc9821ce:joy_port	towns6b	msx_towns6b	no
cbus0:sound_pc9821ce:joy_port	sega	msx_segactrl	no
cbus0:sound_pc9821ce:joy_port	mouse	msx_mouse	no
cbus0:sound_pc9821ce:joy_port	magickey	msx_magickey	no
cbus0:sound_pc9821ce:joy_port	libbler	msx_libblerpad	no
cbus0:sound_pc9821ce:joy_port	martypad	msx_martypad	no
cbus0:sound_pc9821ce:joy_port	joystick	msx_joystick	yes
cbus0:sound_pc9821ce:joy_port	xe1ap	msx_xe1ap	no
cbus0:sound_pc9821ce:joy_port	hypershot	msx_hypershot	no
cbus1	fdd_2hd	pc98_fdd_2hd	no
cbus1	pc9801_14	pc9801_14	no
cbus1	pc9801_118	pc9801_118	no
cbus1	fdd_2dd	pc98_fdd_2dd	no
cbus1	pc9801_27	pc9801_27	no
cbus1	pc9801_26	pc9801_26	no
cbus1	sb16	sb16_ct2720	no
cbus1	pc9801_55u	pc9801_55u	no
cbus1	otomichan_kai	pc98_otomichan_kai	no
cbus1	pc9801_55l	pc9801_55l	no
cbus1	pc9801_86	pc9801_86	no
cbus1	amd98	amd98	no
cbus1	mpu_pc98	mpu_pc98	no
cbus1	speakboard	speakboard	no
cbus1	wavestar	qvision_wavestar	no
cbus2	fdd_2hd	pc98_fdd_2hd	no
cbus2	pc9801_14	pc9801_14	no
cbus2	pc9801_118	pc9801_118	no
cbus2	fdd_2dd	pc98_fdd_2dd	no
cbus2	pc9801_27	pc9801_27	no
cbus2	pc9801_26	pc9801_26	no
cbus2	sb16	sb16_ct2720	no
cbus2	pc9801_55u	pc9801_55u	no
cbus2	otomichan_kai	pc98_otomichan_kai	no
cbus2	pc9801_55l	pc9801_55l	no
cbus2	pc9801_86	pc9801_86	no
cbus2	amd98	amd98	no
cbus2	mpu_pc98	mpu_pc98	no
cbus2	speakboard	speakboard	no
cbus2	wavestar	qvision_wavestar	no
cbus3	fdd_2hd	pc98_fdd_2hd	no
cbus3	pc9801_14	pc9801_14	no
cbus3	pc9801_118	pc9801_118	no
cbus3	fdd_2dd	pc98_fdd_2dd	no
cbus3	pc9801_27	pc9801_27	no
cbus3	pc9801_26	pc9801_26	no
cbus3	sb16	sb16_ct2720	no
cbus3	pc9801_55u	pc9801_55u	no
cbus3	otomichan_kai	pc98_otomichan_kai	no
cbus3	pc9801_55l	pc9801_55l	no
cbus3	pc9801_86	pc9801_86	no
cbus3	amd98	amd98	no
cbus3	mpu_pc98	mpu_pc98	no
cbus3	speakboard	speakboard	no
cbus3	wavestar	qvision_wavestar	no
ide1:0	px320a	px320a	no
ide1:0	zip100	zip100_ide	no
ide1:0	cr589	cr589	no
ide1:0	cp2024	cp2024	no
ide1:0	xm3301	xm3301	no
ide1:0	cf	atacf	no
ide1:0	cdrom	cdrom	no
ide1:0	hdd	idehd	yes
ide1:1	px320a	px320a	no
ide1:1	zip100	zip100_ide	no
ide1:1	cr589	cr589	no
ide1:1	cp2024	cp2024	no
ide1:1	xm3301	xm3301	no
ide1:1	cf	atacf	no
ide1:1	cdrom	cdrom	no
ide1:1	hdd	idehd	no
ide2:0	pc98_cd	pc98_cd	yes
ide2:1	pc98_cd	pc98_cd	no
simm	16mb	pc9801_61_16mb	no
simm	8mb	pc9801_61_8mb	no
simm	4mb	pc9801_61_4mb	no
simm	2mb	pc9801_61_2mb	yes

configuration

Load IDE BIOS

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Load IDE BIOS	BIOS_LOAD	4

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	4	no

dipswitch

PC-9801-86: Port Base

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PC-9801-86: Port Base	cbus0:sound_pc9821ce:OPNA_DSW	1

location

name	number	inverted
OPNA_SW	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0x188	0	yes
0x288	1	no

PC-9801-86: Enable sound ROM

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PC-9801-86: Enable sound ROM	cbus0:sound_pc9821ce:OPNA_DSW	2

location

name	number	inverted
OPNA_SW	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	2	no

PC-9801-86: Interrupt level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PC-9801-86: Interrupt level	cbus0:sound_pc9821ce:OPNA_DSW	12

location

name	number	inverted
OPNA_SW	3	yes
OPNA_SW	4	yes

value

name	value	default
IRQ 0	12	no
IRQ 4	8	no
IRQ 5	0	yes
IRQ 6	4	no

PC-9801-86: Interrupt enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PC-9801-86: Interrupt enable	cbus0:sound_pc9821ce:OPNA_DSW	16

location

name	number	inverted
OPNA_SW	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	0	yes
No	16	no

PC-9801-86: ID number

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
PC-9801-86: ID number	cbus0:sound_pc9821ce:OPNA_DSW	224

location

name	number	inverted
OPNA_SW	6	yes
OPNA_SW	7	yes
OPNA_SW	8	yes

value

name	value	default
0	0	no
1	32	no
2	64	no
3	96	no
4	128	yes
5	160	no
6	192	no
7	224	no
