£6-X (BWB) (Release 3, 20p Fixed, Cash+Token) (set 1) (MPU4 Video)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
v4sixx	barcrest/mpu4vid.cpp		no	no	no	yes	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token) (set 1) (MPU4 Video)	199?	BWB

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1

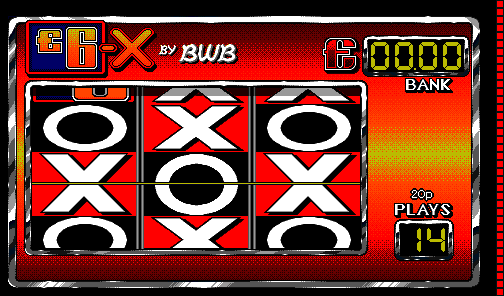

v4sixx	15820	29/12/2025 11:31:49	504	296	96	96	0	Format24bppRgb	305:MAME 0.234 (Jul 28 2021)	03bfdd20b4651134178bba2f3afb8f71351e2941

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	504	296	49.920128	10000000	640	0	504	313	0	296	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
6x_20s__.3_0	65536	452ba9aa	4034bfdba6cb46a63a59ba56e19ae912f5633412	maincpu	0	good	no
6x______.3_1	65536	870dc043	a0bcc8dbfc3cfdd43ed1d6ed5308c43a6f4f8117	video	0	good	no
6x______.3_2	65536	f9ff2007	87833cd36859332195c845fffb8a310eb561ae2b	video	1	good	no
6x______.3_3	65536	e8a4531d	c816b3b270f1aeaf3ee90aa65dfeea59e8862d1a	video	20000	good	no
6x______.3_4	65536	4129b8af	30ad007f543e570021292f3eef728b0697c31bb5	video	20001	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	6880000
cpu	video	Motorola MC68000	10000000
audio	ay8913	AY-3-8913 PSG	1720000
audio	mono	Speaker
audio	alarmdac	1-Bit DAC
audio	speaker	Speaker
audio	saa	Philips SAA1099	8000000

device_ref

tag	name
:maincpu	mc6809
:ay8913	ay8913
:nvram	nvram
:50hz	timer
:vfd	msc1937
:ptm_ic2	ptm6840
:pia_ic3	pia6821
:pia_ic4	pia6821
:pia_ic5	pia6821
:pia_ic6	pia6821
:pia_ic7	pia6821
:pia_ic8	pia6821
:meters	meters
:dataport	bacta_datalogger
:hopper	coin_hopper
:mono	speaker
:alarmdac	dac
:screen	screen
:gfxdecode	gfxdecode
:scn2674_vid	scn2674
:video	m68000
:palette	palette
:ef9369	ef9369
:6840ptm_68k	ptm6840
:speaker	speaker
:saa	saa1099
:acia6850_0	acia6850
:acia6850_1	acia6850

sound

channels
2

input

players	coins	service	tilt
1	5	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
only_buttons		5		no

port, analog

port_tag	analog_masks
:AUX1
:AUX2
:BLACK1
:BLACK2
:DIL1
:DIL2
:ORANGE1
:ORANGE2
:hopper:TEST

configuration

Jackpot / Prize Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Jackpot / Prize Key	ORANGE2	15

setting

name	value	default
Not fitted	0	yes
3 GBP	1	no
4 GBP	2	no
5 GBP	8	no
6 GBP	3	no
6 GBP Token	4	no
8 GBP	5	no
8 GBP Token	6	no
10 GBP	7	no
15 GBP	9	no
25 GBP	10	no
25 GBP - Licensed Betting Office Profile	11	no
35 GBP	12	no
70 GBP	13	no
Reserved 0e	14	no
Reserved 0f	15	no

Percentage Key

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Percentage Key	ORANGE2	240

setting

name	value	default
Not fitted / 68% (Invalid for UK Games)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DIL1	1

location

name	number	inverted
DIL1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Price of Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Price of Play	DIL1	2

location

name	number	inverted
DIL1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	0	yes
High	2	no

High Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Token Payout Proportion	DIL1	4

location

name	number	inverted
DIL1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

Low Token Payout Proportion

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Low Token Payout Proportion	DIL1	8

location

name	number	inverted
DIL1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	8	no

Target Percentage (if key not fitted)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Target Percentage (if key not fitted)	DIL1	240

location

name	number	inverted
DIL1	5	no
DIL1	6	no
DIL1	7	no
DIL1	8	no

value

name	value	default
Unset (Program Optimum)	0	yes
70	16	no
72	32	no
74	48	no
76	64	no
78	80	no
80	96	no
82	112	no
84	128	no
86	144	no
88	160	no
90	176	no
92	192	no
94	208	no
96	224	no
98	240	no

Clear MPU Memory

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Clear MPU Memory	DIL2	1

location

name	number	inverted
DIL2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

Enable Cash Refill

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Enable Cash Refill	DIL2	2

location

name	number	inverted
DIL2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

Inhibit Win Banking

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Inhibit Win Banking	DIL2	4

location

name	number	inverted
DIL2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Spin Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Spin Speed	DIL2	8

location

name	number	inverted
DIL2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Fast	8	no

Halt Payout when Empty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Halt Payout when Empty	DIL2	16

location

name	number	inverted
DIL2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

Coin Alarm Inhibit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm Inhibit	DIL2	32

location

name	number	inverted
DIL2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Excess Token Lockout (Token games only)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Excess Token Lockout (Token games only)	DIL2	64

location

name	number	inverted
DIL2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Single Credit Entry

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Single Credit Entry	DIL2	128

location

name	number	inverted
DIL2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

clones

name	description
v4sixxk	£6-X (BWB) (Release 3, 20p Fixed, All - Cash) (MPU4 Video)
v4sixxa	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token) (set 2) (MPU4 Video)
v4sixxe	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token) (set 3) (MPU4 Video)
v4sixxc	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token, % Key) (MPU4 Video)
v4sixxb	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token, Datapak) (set 1) (MPU4 Video)
v4sixxd	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token, Datapak) (set 2) (MPU4 Video)
v4sixxf	£6-X (BWB) (Release 3, 20p Fixed, Cash+Token, Datapak, % Key) (MPU4 Video)
v4sixxl	£6-X (BWB) (Release 3, 20p Switchable to 10p, All - Cash) (MPU4 Video)
v4sixxm	£6-X (BWB) (Release 3, 20p Switchable to 10p, All - Cash, Datapak) (MPU4 Video)
v4sixxg	£6-X (BWB) (Release 3, 20p Switchable to 10p, Cash+Token) (MPU4 Video)
v4sixxj	£6-X (BWB) (Release 3, 20p Switchable to 10p, Cash+Token, % Key) (MPU4 Video)
v4sixxi	£6-X (BWB) (Release 3, 20p Switchable to 10p, Cash+Token, Datapak) (MPU4 Video)
v4sixxh	£6-X (BWB) (Release 3, 20p Switchable to 10p, Cash+Token, Datapak, % Key) (MPU4 Video)
