EURO PC II - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
europc2	pc/europc.cpp		no	no	no	yes	EURO PC II	198?	Schneider Rdf. AG

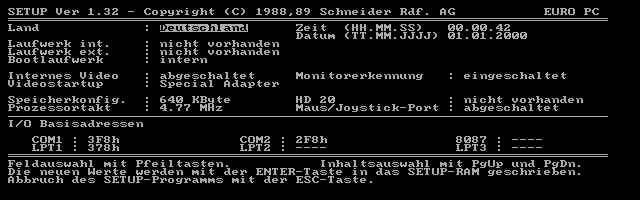

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
europc2	7363	29/12/2025 11:31:21	640	200	96	96	0	Format24bppRgb	305:MAME 0.190 (Sep 26 2017)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
isa1:aga:screen	raster	0	640	200	59.922748	14318181	912	0	640	262	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
europcii_bios_v3.01_500145.bin	32768	ecca89c8	802b89babdf0ab0a0a9c21d1234e529c8386d6fb	bios	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8088	9545440
cpu	mb:dma8237	AM9517A	4772727
cpu	kbd:mcu	Motorola MC6805U2	4000000
audio	mb:mono	Speaker
audio	mb:speaker	Filtered DAC
audio	isa4:fdc:fdc:0:35dd:flopsndout	Speaker
audio	isa4:fdc:fdc:0:35dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
disk_list	ibm5150	original

device_ref

tag	name
:maincpu	i8088
:mb	pcnoppi_mb
:mb:pit8253	pit8253
:mb:pit8253:counter0	pit_counter
:mb:pit8253:counter1	pit_counter
:mb:pit8253:counter2	pit_counter
:mb:dma8237	am9517a
:mb:pic8259	pic8259
:mb:isa	isa8
:mb:mono	speaker
:mb:speaker	speaker_sound_device
:kbd	europc_kbd
:kbd:mcu	m6805u2
:isa1	isa8_slot
:isa1:aga	isa_aga
:isa1:aga:screen	screen
:isa1:aga:palette	palette
:isa1:aga:mc6845_aga	mc6845
:isa2	isa8_slot
:isa2:lpt	isa_lpt
:isa2:lpt:lpt	pc_lpt
:isa2:lpt:lpt:centronics	centronics
:isa2:lpt:lpt:centronics:printer	centronics_printer
:isa2:lpt:lpt:centronics:printer:printer	printer_image
:isa2:lpt:lpt:cent_data_in	input_buffer
:isa2:lpt:lpt:cent_ctrl_in	input_buffer
:isa2:lpt:lpt:cent_status_in	input_buffer
:isa2:lpt:lpt:cent_data_out	output_latch
:isa2:lpt:lpt:cent_ctrl_out	output_latch
:isa3	isa8_slot
:isa3:com	isa_com
:isa3:com:uart_0	ins8250
:isa3:com:uart_1	ins8250
:isa3:com:serport0	rs232
:isa3:com:serport0:logitech_mouse	rs232_mouse_hle_logitech
:isa3:com:serport1	rs232
:isa4	isa8_slot
:isa4:fdc	europc_fdc
:isa4:fdc:fdc	wd37c65c
:isa4:fdc:fdc:0	floppy_connector
:isa4:fdc:fdc:0:35dd	floppy_35_dd
:isa4:fdc:fdc:0:35dd:flopsndout	speaker
:isa4:fdc:fdc:0:35dd:floppysound	flopsnd
:isa4:fdc:fdc:1	floppy_connector
:rtc	m3002
:ram	ram
:disk_list	software_list

sound

channels
2

ramoption

name	default
256K
640K
768K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
printout	isa2:lpt:lpt:centronics:printer:printer				printout	prin
floppydisk	isa4:fdc:fdc:0:35dd	floppy_3_5			floppydisk	flop

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
printout	isa2:lpt:lpt:centronics:printer:printer				prn
floppydisk	isa4:fdc:fdc:0:35dd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, xdf

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		3		no	0	61440	100
keyboard		86		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:isa1:aga:cga_config
:isa2:lpt:DSW
:isa3:com:serport0:logitech_mouse:BTN
:isa3:com:serport0:logitech_mouse:X	4095
:isa3:com:serport0:logitech_mouse:Y	4095
:kbd:COLUMN1
:kbd:COLUMN10
:kbd:COLUMN11
:kbd:COLUMN12
:kbd:COLUMN13
:kbd:COLUMN14
:kbd:COLUMN15
:kbd:COLUMN2
:kbd:COLUMN3
:kbd:COLUMN4
:kbd:COLUMN5
:kbd:COLUMN6
:kbd:COLUMN7
:kbd:COLUMN8
:kbd:COLUMN9

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
isa1	ubpnic	ubpnic	no
isa1	ibm_speech	isa_ibm_speech	no
isa1	babyblue2	isa_bblue2	no
isa1	epc_twib	eistwib	no
isa1	finalchs	isa_finalchs	no
isa1	epc_mda	isa_epc_mda	no
isa1	chessmsr	isa_chessmsr	no
isa1	asc88	asc88	no
isa1	pds	isa_pds	no
isa1	prose4k1	isa_prose4001	no
isa1	dectalk	dectalk_isa	no
isa1	lba_enhancer	lba_enhancer	no
isa1	wd1002a_wx1	wd1002a_wx1	no
isa1	lpt	isa_lpt	no
isa1	zxbus_adapter	zxbus_adapter	no
isa1	3c503	el2_3c503	no
isa1	pcmidi	isa_pcmidi	no
isa1	3xtwin	3xtwin	no
isa1	acb2072	acb2072	no
isa1	gblaster	isa_gblaster	no
isa1	ssi2001	ssi2001	no
isa1	hercules	isa_hercules	no
isa1	vga	ibm_vga	no
isa1	com	isa_com	no
isa1	chessmdr	isa_chessmdr	no
isa1	ibm_mfc	ibm_mfc	no
isa1	cga_cportiii	cga_cportiii	no
isa1	xtide	xtide	no
isa1	cga_m24	cga_m24	no
isa1	mda	isa_ibm_mda	no
isa1	num9rev	number_9_rev	no
isa1	fdc_ps2	isa8_fdc_ps2	no
isa1	aga	isa_aga	yes
isa1	comat	isa_com_at	no
isa1	ne1000	ne1000	no
isa1	ega	ega	no
isa1	wyse700	wyse700	no
isa1	pgc	isa_ibm_pgc	no
isa1	cga_poisk2	cga_poisk2	no
isa1	stereo_fx	stereo_fx	no
isa1	cga_mc1502	cga_mc1502	no
isa1	cga_ec1841	ec1841_0002	no
isa1	fdc	isa8_fdc_superio	no
isa1	cga	cga	no
isa1	sblaster1_5	isa_sblaster1_5	no
isa1	wdxt_gen	wdxt_gen	no
isa1	opus108pm	opus108pm	no
isa1	side116	side116	no
isa1	wd90c90_jk	wd90c90_jk	no
isa1	fdc_at	isa8_fdc_at	no
isa1	fdc_xt	isa8_fdc_xt	no
isa1	fdc_smc	isa8_fdc_smc	no
isa1	mpu401	isa_mpu401	no
isa1	sblaster1_0	isa_sblaster1_0	no
isa1	aga_pc200	isa_aga_pc200	no
isa1	hdc	isa_hdc	no
isa1	fdc344	fdc344	no
isa1	fdcmag	fdcmag	no
isa1	adlib	isa_adlib	no
isa2:lpt:lpt:centronics	nlq401	nlq401	no
isa2:lpt:lpt:centronics	smartboard	centronics_smartboard	no
isa2:lpt:lpt:centronics	chessmec	centronics_chessmec	no
isa2:lpt:lpt:centronics	samdac	centronics_samdac	no
isa2:lpt:lpt:centronics	covox_stereo	covox_stereo	no
isa2:lpt:lpt:centronics	adaptator	adaptator_multitap	no
isa2:lpt:lpt:centronics	digiblst	cpcdigiblst	no
isa2:lpt:lpt:centronics	lx800	lx800	no
isa2:lpt:lpt:centronics	jx80	epson_jx80	no
isa2:lpt:lpt:centronics	ap2000	ap2000	no
isa2:lpt:lpt:centronics	ex800	ex800	no
isa2:lpt:lpt:centronics	fx80	epson_fx80	no
isa2:lpt:lpt:centronics	rx80	epson_rx80	no
isa2:lpt:lpt:centronics	mz1p16	mz1p16	no
isa2:lpt:lpt:centronics	covox	covox	no
isa2:lpt:lpt:centronics	pl80	comx_pl80	no
isa2:lpt:lpt:centronics	lx810l	lx810l	no
isa2:lpt:lpt:centronics	p72	p72	no
isa2:lpt:lpt:centronics	printer	centronics_printer	yes
isa3:com:serport0	null_modem	null_modem	no
isa3:com:serport0	terminal	serial_terminal	no
isa3:com:serport0	msystems_mouse	rs232_mouse_hle_msystems	no
isa3:com:serport0	sun_kbd	sunkbd_adaptor	no
isa3:com:serport0	wheel_mouse	rs232_mouse_hle_wheel	no
isa3:com:serport0	rotatable_mouse	rs232_mouse_hle_rotatable	no
isa3:com:serport0	logitech_mouse	rs232_mouse_hle_logitech	yes
isa3:com:serport0	microsoft_mouse	rs232_mouse_hle_msft	no
isa3:com:serport1	null_modem	null_modem	no
isa3:com:serport1	terminal	serial_terminal	no
isa3:com:serport1	msystems_mouse	rs232_mouse_hle_msystems	no
isa3:com:serport1	sun_kbd	sunkbd_adaptor	no
isa3:com:serport1	wheel_mouse	rs232_mouse_hle_wheel	no
isa3:com:serport1	rotatable_mouse	rs232_mouse_hle_rotatable	no
isa3:com:serport1	logitech_mouse	rs232_mouse_hle_logitech	no
isa3:com:serport1	microsoft_mouse	rs232_mouse_hle_msft	no
isa4:fdc:fdc:1	35dd	floppy_35_dd	no
isa4:fdc:fdc:1	525dd	floppy_525_dd	no

configuration

CGA character set

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CGA character set	isa1:aga:cga_config	3

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Alternative	1	no

CGA monitor type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CGA monitor type	isa1:aga:cga_config	28

setting

name	value	default
Colour RGB	0	yes
Mono RGB	4	no
Colour composite	8	no
Television	12	no
LCD	16	no

CGA chipset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CGA chipset	isa1:aga:cga_config	224

setting

name	value	default
IBM	0	yes
Amstrad PC1512	32	no
Amstrad PPC512	64	no
ATI	96	no
Paradise	128	no

dipswitch

Game port enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game port enable	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

LPT3: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LPT3: enable	DSW1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	2	no

LPT2: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LPT2: enable	DSW1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	4	no

LPT1: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LPT1: enable	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

COM4: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM4: enable	DSW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	16	no

COM3: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM3: enable	DSW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	32	no

COM2: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM2: enable	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	64	yes

COM1: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM1: enable	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	128	yes

HDC2 (CA00:0 port 324-327)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HDC2 (CA00:0 port 324-327)	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

HDC1 (C800:0 port 320-323)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HDC1 (C800:0 port 320-323)	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

Base address

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Base address	isa2:lpt:DSW	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0x378	0	yes
0x278	1	no
