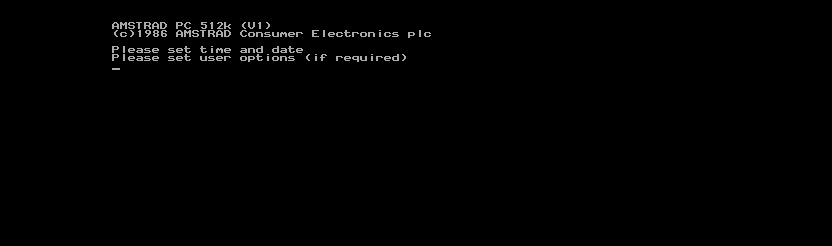

PC1512 HD20 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
pc1512hd20	amstrad/pc1512.cpp		no	no	no	yes	PC1512 HD20	1986	Amstrad plc	pc1512	pc1512

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	910	260	119.845499	28636363	912	0	910	262	0	260	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
40044.ic132	8192	f72f1582	7781d4717917262805d514b331ba113b1e05a247	ic120	0	good	no	40044.ic132	v1
40043.ic129	8192	668fcc94	74002f5cc542df442eec9e2e7a18db3598d8c482	ic120	1	good	no	40043.ic129	v1
40044v2.ic132	8192	1aec54fa	b12fd73cfc35a240ed6da4dcc4b6c9910be611e0	ic120	0	good	no	40044v2.ic132	v2
40043v2.ic129	8192	d2d4d2de	c376fd1ad23025081ae16c7949e88eea7f56e1bb	ic120	1	good	no	40043v2.ic129	v2
40044-2.ic132	8192	ea527e6e	b77fa44767a71a0b321a88bb0a394f1125b7c220	ic120	0	good	no	40044-2.ic132	v3
40043-2.ic129	8192	532c3854	18a17b710f9eb079d9d7216d07807030f904ceda	ic120	1	good	no	40043-2.ic129	v3
40045.ic127	8192	dd5e030f	7d858bbb2e8d6143aa67ab712edf5f753c2788a7	ic126	0	good	no	40045.ic127	v1
40078.ic127	8192	ae9c0d04	bc8dc4dcedeea5bc1c04986b1f105ad93cb2ebcd	ic126	0	good	no	40078.ic127	v2
40078.ic127	8192	ae9c0d04	bc8dc4dcedeea5bc1c04986b1f105ad93cb2ebcd	ic126	0	good	no	40078.ic127	v3

chip

type	tag	name	clock
cpu	ic120	Intel 8086	8000000
cpu	kb:ic801	Intel 8048	6000000
cpu	ic130	AM9517A	4000000
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	ic112:0:525dd:flopsndout	Speaker
audio	ic112:0:525dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
flop_list	pc1512_flop	original
hdd_list	pc1512_hdd	original

device_ref

name
i8086
screen
ams40041
speaker
speaker_sound_device
pc1512kb
i8048
vcs_control_port
pc1512_mouse_port
pc1512_mouse
am9517a
pic8259
pit8253
pit_counter
pit_counter
pit_counter
mc146818
upd765a
floppy_connector
floppy_525_dd
speaker
flopsnd
floppy_connector
ins8250
centronics
centronics_printer
printer_image
output_latch
rs232
isa8
isa8_slot
isa_hdc
xt_hdc
harddisk_image
harddisk_image
isa8_slot
isa8_slot
ram
software_list
software_list

biosset

name	description	default
v1	Version 1	no
v2	Version 2	no
v3	Version 3	no

sound

channels
2

ramoption

name	default
544K
576K
608K
640K
512K	yes

device, instance

type	tag	interface	name	briefname
floppydisk	ic112:0:525dd	floppy_5_25	floppydisk	flop
printout	centronics:printer:printer		printout	prin
harddisk	isa1:hdc:hdc:primary	st_hdd	harddisk1	hard1
harddisk	isa1:hdc:hdc:slave	st_hdd	harddisk2	hard2

device, extension

type	tag	interface	extension_names
floppydisk	ic112:0:525dd	floppy_5_25	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf
printout	centronics:printer:printer		prn
harddisk	isa1:hdc:hdc:primary	st_hdd	chd, hd, hdv, 2mg, hdi
harddisk	isa1:hdc:hdc:slave	st_hdd	chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mouse				no	0	255	100	5
keyboard		85		no

port, analog

port_tag	analog_masks
:LK
:isa1:hdc:HDD
:isa1:hdc:ROM
:kb:Y1
:kb:Y10
:kb:Y11
:kb:Y2
:kb:Y3
:kb:Y4
:kb:Y5
:kb:Y6
:kb:Y7
:kb:Y8
:kb:Y9
:mous:mouse:MOUSEB
:mous:mouse:MOUSEX	255
:mous:mouse:MOUSEY	255

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
kb:joy	trakball	atari_trakball	no
kb:joy	wheel	vcs_wheel	no
kb:joy	joybstr	vcs_joystick_booster	no
kb:joy	cx85	atari_cx85	no
kb:joy	keypad	vcs_keypad	no
kb:joy	lp	vcs_lightpen	no
kb:joy	pad	vcs_paddles	no
kb:joy	mouse	vcs_mouse	no
kb:joy	joy	vcs_joystick	no
mous	mouse	pc1512_mouse	yes
ic112:0	525dd	floppy_525_dd	yes
ic112:1	525dd	floppy_525_dd	no
centronics	nlq401	nlq401	no
centronics	smartboard	centronics_smartboard	no
centronics	chessmec	centronics_chessmec	no
centronics	samdac	centronics_samdac	no
centronics	covox_stereo	covox_stereo	no
centronics	adaptator	adaptator_multitap	no
centronics	digiblst	cpcdigiblst	no
centronics	lx800	lx800	no
centronics	jx80	epson_jx80	no
centronics	ap2000	ap2000	no
centronics	ex800	ex800	no
centronics	fx80	epson_fx80	no
centronics	rx80	epson_rx80	no
centronics	covox	covox	no
centronics	pl80	comx_pl80	no
centronics	lx810l	lx810l	no
centronics	p72	p72	no
centronics	printer	centronics_printer	yes
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	rs_printer	rs_serial_printer	no
isa1	babyblue2	isa_bblue2	no
isa1	epc_twib	eistwib	no
isa1	finalchs	isa_finalchs	no
isa1	epc_mda	isa_epc_mda	no
isa1	chessmsr	isa_chessmsr	no
isa1	asc88	asc88	no
isa1	pds	isa_pds	no
isa1	prose4k1	isa_prose4001	no
isa1	dectalk	dectalk_isa	no
isa1	lba_enhancer	lba_enhancer	no
isa1	wd1002a_wx1	wd1002a_wx1	no
isa1	lpt	isa_lpt	no
isa1	3c503	el2_3c503	no
isa1	pcmidi	isa_pcmidi	no
isa1	wd90c90_jk	wd90c90_jk	no
isa1	fdc_at	isa8_fdc_at	no
isa1	aga	isa_aga	no
isa1	com	isa_com	no
isa1	chessmdr	isa_chessmdr	no
isa1	ibm_mfc	ibm_mfc	no
isa1	cga_cportiii	cga_cportiii	no
isa1	xtide	xtide	no
isa1	cga_m24	cga_m24	no
isa1	mda	isa_ibm_mda	no
isa1	num9rev	number_9_rev	no
isa1	fdc_ps2	isa8_fdc_ps2	no
isa1	ne1000	ne1000	no
isa1	ega	ega	no
isa1	pgc	isa_ibm_pgc	no
isa1	cga_poisk2	cga_poisk2	no
isa1	stereo_fx	stereo_fx	no
isa1	cga_mc1502	cga_mc1502	no
isa1	cga_ec1841	ec1841_0002	no
isa1	fdc	isa8_fdc_superio	no
isa1	cga	cga	no
isa1	sblaster1_5	isa_sblaster1_5	no
isa1	wdxt_gen	wdxt_gen	no
isa1	opus108pm	opus108pm	no
isa1	side116	side116	no
isa1	fdc_xt	isa8_fdc_xt	no
isa1	fdc_smc	isa8_fdc_smc	no
isa1	mpu401	isa_mpu401	no
isa1	sblaster1_0	isa_sblaster1_0	no
isa1	aga_pc200	isa_aga_pc200	no
isa1	hdc	isa_hdc	yes
isa1	fdc344	fdc344	no
isa1	fdcmag	fdcmag	no
isa1	adlib	isa_adlib	no
isa1	ssi2001	ssi2001	no
isa1	vga	ibm_vga	no
isa1	hercules	isa_hercules	no
isa1	3xtwin	3xtwin	no
isa1	acb2072	acb2072	no
isa1	gblaster	isa_gblaster	no
isa2	babyblue2	isa_bblue2	no
isa2	epc_twib	eistwib	no
isa2	finalchs	isa_finalchs	no
isa2	epc_mda	isa_epc_mda	no
isa2	chessmsr	isa_chessmsr	no
isa2	asc88	asc88	no
isa2	pds	isa_pds	no
isa2	prose4k1	isa_prose4001	no
isa2	dectalk	dectalk_isa	no
isa2	lba_enhancer	lba_enhancer	no
isa2	wd1002a_wx1	wd1002a_wx1	no
isa2	lpt	isa_lpt	no
isa2	3c503	el2_3c503	no
isa2	pcmidi	isa_pcmidi	no
isa2	wd90c90_jk	wd90c90_jk	no
isa2	fdc_at	isa8_fdc_at	no
isa2	aga	isa_aga	no
isa2	com	isa_com	no
isa2	chessmdr	isa_chessmdr	no
isa2	ibm_mfc	ibm_mfc	no
isa2	cga_cportiii	cga_cportiii	no
isa2	xtide	xtide	no
isa2	cga_m24	cga_m24	no
isa2	mda	isa_ibm_mda	no
isa2	num9rev	number_9_rev	no
isa2	fdc_ps2	isa8_fdc_ps2	no
isa2	ne1000	ne1000	no
isa2	ega	ega	no
isa2	pgc	isa_ibm_pgc	no
isa2	cga_poisk2	cga_poisk2	no
isa2	stereo_fx	stereo_fx	no
isa2	cga_mc1502	cga_mc1502	no
isa2	cga_ec1841	ec1841_0002	no
isa2	fdc	isa8_fdc_superio	no
isa2	cga	cga	no
isa2	sblaster1_5	isa_sblaster1_5	no
isa2	wdxt_gen	wdxt_gen	no
isa2	opus108pm	opus108pm	no
isa2	side116	side116	no
isa2	fdc_xt	isa8_fdc_xt	no
isa2	fdc_smc	isa8_fdc_smc	no
isa2	mpu401	isa_mpu401	no
isa2	sblaster1_0	isa_sblaster1_0	no
isa2	aga_pc200	isa_aga_pc200	no
isa2	hdc	isa_hdc	no
isa2	fdc344	fdc344	no
isa2	fdcmag	fdcmag	no
isa2	adlib	isa_adlib	no
isa2	ssi2001	ssi2001	no
isa2	vga	ibm_vga	no
isa2	hercules	isa_hercules	no
isa2	3xtwin	3xtwin	no
isa2	acb2072	acb2072	no
isa2	gblaster	isa_gblaster	no
isa3	babyblue2	isa_bblue2	no
isa3	epc_twib	eistwib	no
isa3	finalchs	isa_finalchs	no
isa3	epc_mda	isa_epc_mda	no
isa3	chessmsr	isa_chessmsr	no
isa3	asc88	asc88	no
isa3	pds	isa_pds	no
isa3	prose4k1	isa_prose4001	no
isa3	dectalk	dectalk_isa	no
isa3	lba_enhancer	lba_enhancer	no
isa3	wd1002a_wx1	wd1002a_wx1	no
isa3	lpt	isa_lpt	no
isa3	3c503	el2_3c503	no
isa3	pcmidi	isa_pcmidi	no
isa3	wd90c90_jk	wd90c90_jk	no
isa3	fdc_at	isa8_fdc_at	no
isa3	aga	isa_aga	no
isa3	com	isa_com	no
isa3	chessmdr	isa_chessmdr	no
isa3	ibm_mfc	ibm_mfc	no
isa3	cga_cportiii	cga_cportiii	no
isa3	xtide	xtide	no
isa3	cga_m24	cga_m24	no
isa3	mda	isa_ibm_mda	no
isa3	num9rev	number_9_rev	no
isa3	fdc_ps2	isa8_fdc_ps2	no
isa3	ne1000	ne1000	no
isa3	ega	ega	no
isa3	pgc	isa_ibm_pgc	no
isa3	cga_poisk2	cga_poisk2	no
isa3	stereo_fx	stereo_fx	no
isa3	cga_mc1502	cga_mc1502	no
isa3	cga_ec1841	ec1841_0002	no
isa3	fdc	isa8_fdc_superio	no
isa3	cga	cga	no
isa3	sblaster1_5	isa_sblaster1_5	no
isa3	wdxt_gen	wdxt_gen	no
isa3	opus108pm	opus108pm	no
isa3	side116	side116	no
isa3	fdc_xt	isa8_fdc_xt	no
isa3	fdc_smc	isa8_fdc_smc	no
isa3	mpu401	isa_mpu401	no
isa3	sblaster1_0	isa_sblaster1_0	no
isa3	aga_pc200	isa_aga_pc200	no
isa3	hdc	isa_hdc	no
isa3	fdc344	fdc344	no
isa3	fdcmag	fdcmag	no
isa3	adlib	isa_adlib	no
isa3	ssi2001	ssi2001	no
isa3	vga	ibm_vga	no
isa3	hercules	isa_hercules	no
isa3	3xtwin	3xtwin	no
isa3	acb2072	acb2072	no
isa3	gblaster	isa_gblaster	no

dipswitch

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	LK	7

value

name	value	default
English	7	yes
German	6	no
French	5	no
Spanish	4	no
Danish	3	no
Swedish	2	no
Italian	1	no
Diagnostic Mode	0	no

Memory Size

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Memory Size	LK	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
512 KB	8	yes
640 KB	0	no

ROM Size

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
ROM Size	LK	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
16 KB	16	yes
32 KB	0	no

Character Set

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Character Set	LK	96

value

name	value	default
Default (Codepage 437)	96	yes
Portuguese (Codepage 865)	64	no
Norwegian (Codepage 860)	32	no
Greek	0	no

Floppy Ready Line

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Floppy Ready Line	LK	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Connected	128	yes
Not connected	0	no

Type of 2nd drive

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type of 2nd drive	isa1:hdc:HDD	3

value

name	value	default
0	3	yes
1	2	no
2	1	no
3	0	no

Type of 1st drive

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type of 1st drive	isa1:hdc:HDD	12

value

name	value	default
0	12	yes
1	8	no
2	4	no
3	0	no

IRQ level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IRQ level	isa1:hdc:HDD	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	64	yes
2	0	no

Install ROM?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Install ROM?	isa1:hdc:ROM	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	1	yes
No	0	no
