Tandy 1000 HX - mame (0284) machine

MAME: 0284 - Released: 2025-12-30T16:33:58 - Machines: 49538 - rom: 367487 - disk: 1392

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
t1000hx	pc/tandy1t.cpp		no	no	no	yes	Tandy 1000 HX	1987	Tandy Radio Shack	ibm5150	ibm5150

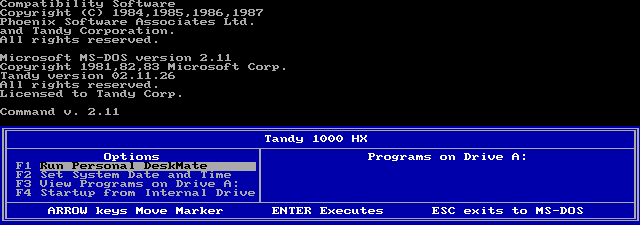

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems
t1000hx	6397	29/12/2025 11:31:46	640	225	96	96	0	Format24bppRgb	305:MAME 0.176 (Jul 27 2016)

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
pcvideo_t1000:screen	raster	0	640	200	59.922748	14318181	912	0	640	262	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
v020000.u12	131072	6f3acd80	976af8c04c3f6fde14d7047f6521d302bdc2d017	bios	0	good	no
8048.u9	1024			kbdc	0	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8088	7159090
cpu	mb:dma8237	AM9517A	4772727
audio	mb:mono	Speaker
audio	mb:speaker	Filtered DAC
audio	sn76496	NCR8496	3579545
audio	isa_fdc:fdc_xt:fdc:0:35dd:flopsndout	Speaker
audio	isa_fdc:fdc_xt:fdc:0:35dd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
disk_list	t1000	original
pc_list	ibm5150	compatible

device_ref

tag	name
:maincpu	i8088
:pcvideo_t1000	tandy_1000x_graphics
:pcvideo_t1000:screen	screen
:pcvideo_t1000:mc6845_t1000	mc6845
:mb	t1000_mb
:mb:pit8253	pit8253
:mb:pit8253:counter0	pit_counter
:mb:pit8253:counter1	pit_counter
:mb:pit8253:counter2	pit_counter
:mb:dma8237	am9517a
:mb:pic8259	pic8259
:mb:isa	isa8
:mb:mono	speaker
:mb:speaker	speaker_sound_device
:sn76496	ncr8496
:isa_fdc	isa8_slot
:isa_fdc:fdc_xt	isa8_fdc_xt
:isa_fdc:fdc_xt:fdc	upd765a
:isa_fdc:fdc_xt:fdc:0	floppy_connector
:isa_fdc:fdc_xt:fdc:0:35dd	floppy_35_dd
:isa_fdc:fdc_xt:fdc:0:35dd:flopsndout	speaker
:isa_fdc:fdc_xt:fdc:0:35dd:floppysound	flopsnd
:isa_fdc:fdc_xt:fdc:1	floppy_connector
:lpt	pc_lpt
:lpt:centronics	centronics
:lpt:centronics:printer	centronics_printer
:lpt:centronics:printer:printer	printer_image
:lpt:cent_data_in	input_buffer
:lpt:cent_ctrl_in	input_buffer
:lpt:cent_status_in	input_buffer
:lpt:cent_data_out	output_latch
:lpt:cent_ctrl_out	output_latch
:pc_joy	pc_joy
:pc_joy:basic_joy	pc_basic_joy
:ram	ram
:disk_list	software_list
:pc_list	software_list
:pc_keyboard	t1000_keyb
:eeprom	93c46_16
:plus	isa8_slot

sound

channels
2

ramoption

name	default
256K
384K
640K	yes

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	isa_fdc:fdc_xt:fdc:0:35dd	floppy_3_5			floppydisk	flop
printout	lpt:centronics:printer:printer				printout	prin

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	isa_fdc:fdc_xt:fdc:0:35dd	floppy_3_5			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, xdf
printout	lpt:centronics:printer:printer				prn

input

players	coins	service	tilt
2		no	no

control

type	player	buttons	reverse	minimum	maximum	sensitivity	keydelta
stick	1	2	no	1	255	100	1
keyboard	1	90	no
stick	2	2	no	1	255	100	1

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:IN0
:pc_joy:basic_joy:btn
:pc_joy:basic_joy:x1	255
:pc_joy:basic_joy:x2	255
:pc_joy:basic_joy:y1	255
:pc_joy:basic_joy:y2	255
:pc_keyboard:pc_keyboard_0
:pc_keyboard:pc_keyboard_1
:pc_keyboard:pc_keyboard_2
:pc_keyboard:pc_keyboard_3
:pc_keyboard:pc_keyboard_4
:pc_keyboard:pc_keyboard_5

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
isa_fdc:fdc_xt:fdc:1	35dd	floppy_35_dd	no
isa_fdc:fdc_xt:fdc:1	525dd	floppy_525_dd	no
lpt:centronics	nlq401	nlq401	no
lpt:centronics	smartboard	centronics_smartboard	no
lpt:centronics	chessmec	centronics_chessmec	no
lpt:centronics	samdac	centronics_samdac	no
lpt:centronics	covox_stereo	covox_stereo	no
lpt:centronics	adaptator	adaptator_multitap	no
lpt:centronics	digiblst	cpcdigiblst	no
lpt:centronics	lx800	lx800	no
lpt:centronics	jx80	epson_jx80	no
lpt:centronics	ap2000	ap2000	no
lpt:centronics	ex800	ex800	no
lpt:centronics	fx80	epson_fx80	no
lpt:centronics	rx80	epson_rx80	no
lpt:centronics	mz1p16	mz1p16	no
lpt:centronics	covox	covox	no
lpt:centronics	pl80	comx_pl80	no
lpt:centronics	lx810l	lx810l	no
lpt:centronics	p72	p72	no
lpt:centronics	printer	centronics_printer	yes
pc_joy	mssw_pad	mssw_pad	no
pc_joy	magnum6_pad	magnum6_pad	no
pc_joy	basic_joy	pc_basic_joy	yes
plus	ubpnic	ubpnic	no
plus	ibm_speech	isa_ibm_speech	no
plus	babyblue2	isa_bblue2	no
plus	epc_twib	eistwib	no
plus	finalchs	isa_finalchs	no
plus	epc_mda	isa_epc_mda	no
plus	chessmsr	isa_chessmsr	no
plus	asc88	asc88	no
plus	pds	isa_pds	no
plus	prose4k1	isa_prose4001	no
plus	dectalk	dectalk_isa	no
plus	lba_enhancer	lba_enhancer	no
plus	wd1002a_wx1	wd1002a_wx1	no
plus	lpt	isa_lpt	no
plus	zxbus_adapter	zxbus_adapter	no
plus	3c503	el2_3c503	no
plus	pcmidi	isa_pcmidi	no
plus	3xtwin	3xtwin	no
plus	acb2072	acb2072	no
plus	gblaster	isa_gblaster	no
plus	ssi2001	ssi2001	no
plus	hercules	isa_hercules	no
plus	vga	ibm_vga	no
plus	com	isa_com	no
plus	chessmdr	isa_chessmdr	no
plus	ibm_mfc	ibm_mfc	no
plus	cga_cportiii	cga_cportiii	no
plus	xtide	xtide	no
plus	cga_m24	cga_m24	no
plus	mda	isa_ibm_mda	no
plus	num9rev	number_9_rev	no
plus	fdc_ps2	isa8_fdc_ps2	no
plus	aga	isa_aga	no
plus	comat	isa_com_at	no
plus	ne1000	ne1000	no
plus	ega	ega	no
plus	wyse700	wyse700	no
plus	pgc	isa_ibm_pgc	no
plus	cga_poisk2	cga_poisk2	no
plus	stereo_fx	stereo_fx	no
plus	cga_mc1502	cga_mc1502	no
plus	cga_ec1841	ec1841_0002	no
plus	fdc	isa8_fdc_superio	no
plus	cga	cga	no
plus	sblaster1_5	isa_sblaster1_5	no
plus	wdxt_gen	wdxt_gen	no
plus	opus108pm	opus108pm	no
plus	side116	side116	no
plus	wd90c90_jk	wd90c90_jk	no
plus	fdc_at	isa8_fdc_at	no
plus	fdc_xt	isa8_fdc_xt	no
plus	fdc_smc	isa8_fdc_smc	no
plus	mpu401	isa_mpu401	no
plus	sblaster1_0	isa_sblaster1_0	no
plus	aga_pc200	isa_aga_pc200	no
plus	hdc	isa_hdc	no
plus	fdc344	fdc344	no
plus	fdcmag	fdcmag	no
plus	adlib	isa_adlib	no

dipswitch

Game port enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game port enable	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	1	no

LPT1: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LPT1: enable	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes

COM2: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM2: enable	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	64	yes

COM1: enable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
COM1: enable	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	128	yes

HDC2 (CA00:0 port 324-327)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HDC2 (CA00:0 port 324-327)	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4	yes

HDC1 (C800:0 port 320-323)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
HDC1 (C800:0 port 320-323)	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	8	yes
