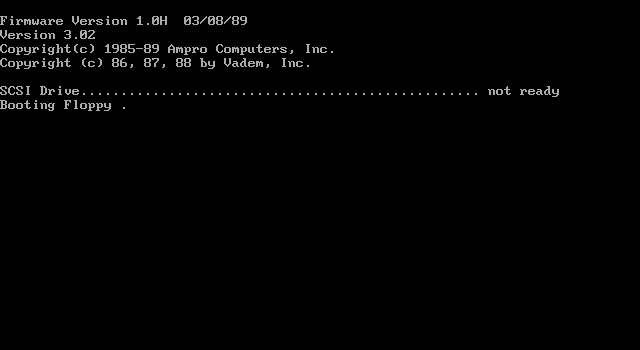

Little Board/PC - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
lbpc	ampro/lbpc.cpp		no	no	no	yes	Little Board/PC	1989	Ampro Computers

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
exp:ega:ega_screen	raster	0	640	200	68.036862	16257000	912	0	640	262	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
lbpc-bio.rom	32768	47bddf8b	8a04fe34502f9f3bfe1e233762bbd5bbdd1c455d	bios	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V40	14318181
cpu	maincpu:dmau	V5X DMAU	4000000
cpu	kbd:pcxt:i8048	Intel 8048	5102535
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	fdc:0:525sd:flopsndout	Speaker
audio	fdc:0:525sd:floppysound	Floppy sound	44100

softwarelist

tag	name	status	filter
disk_list	ibm5150	original

device_ref

name
v40
pit8254
pit_counter
pit_counter
pit_counter
v5x_dmau
v5x_icu
v5x_scu
pc_kbdc
kb_pcxt83
i8048
speaker
speaker_sound_device
ins8250
wd37c65c
floppy_connector
floppy_525_sd
speaker
flopsnd
floppy_connector
software_list
nscsi_bus
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
nscsi_connector
ncr53c80
rs232
isa8
isa8_slot
ega
screen
palette
crtc_ega

sound

channels
2

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:525sd	floppy_5_25			floppydisk	flop

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:525sd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		83		no

port, analog

port_tag	analog_masks
:JUMPERS
:exp:ega:config
:kbd:pcxt:MD00
:kbd:pcxt:MD01
:kbd:pcxt:MD02
:kbd:pcxt:MD03
:kbd:pcxt:MD04
:kbd:pcxt:MD05
:kbd:pcxt:MD06
:kbd:pcxt:MD07
:kbd:pcxt:MD08
:kbd:pcxt:MD09
:kbd:pcxt:MD10
:kbd:pcxt:MD11

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
kbd	iskr1030	kb_iskr1030	no
kbd	ec1841	kb_ec1841	no
kbd	pcxt	kb_pcxt83	yes
kbd	pc	kb_pc83	no
kbd	keytronc_pc3270	keytronic_pc3270	no
fdc:0	35dd	floppy_35_dd	no
fdc:0	525hd	floppy_525_hd	no
fdc:0	35hd	floppy_35_hd	no
fdc:0	525sd	floppy_525_sd	yes
fdc:1	35dd	floppy_35_dd	no
fdc:1	525hd	floppy_525_hd	no
fdc:1	35hd	floppy_35_hd	no
fdc:1	525sd	floppy_525_sd	no
scsi:0	cfp1080s	cfp1080s	no
scsi:0	aplcdsc	scsi_cdrom_apple	no
scsi:0	aplcd150	aplcd150	no
scsi:0	tape	scsi_tape	no
scsi:0	s1410	scsi_s1410	no
scsi:0	harddisk	scsi_harddisk	no
scsi:0	cw7501	cw7501	no
scsi:0	crd254sh	crd254sh	no
scsi:0	cdr4210	cdr4210	no
scsi:0	cdrn820s	cdrn820s	no
scsi:0	cdu75s	cdu75s	no
scsi:0	cdrom	scsi_cdrom	no
scsi:0	cdu415	cdu415	no
scsi:0	cdu561_25	cdu561_25	no
scsi:0	cdd2000	cdd2000	no
scsi:0	smoc501	smoc501	no
scsi:1	cfp1080s	cfp1080s	no
scsi:1	aplcdsc	scsi_cdrom_apple	no
scsi:1	aplcd150	aplcd150	no
scsi:1	tape	scsi_tape	no
scsi:1	s1410	scsi_s1410	no
scsi:1	harddisk	scsi_harddisk	no
scsi:1	cw7501	cw7501	no
scsi:1	crd254sh	crd254sh	no
scsi:1	cdr4210	cdr4210	no
scsi:1	cdrn820s	cdrn820s	no
scsi:1	cdu75s	cdu75s	no
scsi:1	cdrom	scsi_cdrom	no
scsi:1	cdu415	cdu415	no
scsi:1	cdu561_25	cdu561_25	no
scsi:1	cdd2000	cdd2000	no
scsi:1	smoc501	smoc501	no
scsi:2	cfp1080s	cfp1080s	no
scsi:2	aplcdsc	scsi_cdrom_apple	no
scsi:2	aplcd150	aplcd150	no
scsi:2	tape	scsi_tape	no
scsi:2	s1410	scsi_s1410	no
scsi:2	harddisk	scsi_harddisk	no
scsi:2	cw7501	cw7501	no
scsi:2	crd254sh	crd254sh	no
scsi:2	cdr4210	cdr4210	no
scsi:2	cdrn820s	cdrn820s	no
scsi:2	cdu75s	cdu75s	no
scsi:2	cdrom	scsi_cdrom	no
scsi:2	cdu415	cdu415	no
scsi:2	cdu561_25	cdu561_25	no
scsi:2	cdd2000	cdd2000	no
scsi:2	smoc501	smoc501	no
scsi:3	cfp1080s	cfp1080s	no
scsi:3	aplcdsc	scsi_cdrom_apple	no
scsi:3	aplcd150	aplcd150	no
scsi:3	tape	scsi_tape	no
scsi:3	s1410	scsi_s1410	no
scsi:3	harddisk	scsi_harddisk	no
scsi:3	cw7501	cw7501	no
scsi:3	crd254sh	crd254sh	no
scsi:3	cdr4210	cdr4210	no
scsi:3	cdrn820s	cdrn820s	no
scsi:3	cdu75s	cdu75s	no
scsi:3	cdrom	scsi_cdrom	no
scsi:3	cdu415	cdu415	no
scsi:3	cdu561_25	cdu561_25	no
scsi:3	cdd2000	cdd2000	no
scsi:3	smoc501	smoc501	no
scsi:4	cfp1080s	cfp1080s	no
scsi:4	aplcdsc	scsi_cdrom_apple	no
scsi:4	aplcd150	aplcd150	no
scsi:4	tape	scsi_tape	no
scsi:4	s1410	scsi_s1410	no
scsi:4	harddisk	scsi_harddisk	no
scsi:4	cw7501	cw7501	no
scsi:4	crd254sh	crd254sh	no
scsi:4	cdr4210	cdr4210	no
scsi:4	cdrn820s	cdrn820s	no
scsi:4	cdu75s	cdu75s	no
scsi:4	cdrom	scsi_cdrom	no
scsi:4	cdu415	cdu415	no
scsi:4	cdu561_25	cdu561_25	no
scsi:4	cdd2000	cdd2000	no
scsi:4	smoc501	smoc501	no
scsi:5	cfp1080s	cfp1080s	no
scsi:5	aplcdsc	scsi_cdrom_apple	no
scsi:5	aplcd150	aplcd150	no
scsi:5	tape	scsi_tape	no
scsi:5	s1410	scsi_s1410	no
scsi:5	harddisk	scsi_harddisk	no
scsi:5	cw7501	cw7501	no
scsi:5	crd254sh	crd254sh	no
scsi:5	cdr4210	cdr4210	no
scsi:5	cdrn820s	cdrn820s	no
scsi:5	cdu75s	cdu75s	no
scsi:5	cdrom	scsi_cdrom	no
scsi:5	cdu415	cdu415	no
scsi:5	cdu561_25	cdu561_25	no
scsi:5	cdd2000	cdd2000	no
scsi:5	smoc501	smoc501	no
scsi:6	cfp1080s	cfp1080s	no
scsi:6	aplcdsc	scsi_cdrom_apple	no
scsi:6	aplcd150	aplcd150	no
scsi:6	tape	scsi_tape	no
scsi:6	s1410	scsi_s1410	no
scsi:6	harddisk	scsi_harddisk	no
scsi:6	cw7501	cw7501	no
scsi:6	crd254sh	crd254sh	no
scsi:6	cdr4210	cdr4210	no
scsi:6	cdrn820s	cdrn820s	no
scsi:6	cdu75s	cdu75s	no
scsi:6	cdrom	scsi_cdrom	no
scsi:6	cdu415	cdu415	no
scsi:6	cdu561_25	cdu561_25	no
scsi:6	cdd2000	cdd2000	no
scsi:6	smoc501	smoc501	no
serial	terminal	serial_terminal	no
serial	sunkbd	sunkbd_adaptor	no
serial	dec_loopback	dec_rs232_loopback	no
serial	ie15	ie15_terminal	no
serial	null_modem	null_modem	no
serial	keyboard	serial_keyboard	no
serial	patch	rs232_patch_box	no
serial	swtpc8212	swtpc8212_terminal	no
serial	printer	serial_printer	no
serial	scorpion	scorpion_ic	no
serial	loopback	rs232_loopback	no
serial	mockingboard	mockingboardd	no
serial	msystems_mouse	rs232_mouse_hle_msystems	no
serial	nss_tvi	nss_tvinterface	no
serial	rs232_sync_io	rs232_sync_io	no
serial	pty	pseudo_terminal	no
serial	rs_printer	rs_serial_printer	no
exp	babyblue2	isa_bblue2	no
exp	epc_twib	eistwib	no
exp	finalchs	isa_finalchs	no
exp	epc_mda	isa_epc_mda	no
exp	chessmsr	isa_chessmsr	no
exp	asc88	asc88	no
exp	pds	isa_pds	no
exp	prose4k1	isa_prose4001	no
exp	dectalk	dectalk_isa	no
exp	lba_enhancer	lba_enhancer	no
exp	wd1002a_wx1	wd1002a_wx1	no
exp	lpt	isa_lpt	no
exp	3c503	el2_3c503	no
exp	pcmidi	isa_pcmidi	no
exp	wd90c90_jk	wd90c90_jk	no
exp	fdc_at	isa8_fdc_at	no
exp	aga	isa_aga	no
exp	com	isa_com	no
exp	chessmdr	isa_chessmdr	no
exp	ibm_mfc	ibm_mfc	no
exp	cga_cportiii	cga_cportiii	no
exp	xtide	xtide	no
exp	cga_m24	cga_m24	no
exp	mda	isa_ibm_mda	no
exp	num9rev	number_9_rev	no
exp	fdc_ps2	isa8_fdc_ps2	no
exp	ne1000	ne1000	no
exp	ega	ega	yes
exp	pgc	isa_ibm_pgc	no
exp	cga_poisk2	cga_poisk2	no
exp	stereo_fx	stereo_fx	no
exp	cga_mc1502	cga_mc1502	no
exp	cga_ec1841	ec1841_0002	no
exp	fdc	isa8_fdc_superio	no
exp	cga	cga	no
exp	sblaster1_5	isa_sblaster1_5	no
exp	wdxt_gen	wdxt_gen	no
exp	opus108pm	opus108pm	no
exp	side116	side116	no
exp	fdc_xt	isa8_fdc_xt	no
exp	fdc_smc	isa8_fdc_smc	no
exp	mpu401	isa_mpu401	no
exp	sblaster1_0	isa_sblaster1_0	no
exp	aga_pc200	isa_aga_pc200	no
exp	hdc	isa_hdc	no
exp	fdc344	fdc344	no
exp	fdcmag	fdcmag	no
exp	adlib	isa_adlib	no
exp	ssi2001	ssi2001	no
exp	vga	ibm_vga	no
exp	hercules	isa_hercules	no
exp	3xtwin	3xtwin	no
exp	acb2072	acb2072	no
exp	gblaster	isa_gblaster	no

dipswitch

SCSI Initiator ID

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
SCSI Initiator ID	JUMPERS	7

location

name	number	inverted
W25-W23	3	no
W25-W23	2	no
W25-W23	1	no

value

name	value	default
0	0	no
1	1	no
2	2	no
3	3	no
4	4	no
5	5	no
6	6	no
7	7	yes

Drive B Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive B Type	JUMPERS	80

location

name	number	inverted
W27+W29	1	no
W27+W29	2	no

value

name	value	default
360K, 5-1/4"	80	yes
1.2M, 5-1/4"	16	no
720K, 3-1/2"	64	no
1.44M, 3-1/2"	0	no

Drive A Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Drive A Type	JUMPERS	40

location

name	number	inverted
W26+W28	1	no
W26+W28	2	no

value

name	value	default
360K, 5-1/4"	40	yes
1.2M, 5-1/4"	8	no
720K, 3-1/2"	32	no
1.44M, 3-1/2"	0	no

Display Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Type	exp:ega:config	15

value

name	value	default
0000 - MDA PRIMARY, EGA COLOR, 40x25	0	no
0001 - MDA PRIMARY, EGA COLOR, 80x25	8	no
0010 - MDA PRIMARY, EGA HI RES EMULATE (SAME AS 0001)	4	no
0011 - MDA PRIMARY, EGA HI RES ENHANCED	12	no
0100 - CGA 40 PRIMARY, EGA MONOCHROME	2	no
0101 - CGA 80 PRIMARY, EGA MONOCHROME	10	no
0110 - MDA SECONDARY, EGA COLOR, 40x25	6	no
0111 - MDA SECONDARY, EGA COLOR, 80x25	14	no
1000 - MDA SECONDARY, EGA HI RES EMULATE (SAME AS 0111)	1	no
1001 - MDA SECONDARY, EGA HI RES ENHANCED	9	yes
1010 - COLOR 40 SECONDARY, EGA	5	no
1011 - COLOR 80 SECONDARY, EGA	13	no
1100 - RESERVED	3	no
1101 - RESERVED	11	no
1110 - RESERVED	7	no
1111 - RESERVED	15	no
