Classic/PCI LP "Entrada" (Intel I420EX Aries chipset)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
entrada	intel/i420ex.cpp		no	no	no	yes	Classic/PCI LP "Entrada" (Intel I420EX Aries chipset)	1994	Intel

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1

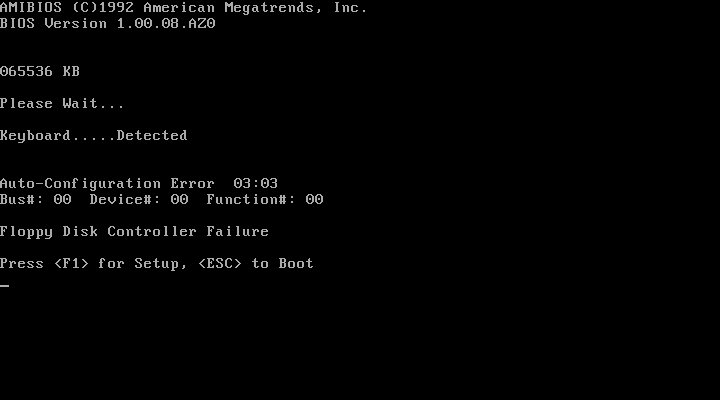

entrada	4527	31/03/2026 11:10:16	720	400	96	96	0	Format24bppRgb	305:MAME 0.287 (mame0287)	30741d1b662810406f64caeff5eba2b3983f8231

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
pci:06.0:screen	raster	0	640	480	53.178707	25174800	900	0	640	526	0	480	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
1008az0_.bi1	49280	c8d22934	bd8e9387130d493246dac4bb89bd9aa502721033	pci:05.0	0	good	no	az08
1008az0_.bio	65664	23fdaa9c	0d2c9eeb52d300b5e39cb47d0b498c902b896ed7	pci:05.0	10000	good	no	az08
1007az0_.bi1	49280	d692eac6	3d65ac556a3b86461abcc29579d038f2b1e864e0	pci:05.0	0	good	no	az07
1007az0_.bio	65664	41ff4579	f6c40d8fa6ddf57a3efe9c77a75fa4076bf0e0e8	pci:05.0	10000	good	no	az07
1005az0_.bi1	49280	91287697	682712ff12a8ddb1172b879cfdfe79ec466430ca	pci:05.0	0	good	no	az05
1005az0_.bio	65664	3212d818	7b2aacf76263f4aa2e14d20a44c10cf5dcb198cd	pci:05.0	10000	good	no	az05
03_az0.bi1	49280	3976fb38	17159457ff8b7fa7ab0a97ccf71e5e5c8df0fe3e	pci:05.0	0	good	no	az03
03_az0.bio	65664	e0d3ac40	a315be210a6233bf5cd863fb4a6313cdcea26442	pci:05.0	10000	good	no	az03

chip

type	tag	name	clock
cpu	maincpu	Intel I486DX4	33000000
cpu	ib:dma1	AM9517A	4772727
cpu	ib:dma2	AM9517A	4772727
cpu	keybc:mcu	Intel 8042AH	12000000
cpu	kbd:ms_naturl:ms_natrl_cpu	Intel 8051	6000000
audio	pci:05.0:ide2:0:cdrom:cdda	CD/DA	44100
audio	mono	Speaker
audio	speaker	Filtered DAC
audio	board1:superio:fdc:0:35hd:flopsndout	Speaker
audio	board1:superio:fdc:0:35hd:floppysound	Floppy sound	44100
audio	board1:superio:fdc:1:35hd:flopsndout	Speaker
audio	board1:superio:fdc:1:35hd:floppysound	Floppy sound	44100

device_ref

tag	name
:maincpu	i486dx4
:ib	i82426ex_ib
:ib:dma1	am9517a
:ib:dma2	am9517a
:ib:intc1	pic8259
:ib:intc2	pic8259
:ib:pit	pit8254
:ib:pit:counter0	pit_counter
:ib:pit:counter1	pit_counter
:ib:pit:counter2	pit_counter
:ib:isabus	isa16
:pci	pci_root
:pci:05.0	i82425ex_psc
:pci:05.0:ide1	idectrl32
:pci:05.0:ide1:0	ata_slot
:pci:05.0:ide1:0:hdd	idehd
:pci:05.0:ide1:0:hdd:image	harddisk_image
:pci:05.0:ide1:1	ata_slot
:pci:05.0:ide2	idectrl32
:pci:05.0:ide2:0	ata_slot
:pci:05.0:ide2:0:cdrom	cdrom
:pci:05.0:ide2:0:cdrom:image	cdrom_image
:pci:05.0:ide2:0:cdrom:cdda	cdda
:pci:05.0:ide2:1	ata_slot
:pci:06.0	clgd5434_pci
:pci:06.0:screen	screen
:pci:06.0:vga	gd5430
:pci:1	pci_slot
:pci:2	pci_slot
:rtc	ds12885
:keybc	ps2_keybc
:keybc:mcu	i8042ah
:kbd	pc_kbdc
:kbd:ms_naturl	kb_ms_natural
:kbd:ms_naturl:ms_natrl_cpu	i8051
:aux	pc_kbdc
:mono	speaker
:speaker	speaker_sound_device
:board1	isa16_slot
:board1:superio	i82091aa
:board1:superio:fdc	n82077aa
:board1:superio:fdc:0	floppy_connector
:board1:superio:fdc:0:35hd	floppy_35_hd
:board1:superio:fdc:0:35hd:flopsndout	speaker
:board1:superio:fdc:0:35hd:floppysound	flopsnd
:board1:superio:fdc:1	floppy_connector
:board1:superio:fdc:1:35hd	floppy_35_hd
:board1:superio:fdc:1:35hd:flopsndout	speaker
:board1:superio:fdc:1:35hd:floppysound	flopsnd
:board1:superio:uart0	ns16550
:board1:superio:uart1	ns16550
:board1:superio:lpt	pc_lpt
:board1:superio:lpt:centronics	centronics
:board1:superio:lpt:centronics:printer	centronics_printer
:board1:superio:lpt:centronics:printer:printer	printer_image
:board1:superio:lpt:cent_data_in	input_buffer
:board1:superio:lpt:cent_ctrl_in	input_buffer
:board1:superio:lpt:cent_status_in	input_buffer
:board1:superio:lpt:cent_data_out	output_latch
:board1:superio:lpt:cent_ctrl_out	output_latch
:isa1	isa16_slot
:serport0	rs232
:serport0:logitech_mouse	rs232_mouse_hle_logitech
:serport1	rs232

biosset

name	description	default
az08	1.00.08.AZ0	no
az07	1.00.07.AZ0	no
az05	1.00.05.AZ0	no
az03	1.00.02.AZ0	no

sound

channels
3

feature

type	status	overall
graphics		imperfect

device, instance

type	tag	interface	name	briefname
harddisk	pci:05.0:ide1:0:hdd:image	ide_hdd,hdd	harddisk	hard
cdrom	pci:05.0:ide2:0:cdrom:image	cdrom	cdrom	cdrm
floppydisk	board1:superio:fdc:0:35hd	floppy_3_5	floppydisk1	flop1
floppydisk	board1:superio:fdc:1:35hd	floppy_3_5	floppydisk2	flop2
printout	board1:superio:lpt:centronics:printer:printer		printout	prin

device, extension

type	tag	interface	extension_names
harddisk	pci:05.0:ide1:0:hdd:image	ide_hdd,hdd	chd, hd, hdv, 2mg, hdi
cdrom	pci:05.0:ide2:0:cdrom:image	cdrom	chd, cue, toc, nrg, gdi, iso, cdr
floppydisk	board1:superio:fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf
floppydisk	board1:superio:fdc:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf
printout	board1:superio:lpt:centronics:printer:printer		prn

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
mouse		3		no	0	61440	100
keyboard		108		no

port, analog
