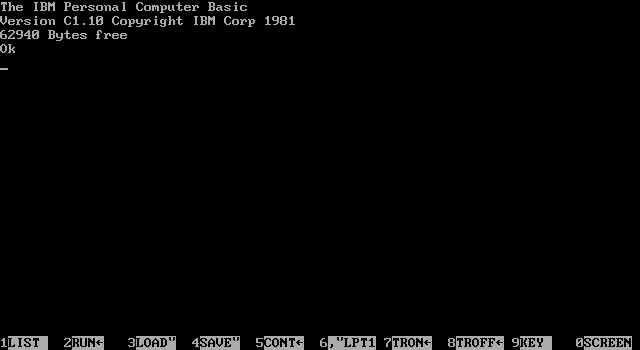

PC/AT 5170 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
ibm5170	pc/at.cpp		no	no	no	yes	PC/AT 5170	1984	International Business Machines

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
isa1:ega:ega_screen	raster	0	640	200	68.036862	16257000	912	0	640	262	0	200	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
6181028.u27	32768	f6573f2a	3e52cfa6a6a62b4e8576f4fe076c858c220e6c1a	bios	10000	good	no	rev1
6181029.u47	32768	7075fbb2	a7b885cfd38710c9bc509da1e3ba9b543a2760be	bios	10001	good	no	rev1
6480090.u27	32768	99703aa9	18022e93a0412c8477e58f8c61a87718a0b9ab0e	bios	10000	good	no	rev2
6480091.u47	32768	013ef44b	bfa15d2180a1902cb6d38c6eed3740f5617afd16	bios	10001	good	no	rev2
5170_even_u27_ 27256.bin	32768	6790392d	c4a5310341f346dd072d096152060ef5e4430a7f	bios	10000	good	no	landmark
5170_odd_u47_ 27256.bin	32768	4c0f3db4	97a0cf589b93551ed1d03bd622cbc8fd5634512f	bios	10001	good	no	landmark
1501824_717750.mmipal14l4.u87.jed	743	3c819a27	d2f4889e628dbbef50b7f48cb1d1a313232bacc8	pals	0	good	no
1503135_705075.mmipal14l4.u130.jed	743	aac77198	b318da3a1fbe5402836c1b548e231e0794d0c032	pals	2e7	good	no
1503085.mmipal.u14.jed	2048			pals	1000	nodump	no
1501814.82s123an.u115	32	849c9217	2955ae1705c3b59170f1373f99b3ea5c174c4544	proms	0	good	no
55x8041.82s147an.u72	512	f2cc4fe6	e285468516bd05083155a8a272583deef655315a	proms	20	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 80286	6000000
cpu	mb:dma8237_1	AM9517A	4772727
cpu	mb:dma8237_2	AM9517A	4772727
cpu	mb:keybc:mcu	Intel 8042AH	12000000
cpu	kbd:pcat:m5	Intel 8048	5364000
audio	mb:mono	Speaker
audio	mb:speaker	Filtered DAC
audio	isa2:fdc:fdc:0:35hd:flopsndout	Speaker
audio	isa2:fdc:fdc:0:35hd:floppysound	Floppy sound	44100
audio	isa2:fdc:fdc:1:35hd:flopsndout	Speaker
audio	isa2:fdc:fdc:1:35hd:floppysound	Floppy sound	44100
audio	isa4:ide:lheadphone	Speaker
audio	isa4:ide:rheadphone	Speaker

softwarelist

tag	name	status
pc_disk_list	ibm5150	original
at_disk_list	ibm5170	original
at_cdrom_list	ibm5170_cdrom	original
at_hdd_list	ibm5170_hdd	original
midi_disk_list	midi_flop	compatible

device_ref

name
i80286
at_mb
pit8254
pit_counter
pit_counter
pit_counter
am9517a
am9517a
pic8259
pic8259
isa16
mc146818
speaker
speaker_sound_device
at_keybc
i8042ah
software_list
software_list
software_list
software_list
software_list
isa16_slot
ega
screen
palette
crtc_ega
isa16_slot
isa8_fdc_at
upd765a
floppy_connector
floppy_35_hd
speaker
flopsnd
floppy_connector
floppy_35_hd
speaker
flopsnd
isa16_slot
isa_com_at
ns16450
ns16450
rs232
rs232_mouse_hle_logitech
rs232
isa16_slot
isa_ide
idectrl
ata_slot
idehd
harddisk_image
ata_slot
speaker
speaker
pc_kbdc
kb_pcat84
i8048
ram

biosset

name	description	default
rev1	IBM PC/AT 5170 01/10/84	no
rev2	IBM PC/AT 5170 06/10/85	no
landmark	Landmark/Supersoft diagnostic ROMs	no

sound

channels
5

ramoption

name	default
640K
1024K
2M
4M
8M
15M
1664K	yes

device, instance

type	tag	interface	name	briefname
floppydisk	isa2:fdc:fdc:0:35hd	floppy_3_5	floppydisk1	flop1
floppydisk	isa2:fdc:fdc:1:35hd	floppy_3_5	floppydisk2	flop2
harddisk	isa4:ide:ide:0:hdd:image	ide_hdd,hdd	harddisk	hard

device, extension

type	tag	interface	extension_names
floppydisk	isa2:fdc:fdc:0:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, xdf
floppydisk	isa2:fdc:fdc:1:35hd	floppy_3_5	mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, ima, img, ufi, 360, ipf, xdf
harddisk	isa4:ide:ide:0:hdd:image	ide_hdd,hdd	chd, hd, hdv, 2mg, hdi

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mouse		3		no	0	61440	100
keyboard		84		no

port, analog

port_tag	analog_masks
:isa1:ega:config
:isa3:comat:serport0:logitech_mouse:BTN
:isa3:comat:serport0:logitech_mouse:X	4095
:isa3:comat:serport0:logitech_mouse:Y	4095
:isa4:ide:DSW
:kbd:pcat:DR00
:kbd:pcat:DR01
:kbd:pcat:DR02
:kbd:pcat:DR03
:kbd:pcat:DR04
:kbd:pcat:DR05
:kbd:pcat:DR06
:kbd:pcat:DR07
:kbd:pcat:DR08
:kbd:pcat:DR09
:kbd:pcat:DR10
:kbd:pcat:DR11
:kbd:pcat:DR12
:kbd:pcat:DR13
:kbd:pcat:DR14
:kbd:pcat:DR15
:mb:keybc:P1

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
isa1	hpblp	hpblp	no
isa1	lrk331	lrk331	no
isa1	omti8621	omti8621isa	no
isa1	dc820b	dc820b	no
isa1	dc320e	dc320e	no
isa1	dc320b	dc320b	no
isa1	ultra12f32	ultra12f32	no
isa1	ex1280	ex1280	no
isa1	bt542b	bt542b	no
isa1	ev346	ev346	no
isa1	wd1007a	wd1007a	no
isa1	np600a3	np600a3	no
isa1	bt542bh	bt542bh	no
isa1	3c505	3c505	no
isa1	wd90c33_zz	wd90c33_zz	no
isa1	wd90c31a_lr	wd90c31a_lr	no
isa1	wd90c30_lr	wd90c30_lr	no
isa1	dc820	dc820	no
isa1	ultra14f	ultra14f	no
isa1	ultra12f	ultra12f	no
isa1	wd90c11_lr	wd90c11_lr	no
isa1	svga_et4kw32i	et4kw32i	no
isa1	sb16_lle	sb16	no
isa1	svga_et4k	et4000	no
isa1	mcd	mcd_isa	no
isa1	pvga1a_jk	pvga1a_jk	no
isa1	pvga1a	pvga1a	no
isa1	pgc	isa_ibm_pgc	no
isa1	pcmidi	isa_pcmidi	no
isa1	3c503	el2_3c503	no
isa1	svga_s3	s3_764	no
isa1	vga	ibm_vga	no
isa1	ibm_mfc	ibm_mfc	no
isa1	cga_cportiii	cga_cportiii	no
isa1	chessmdr	isa_chessmdr	no
isa1	gblaster	isa_gblaster	no
isa1	wd90c00_jk	wd90c00_jk	no
isa1	acb2072	acb2072	no
isa1	3xtwin	3xtwin	no
isa1	sblaster1_0	isa_sblaster1_0	no
isa1	mpu401	isa_mpu401	no
isa1	sad8852	sad8852	no
isa1	fdc344	fdc344	no
isa1	adlib	isa_adlib	no
isa1	side116	side116	no
isa1	cga	cga	no
isa1	comat	isa_com_at	no
isa1	num9rev	number_9_rev	no
isa1	wd90c90_jk	wd90c90_jk	no
isa1	fdc	isa8_fdc_at	no
isa1	stereo_fx	stereo_fx	no
isa1	bt545s	bt545s	no
isa1	mda	isa_ibm_mda	no
isa1	lpt	isa_lpt	no
isa1	ega	ega	yes
isa1	aha1542b	aha1542b	no
isa1	wd90c31a_zs	wd90c31a_zs	no
isa1	fdcmag	fdcmag	no
isa1	sblaster1_5	isa_sblaster1_5	no
isa1	wd90c31_lr	wd90c31_lr	no
isa1	hercules	isa_hercules	no
isa1	fdcsmc	isa8_fdc_smc	no
isa1	jc1310	jc1310	no
isa1	dectalk	dectalk_isa	no
isa1	aha1542cp	aha1542cp	no
isa1	prose4k1	isa_prose4001	no
isa1	pds	isa_pds	no
isa1	wyse700	wyse700	no
isa1	lba_enhancer	lba_enhancer	no
isa1	chessmsr	isa_chessmsr	no
isa1	epc_mda	isa_epc_mda	no
isa1	ultra24f	ultra24f	no
isa1	finalchs	isa_finalchs	no
isa1	epc_twib	eistwib	no
isa1	com	isa_com	no
isa1	babyblue2	isa_bblue2	no
isa1	gus	isa_gus	no
isa1	svga_et4k_kasan16	et4000_kasan16	no
isa1	ne1000	ne1000	no
isa1	opus108pm	opus108pm	no
isa1	ibm_speech	isa_ibm_speech	no
isa1	ide	isa_ide	no
isa1	ssi2001	ssi2001	no
isa1	ne2000	ne2000	no
isa1	mach64	mach64isa	no
isa1	aha1742a	aha1742a	no
isa1	tvga9000	tvga9000	no
isa1	hdc	isa_hdc	no
isa1	aha1542a	aha1542a	no
isa1	aha1542c	aha1542c	no
isa1	aha1542cf	aha1542cf	no
isa1	dcb	novell_dcb	no
isa1	sblaster_16	isa_sblaster_16	no
isa1	svga_dm	dm_clgd5430	no
isa1	gfxultrap	gfxultrap	no
isa1	aha1740	aha1740	no
isa1	clgd542x	clgd542x	no
isa1	gfxultra	gfxultra	no
isa2	hpblp	hpblp	no
isa2	lrk331	lrk331	no
isa2	omti8621	omti8621isa	no
isa2	dc820b	dc820b	no
isa2	dc320e	dc320e	no
isa2	dc320b	dc320b	no
isa2	ultra12f32	ultra12f32	no
isa2	ex1280	ex1280	no
isa2	bt542b	bt542b	no
isa2	ev346	ev346	no
isa2	wd1007a	wd1007a	no
isa2	np600a3	np600a3	no
isa2	bt542bh	bt542bh	no
isa2	3c505	3c505	no
isa2	wd90c33_zz	wd90c33_zz	no
isa2	wd90c31a_lr	wd90c31a_lr	no
isa2	wd90c30_lr	wd90c30_lr	no
isa2	dc820	dc820	no
isa2	ultra14f	ultra14f	no
isa2	ultra12f	ultra12f	no
isa2	wd90c11_lr	wd90c11_lr	no
isa2	svga_et4kw32i	et4kw32i	no
isa2	sb16_lle	sb16	no
isa2	svga_et4k	et4000	no
isa2	mcd	mcd_isa	no
isa2	pvga1a_jk	pvga1a_jk	no
isa2	pvga1a	pvga1a	no
isa2	pgc	isa_ibm_pgc	no
isa2	pcmidi	isa_pcmidi	no
isa2	3c503	el2_3c503	no
isa2	svga_s3	s3_764	no
isa2	vga	ibm_vga	no
isa2	ibm_mfc	ibm_mfc	no
isa2	cga_cportiii	cga_cportiii	no
isa2	chessmdr	isa_chessmdr	no
isa2	gblaster	isa_gblaster	no
isa2	wd90c00_jk	wd90c00_jk	no
isa2	acb2072	acb2072	no
isa2	3xtwin	3xtwin	no
isa2	sblaster1_0	isa_sblaster1_0	no
isa2	mpu401	isa_mpu401	no
isa2	sad8852	sad8852	no
isa2	fdc344	fdc344	no
isa2	adlib	isa_adlib	no
isa2	side116	side116	no
isa2	cga	cga	no
isa2	comat	isa_com_at	no
isa2	num9rev	number_9_rev	no
isa2	wd90c90_jk	wd90c90_jk	no
isa2	fdc	isa8_fdc_at	yes
isa2	stereo_fx	stereo_fx	no
isa2	bt545s	bt545s	no
isa2	mda	isa_ibm_mda	no
isa2	lpt	isa_lpt	no
isa2	ega	ega	no
isa2	aha1542b	aha1542b	no
isa2	wd90c31a_zs	wd90c31a_zs	no
isa2	fdcmag	fdcmag	no
isa2	sblaster1_5	isa_sblaster1_5	no
isa2	wd90c31_lr	wd90c31_lr	no
isa2	hercules	isa_hercules	no
isa2	fdcsmc	isa8_fdc_smc	no
isa2	jc1310	jc1310	no
isa2	dectalk	dectalk_isa	no
isa2	aha1542cp	aha1542cp	no
isa2	prose4k1	isa_prose4001	no
isa2	pds	isa_pds	no
isa2	wyse700	wyse700	no
isa2	lba_enhancer	lba_enhancer	no
isa2	chessmsr	isa_chessmsr	no
isa2	epc_mda	isa_epc_mda	no
isa2	ultra24f	ultra24f	no
isa2	finalchs	isa_finalchs	no
isa2	epc_twib	eistwib	no
isa2	com	isa_com	no
isa2	babyblue2	isa_bblue2	no
isa2	gus	isa_gus	no
isa2	svga_et4k_kasan16	et4000_kasan16	no
isa2	ne1000	ne1000	no
isa2	opus108pm	opus108pm	no
isa2	ibm_speech	isa_ibm_speech	no
isa2	ide	isa_ide	no
isa2	ssi2001	ssi2001	no
isa2	ne2000	ne2000	no
isa2	mach64	mach64isa	no
isa2	aha1742a	aha1742a	no
isa2	tvga9000	tvga9000	no
isa2	hdc	isa_hdc	no
isa2	aha1542a	aha1542a	no
isa2	aha1542c	aha1542c	no
isa2	aha1542cf	aha1542cf	no
isa2	dcb	novell_dcb	no
isa2	sblaster_16	isa_sblaster_16	no
isa2	svga_dm	dm_clgd5430	no
isa2	gfxultrap	gfxultrap	no
isa2	aha1740	aha1740	no
isa2	clgd542x	clgd542x	no
isa2	gfxultra	gfxultra	no
isa2:fdc:fdc:0	35dd	floppy_35_dd	no
isa2:fdc:fdc:0	525dd	floppy_525_dd	no
isa2:fdc:fdc:0	35hd	floppy_35_hd	yes
isa2:fdc:fdc:0	525hd	floppy_525_hd	no
isa2:fdc:fdc:1	35dd	floppy_35_dd	no
isa2:fdc:fdc:1	525dd	floppy_525_dd	no
isa2:fdc:fdc:1	35hd	floppy_35_hd	yes
isa2:fdc:fdc:1	525hd	floppy_525_hd	no
isa3	hpblp	hpblp	no
isa3	lrk331	lrk331	no
isa3	omti8621	omti8621isa	no
isa3	dc820b	dc820b	no
isa3	dc320e	dc320e	no
isa3	dc320b	dc320b	no
isa3	ultra12f32	ultra12f32	no
isa3	ex1280	ex1280	no
isa3	bt542b	bt542b	no
isa3	ev346	ev346	no
isa3	wd1007a	wd1007a	no
isa3	np600a3	np600a3	no
isa3	bt542bh	bt542bh	no
isa3	3c505	3c505	no
isa3	wd90c33_zz	wd90c33_zz	no
isa3	wd90c31a_lr	wd90c31a_lr	no
isa3	wd90c30_lr	wd90c30_lr	no
isa3	dc820	dc820	no
isa3	ultra14f	ultra14f	no
isa3	ultra12f	ultra12f	no
isa3	wd90c11_lr	wd90c11_lr	no
isa3	svga_et4kw32i	et4kw32i	no
isa3	sb16_lle	sb16	no
isa3	svga_et4k	et4000	no
isa3	mcd	mcd_isa	no
isa3	pvga1a_jk	pvga1a_jk	no
isa3	pvga1a	pvga1a	no
isa3	pgc	isa_ibm_pgc	no
isa3	pcmidi	isa_pcmidi	no
isa3	3c503	el2_3c503	no
isa3	svga_s3	s3_764	no
isa3	vga	ibm_vga	no
isa3	ibm_mfc	ibm_mfc	no
isa3	cga_cportiii	cga_cportiii	no
isa3	chessmdr	isa_chessmdr	no
isa3	gblaster	isa_gblaster	no
isa3	wd90c00_jk	wd90c00_jk	no
isa3	acb2072	acb2072	no
isa3	3xtwin	3xtwin	no
isa3	sblaster1_0	isa_sblaster1_0	no
isa3	mpu401	isa_mpu401	no
isa3	sad8852	sad8852	no
isa3	fdc344	fdc344	no
isa3	adlib	isa_adlib	no
isa3	side116	side116	no
isa3	cga	cga	no
isa3	comat	isa_com_at	yes
isa3	num9rev	number_9_rev	no
isa3	wd90c90_jk	wd90c90_jk	no
isa3	fdc	isa8_fdc_at	no
isa3	stereo_fx	stereo_fx	no
isa3	bt545s	bt545s	no
isa3	mda	isa_ibm_mda	no
isa3	lpt	isa_lpt	no
isa3	ega	ega	no
isa3	aha1542b	aha1542b	no
isa3	wd90c31a_zs	wd90c31a_zs	no
isa3	fdcmag	fdcmag	no
isa3	sblaster1_5	isa_sblaster1_5	no
isa3	wd90c31_lr	wd90c31_lr	no
isa3	hercules	isa_hercules	no
isa3	fdcsmc	isa8_fdc_smc	no
isa3	jc1310	jc1310	no
isa3	dectalk	dectalk_isa	no
isa3	aha1542cp	aha1542cp	no
isa3	prose4k1	isa_prose4001	no
isa3	pds	isa_pds	no
isa3	wyse700	wyse700	no
isa3	lba_enhancer	lba_enhancer	no
isa3	chessmsr	isa_chessmsr	no
isa3	epc_mda	isa_epc_mda	no
isa3	ultra24f	ultra24f	no
isa3	finalchs	isa_finalchs	no
isa3	epc_twib	eistwib	no
isa3	com	isa_com	no
isa3	babyblue2	isa_bblue2	no
isa3	gus	isa_gus	no
isa3	svga_et4k_kasan16	et4000_kasan16	no
isa3	ne1000	ne1000	no
isa3	opus108pm	opus108pm	no
isa3	ibm_speech	isa_ibm_speech	no
isa3	ide	isa_ide	no
isa3	ssi2001	ssi2001	no
isa3	ne2000	ne2000	no
isa3	mach64	mach64isa	no
isa3	aha1742a	aha1742a	no
isa3	tvga9000	tvga9000	no
isa3	hdc	isa_hdc	no
isa3	aha1542a	aha1542a	no
isa3	aha1542c	aha1542c	no
isa3	aha1542cf	aha1542cf	no
isa3	dcb	novell_dcb	no
isa3	sblaster_16	isa_sblaster_16	no
isa3	svga_dm	dm_clgd5430	no
isa3	gfxultrap	gfxultrap	no
isa3	aha1740	aha1740	no
isa3	clgd542x	clgd542x	no
isa3	gfxultra	gfxultra	no
isa3:comat:serport0	null_modem	null_modem	no
isa3:comat:serport0	terminal	serial_terminal	no
isa3:comat:serport0	msystems_mouse	rs232_mouse_hle_msystems	no
isa3:comat:serport0	sun_kbd	sunkbd_adaptor	no
isa3:comat:serport0	wheel_mouse	rs232_mouse_hle_wheel	no
isa3:comat:serport0	rotatable_mouse	rs232_mouse_hle_rotatable	no
isa3:comat:serport0	logitech_mouse	rs232_mouse_hle_logitech	yes
isa3:comat:serport0	microsoft_mouse	rs232_mouse_hle_msft	no
isa3:comat:serport1	null_modem	null_modem	no
isa3:comat:serport1	terminal	serial_terminal	no
isa3:comat:serport1	msystems_mouse	rs232_mouse_hle_msystems	no
isa3:comat:serport1	sun_kbd	sunkbd_adaptor	no
isa3:comat:serport1	wheel_mouse	rs232_mouse_hle_wheel	no
isa3:comat:serport1	rotatable_mouse	rs232_mouse_hle_rotatable	no
isa3:comat:serport1	logitech_mouse	rs232_mouse_hle_logitech	no
isa3:comat:serport1	microsoft_mouse	rs232_mouse_hle_msft	no
isa4	hpblp	hpblp	no
isa4	lrk331	lrk331	no
isa4	omti8621	omti8621isa	no
isa4	dc820b	dc820b	no
isa4	dc320e	dc320e	no
isa4	dc320b	dc320b	no
isa4	ultra12f32	ultra12f32	no
isa4	ex1280	ex1280	no
isa4	bt542b	bt542b	no
isa4	ev346	ev346	no
isa4	wd1007a	wd1007a	no
isa4	np600a3	np600a3	no
isa4	bt542bh	bt542bh	no
isa4	3c505	3c505	no
isa4	wd90c33_zz	wd90c33_zz	no
isa4	wd90c31a_lr	wd90c31a_lr	no
isa4	wd90c30_lr	wd90c30_lr	no
isa4	dc820	dc820	no
isa4	ultra14f	ultra14f	no
isa4	ultra12f	ultra12f	no
isa4	wd90c11_lr	wd90c11_lr	no
isa4	svga_et4kw32i	et4kw32i	no
isa4	sb16_lle	sb16	no
isa4	svga_et4k	et4000	no
isa4	mcd	mcd_isa	no
isa4	pvga1a_jk	pvga1a_jk	no
isa4	pvga1a	pvga1a	no
isa4	pgc	isa_ibm_pgc	no
isa4	pcmidi	isa_pcmidi	no
isa4	3c503	el2_3c503	no
isa4	svga_s3	s3_764	no
isa4	vga	ibm_vga	no
isa4	ibm_mfc	ibm_mfc	no
isa4	cga_cportiii	cga_cportiii	no
isa4	chessmdr	isa_chessmdr	no
isa4	gblaster	isa_gblaster	no
isa4	wd90c00_jk	wd90c00_jk	no
isa4	acb2072	acb2072	no
isa4	3xtwin	3xtwin	no
isa4	sblaster1_0	isa_sblaster1_0	no
isa4	mpu401	isa_mpu401	no
isa4	sad8852	sad8852	no
isa4	fdc344	fdc344	no
isa4	adlib	isa_adlib	no
isa4	side116	side116	no
isa4	cga	cga	no
isa4	comat	isa_com_at	no
isa4	num9rev	number_9_rev	no
isa4	wd90c90_jk	wd90c90_jk	no
isa4	fdc	isa8_fdc_at	no
isa4	stereo_fx	stereo_fx	no
isa4	bt545s	bt545s	no
isa4	mda	isa_ibm_mda	no
isa4	lpt	isa_lpt	no
isa4	ega	ega	no
isa4	aha1542b	aha1542b	no
isa4	wd90c31a_zs	wd90c31a_zs	no
isa4	fdcmag	fdcmag	no
isa4	sblaster1_5	isa_sblaster1_5	no
isa4	wd90c31_lr	wd90c31_lr	no
isa4	hercules	isa_hercules	no
isa4	fdcsmc	isa8_fdc_smc	no
isa4	jc1310	jc1310	no
isa4	dectalk	dectalk_isa	no
isa4	aha1542cp	aha1542cp	no
isa4	prose4k1	isa_prose4001	no
isa4	pds	isa_pds	no
isa4	wyse700	wyse700	no
isa4	lba_enhancer	lba_enhancer	no
isa4	chessmsr	isa_chessmsr	no
isa4	epc_mda	isa_epc_mda	no
isa4	ultra24f	ultra24f	no
isa4	finalchs	isa_finalchs	no
isa4	epc_twib	eistwib	no
isa4	com	isa_com	no
isa4	babyblue2	isa_bblue2	no
isa4	gus	isa_gus	no
isa4	svga_et4k_kasan16	et4000_kasan16	no
isa4	ne1000	ne1000	no
isa4	opus108pm	opus108pm	no
isa4	ibm_speech	isa_ibm_speech	no
isa4	ide	isa_ide	yes
isa4	ssi2001	ssi2001	no
isa4	ne2000	ne2000	no
isa4	mach64	mach64isa	no
isa4	aha1742a	aha1742a	no
isa4	tvga9000	tvga9000	no
isa4	hdc	isa_hdc	no
isa4	aha1542a	aha1542a	no
isa4	aha1542c	aha1542c	no
isa4	aha1542cf	aha1542cf	no
isa4	dcb	novell_dcb	no
isa4	sblaster_16	isa_sblaster_16	no
isa4	svga_dm	dm_clgd5430	no
isa4	gfxultrap	gfxultrap	no
isa4	aha1740	aha1740	no
isa4	clgd542x	clgd542x	no
isa4	gfxultra	gfxultra	no
isa4:ide:ide:0	px320a	px320a	no
isa4:ide:ide:0	zip100	zip100_ide	no
isa4:ide:ide:0	cr589	cr589	no
isa4:ide:ide:0	cp2024	cp2024	no
isa4:ide:ide:0	xm3301	xm3301	no
isa4:ide:ide:0	cf	atacf	no
isa4:ide:ide:0	cdrom	cdrom	no
isa4:ide:ide:0	hdd	idehd	yes
isa4:ide:ide:1	px320a	px320a	no
isa4:ide:ide:1	zip100	zip100_ide	no
isa4:ide:ide:1	cr589	cr589	no
isa4:ide:ide:1	cp2024	cp2024	no
isa4:ide:ide:1	xm3301	xm3301	no
isa4:ide:ide:1	cf	atacf	no
isa4:ide:ide:1	cdrom	cdrom	no
isa4:ide:ide:1	hdd	idehd	no
kbd	g80_1500	g80_1500	no
kbd	pcat101	kb_pcat101	no
kbd	pcat	kb_pcat84	yes
kbd	ms_naturl	kb_ms_natural	no
kbd	3270pc	kb_3270pc	no
kbd	keytronc_pc3270	keytronic_pc3270_at	no

configuration

CRT Adapter Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
CRT Adapter Switch	mb:keybc:P1	64

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Monochrome Display Adapter	64	no
Color Graphics Adapter	0	yes

Key Lock

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key Lock	mb:keybc:P1	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

dipswitch

Display Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Type	isa1:ega:config	15

value

name	value	default
0000 - MDA PRIMARY, EGA COLOR, 40x25	0	no
0001 - MDA PRIMARY, EGA COLOR, 80x25	8	no
0010 - MDA PRIMARY, EGA HI RES EMULATE (SAME AS 0001)	4	no
0011 - MDA PRIMARY, EGA HI RES ENHANCED	12	no
0100 - CGA 40 PRIMARY, EGA MONOCHROME	2	no
0101 - CGA 80 PRIMARY, EGA MONOCHROME	10	no
0110 - MDA SECONDARY, EGA COLOR, 40x25	6	no
0111 - MDA SECONDARY, EGA COLOR, 80x25	14	no
1000 - MDA SECONDARY, EGA HI RES EMULATE (SAME AS 0111)	1	no
1001 - MDA SECONDARY, EGA HI RES ENHANCED	9	yes
1010 - COLOR 40 SECONDARY, EGA	5	no
1011 - COLOR 80 SECONDARY, EGA	13	no
1100 - RESERVED	3	no
1101 - RESERVED	11	no
1110 - RESERVED	7	no
1111 - RESERVED	15	no

IDE Configuration

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
IDE Configuration	isa4:ide:DSW	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Primary	0	yes
Secondary	1	no
